Delta UPS RT-Series
Caution
Product Description
The Amplon RT 1-3kVA series is an online double-conversion UPS providing consistent sine-wave power to your critical equipment. It supports personal computers, networks, servers, VoIP and telecommunications.The Amplon RT 1-3kVA series features an output power factor of 0.9 and best-in-class AC-AC efficiency up to 94% resulting in greater energy savings. Optional external battery pack can be connected for longer backup time to keep your applications safe and running smoothly at all times.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Delta UPS Solutions Catalog Click here
Product Introduction
Availability
• True online double-conversion topology and zero transfer time to battery ensure high reliability
• Watch-dog design of DSP (Digital Signal Processor) increases reliability
• Cold-start capability provides temporary battery power when the utility power is out
• Fan failure detection alerts users to failed fans
• Hot swappable batteries ensure continuous operation even when batteries are being replaced
• Optional external battery pack for easy scaling of longer backup time
• Operation temperature tolerance up to 50°C ensures critical loads' continuity
Flexibility
• Load segment control allows less-critical loads to be disconnected during blackouts and saves battery runtime for important loads• Convertible rack and tower configuration in 2U size cabinet
• Excellent local communications through rotatable LCD display
• Intelligent management software connectivity via RS232 or USB port

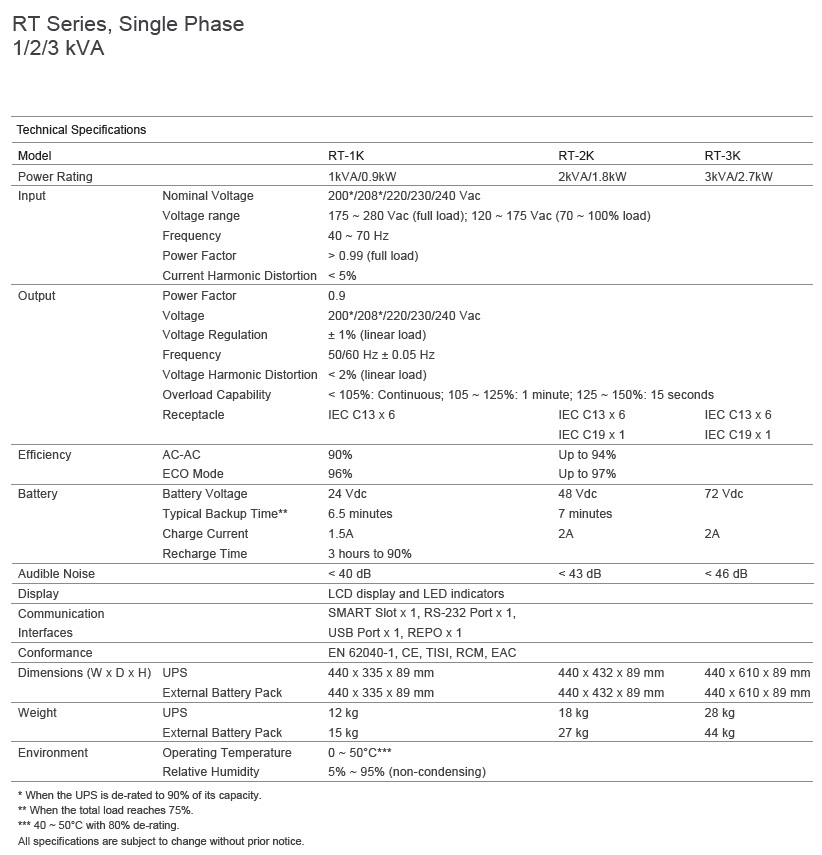

Specifications
• High output power factor 0.9 provides more real power to critical loads• High input power factor (pf > 0.99) and low harmonic distortion (iTHD < 5%) save upstream investment
• Up to 94% AC-AC efficiency and 97% efficiency in ECO mode result in marked energy cost savings
• Wide input voltage range reduces the chance of using the battery and extends battery life
• Intelligent battery management sustains battery life and performance
• Fan speed control by load level maximizes efficiency and reduces audible noise
