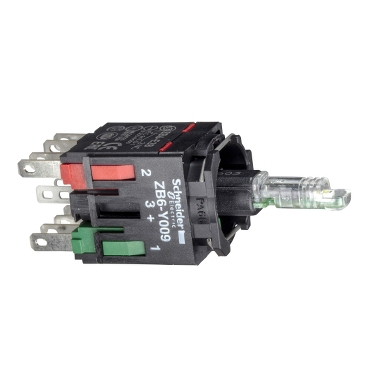

Light Block With Body/Fixing Collar With Integral LED
Brand :
Schneider Electric
Caution
Product Description
Light Block With Body/Fixing Collar With Integral LED 12...24V 1NO
| Product Code | Range of product | Product or component type | Device short name | [Us] rated supply voltage | Vibration resistance | Shock resistance | Electrical durability | Net weight | Standards | Ambient air temperature for operation | Ambient air temperature for storage | Product certifications | Sustainable offer status | EU RoHS Directive | Mercury free | RoHS exemption information | China RoHS Regulation | Environmental Disclosure | Circularity Profile | WEEE | Supply voltage limits | Resistance to electrostatic discharge | REACH Regulation | Warranty | Current consumption | Signalling type | Sale per indivisible quantity | Bulb base | [Ui] rated insulation voltage | Light source | Contacts type and composition | Connections - terminals | Terminals description ISO n°1 | Short-circuit protection | [Uimp] rated impulse withstand voltage | Contact operation | Positive opening | Protective treatment | Operating travel | Electrical shock protection class | CAD overall width | CAD overall height | CAD overall depth | Contacts material | Fixing collar material | Contacts usage | [Ie] rated operational current | Electrical reliability | Surge withstand | Resistance to fast transients | Resistance to electromagnetic fields | Electromagnetic emission | Light source colour | Operating force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ZB6ZB11B | Harmony XB6 | Complete body for illuminated push-button | ZB6 | 12...24 V AC/DC | +/- 3 mm (f= 2 to 500 Hz) conforming to IEC 60068-2-6 5 gn (f= 2 to 500 Hz) conforming to IEC 60068-2-6 | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C | 0.006 kg | CSA C22.2 No 14 EN/IEC 60947-5-1 EN/IEC 60947-1 JIS C 4520 EN/IEC 60947-5-5 UL 508 JIS C 852 | -25 to 70 °C | -40 to 70 °C | CSA CCC UL GOST | Green Premium product | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins | 6 to 30 V AC/DC | 6 kV on contact (on metal parts) conforming to IEC 61000-2-6 8 kV in free air (in insulating parts) conforming to IEC 61000-2-6 | REACH Declaration | 18 months | 15 mA | Steady | 1 | Integral LED | 250 V (pollution degree 3) conforming to EN/IEC 60947-1 | LED | 1 NO | Faston connector, connection size: 2.8 x 0.5 mm | (13-14) NO | 6 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 | EN/IEC 60947-1 4 kV | Slow-break | With conforming to EN/IEC 60947-5-1 appendix K | TC | 2 mm (NO changing electrical state) 4.3 mm (total travel) | Class II conforming to IEC 61140 | 24 mm | 18 mm | 51 mm | Silver alloy (Ag/Ni) | Plastic | Standard | 3 A at 120 V, AC-15, B300 1.5 A at 240 V, AC-15, B300 0.1 A at 250 V, DC-13, R300 0.22 A at 125 V, DC-13, R300 | ƒ© = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to EN/IEC 60947-5-4 | 1 kV direct contact conforming to IEC 61000-4-5 2 kV in free air conforming to IEC 61000-4-5 | 2 kV conforming to IEC 61000-4-4 | 10 V/m conforming to IEC 61000-4-3 | Class B conforming to IEC 55011 | White | 1.6 N NO changing electrical state |
| ZB6ZB31B | Harmony XB6 | Complete body for illuminated push-button | ZB6 | 12...24 V AC/DC | +/- 3 mm (f= 2 to 500 Hz) conforming to IEC 60068-2-6 5 gn (f= 2 to 500 Hz) conforming to IEC 60068-2-6 | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C | 0.006 kg | UL 508 EN/IEC 60947-5-5 JIS C 4520 EN/IEC 60947-1 JIS C 852 EN/IEC 60947-5-1 CSA C22.2 No 14 | -25 to 70 °C | -40 to 70 °C | UL CSA GOST CCC | Green Premium product | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins | 6 to 30 V AC/DC | 6 kV on contact (on metal parts) conforming to IEC 61000-2-6 8 kV in free air (in insulating parts) conforming to IEC 61000-2-6 | REACH Declaration | 18 months | 15 mA | Steady | 1 | Integral LED | 250 V (pollution degree 3) conforming to EN/IEC 60947-1 | LED | 1 NO | Faston connector, connection size: 2.8 x 0.5 mm | (13-14) NO | 6 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 | EN/IEC 60947-1 4 kV | Slow-break | With conforming to EN/IEC 60947-5-1 appendix K | TC | 2 mm (NO changing electrical state) 4.3 mm (total travel) | Class II conforming to IEC 61140 | 24 mm | 18 mm | 51 mm | Silver alloy (Ag/Ni) | Plastic | Standard | 3 A at 120 V, AC-15, B300 1.5 A at 240 V, AC-15, B300 0.1 A at 250 V, DC-13, R300 0.22 A at 125 V, DC-13, R300 | ƒ© = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to EN/IEC 60947-5-4 | 1 kV direct contact conforming to IEC 61000-4-5 2 kV in free air conforming to IEC 61000-4-5 | 2 kV conforming to IEC 61000-4-4 | 10 V/m conforming to IEC 61000-4-3 | Class B conforming to IEC 55011 | Green | 1.6 N NO changing electrical state |
