Head for selector switch Harmony XB5
Brand :
SCHNEIDER
Caution
Product Description

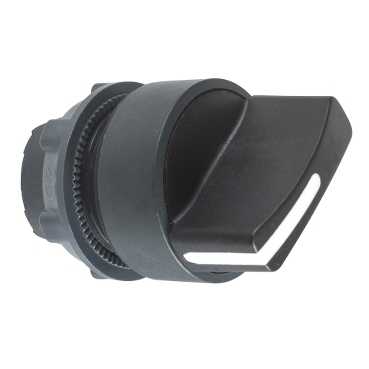

Black Selector Switch Head Ø22 2-Position Spring Return
| Product Code | Range of product | Product or component type | Device short name | Vibration resistance | Shock resistance | Mechanical durability | Net weight | IP degree of protection | NEMA degree of protection | Standards | Ambient air temperature for operation | Ambient air temperature for storage | Product certifications | Sustainable offer status | EU RoHS Directive | Mercury free | RoHS exemption information | China RoHS Regulation | Environmental Disclosure | Circularity Profile | REACH Regulation | REACH free of SVHC | Warranty | Toxic heavy metal free | Sale per indivisible quantity | Overvoltage category | IK degree of protection | Mounting diameter | Bezel material | Protective treatment | Type of operator | CAD overall width | CAD overall height | CAD overall depth | Shape of signaling unit head | Operator profile | Device presentation | Operator position information | Resistance to high pressure washer | Head type | Station name | Electrical composition code |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ZB5AD4 | Harmony XB5 | Head for selector switch | ZB5 | 5 gn (f= 2 to 500 Hz) conforming to IEC 60068-2-6 | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 | 1000000 cycles | 0.02 kg | IP67 conforming to IEC 60529 IP69 conforming to IEC 60529 IP69K | NEMA 13 NEMA 4X | UL 508 EN/IEC 60947-1 EN/IEC 60947-5-4 CSA C22.2 No 14 EN/IEC 60947-5-1 JIS C8201-5-1 JIS C8201-1 | -40 to 70 ℃ | -40 to 70 ℃ | BV DNV CSA RINA GL LROS (Lloyds register of shipping) UL listed | Green Premium product | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | REACH Declaration | Yes | 18 months | Yes | 1 | Class II conforming to IEC 60536 | IK06 conforming to IEC 50102 | 22 mm | Dark grey plastic | TH | Right to left spring return | 29 mm | 29 mm | 46 mm | Round | Black standard handle | Basic element | 2 positions 90° | 7000000 Pa at 55 ℃, distance : 0.1 m | Standard | XALD 1...5 cut-outs XALK 2...5 cut-outs | C3 for <6 contacts using single blocks in front mounting C4 for <6 contacts using single and double blocks in front mounting C5 for <5 contacts using single blocks in front mounting C6 for <5 contacts using single and double blocks in front mounting C7 for <4 contacts using single blocks in front mounting C8 for <4 contacts using single and double blocks in front mounting C11 for <3 contacts using single blocks in front mounting C15 for <1 contacts using single blocks in front mounting SF1 for <3 contacts using single blocks in front mounting SR1 for <3 contacts using single blocks in rear mounting |
