E-Stop Rope Pull Switch XY2CE
Brand :
Schneider Electric
Caution
Product Description

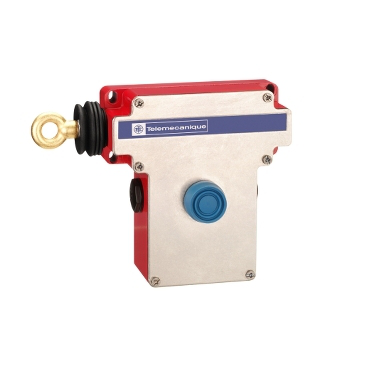

E-Stop Rope Pull Switch XY2CE, Lh Side -1NC+1NO, Booted Pushbutton
| Product Code | Range of product | Product or component type | Device short name | Vibration resistance | Shock resistance | Mechanical durability | Net weight | IP degree of protection | Standards | Ambient air temperature for operation | Ambient air temperature for storage | Product certifications | Sustainable offer status | EU RoHS Directive | Mercury free | RoHS exemption information | Environmental Disclosure | Local signalling | REACH Regulation | Warranty | Tightening torque | Marking | Compatibility code | [Ui] rated insulation voltage | Overvoltage category | Contacts type and composition | Connections - terminals | Terminals description ISO n°1 | [Ithe] conventional enclosed thermal current | Short-circuit protection | mUimpn rated impulse withstand voltage | Contact operation | Positive opening | Protective treatment | Safety level | Safety reliability data | [Ie] rated operational current | Maximum resistance across terminal | Reset | Housing colour | Number of cables | Trigger cable maximum length | Body material | Cover material | Trigger cable anchor point | Cable entry number | Distance between cable supports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XY2CE2A250 | Preventa XY2 | Latching emergency stop rope pull switch | XY2CE | 10 gn (f= 10 to 300 Hz) conforming to EN/IEC 60068-2-6 | 50 gn 11 ms conforming to EN/IEC 60068-2-27 | 60000 cycles | 1.45 kg | IP66 conforming to IEC 60529 | EN/IEC 60947-5-1 UL 508 CSA C22.2 No 14 Work equipment directive 2009/104/EC EN/IEC 60204-1 EN/ISO 13850 Machinery directive 2006/42/EC EN/IEC 60947-5-5 | -25 to 70 ℃ | -40 to 70 ℃ | UL category NISD emergency stop devices CSA CCC | Green Premium product | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | Yes | Yes | Product Environmental Profile | Without pilot light | REACH Declaration | 18 months | 0.8 to 1.2 N.m | CE | XY2CE | 500V (pollution degree 3) conforming to EN/IEC 60947-1 300V conforming to UL 508 300V conforming to CSA C22.2 No 14 | Class I conforming to EN/IEC 61140 Class I conforming to NF C 20-030 | 1 NC + 1 NO | Screw clamp terminal, 1 x 0.5...2 x 1.5 mm2 | (21-22)NC (13-14)NO | 10?A | 10A cartridge fuse type gG conforming to EN/IEC 60269 | 6kV EN/IEC 60947-1 | Slow-break | With conforming to EN/IEC 60947-5-1 | TC | Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1 Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1 Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508 | B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear | 3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 appendix A 0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A | 25 MOhm conforming to EN/IEC 60255-7 category 3 25 MOhm conforming to NF C 93-050 method A | By booted push-button | Red RAL 3000 | 1 | 70 m | Zamak | Stainless steel | LH side | 3 plain hole for Pg 13.5 or ISO M20 cable gland | 5 m |
