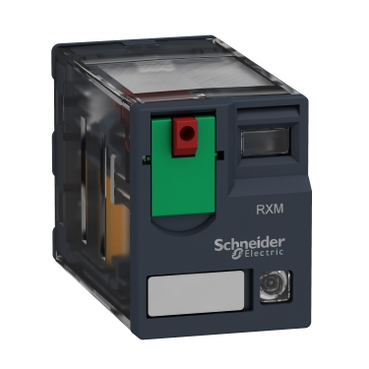

Zelio RXM Miniature Plug-In Relay
Brand :
Schneider Electric
Caution
Product Description
- Zelio RXM relays for automation control from Schneider electric.
- RXM industrial relays bring features for easy and improved control of simple and complex automation systems.
- Wider choice of contacts (2, 3, and 4 CO).
- Broad range of control circuit voltages and different socket types.
- One-step lockable test button.
- Mechanical indicator for contact status.
- 64% less wiring time with Push-in Sockets (no screwdriver required).
- Sockets for both DIN rail and panel mounting, time-saving bus jumper.
| Product Code | Range of product | Product or component type | Device short name | Vibration resistance | Shock resistance | Maximum switching voltage | Electrical durability | Mechanical durability | Net weight | IP degree of protection | Pollution degree | Standards | Ambient air temperature for operation | Ambient air temperature for storage | Product certifications | Sustainable offer status | EU RoHS Directive | Mercury free | RoHS exemption information | China RoHS Regulation | Environmental Disclosure | WEEE | REACH Regulation | REACH free of SVHC | Warranty | mUcn control circuit voltage | Operating position | Toxic heavy metal free | mUin rated insulation voltage | Contacts type and composition | [Ithe] conventional enclosed thermal current | [Uimp] rated impulse withstand voltage | Maximum switching capacity | Contacts material | Device presentation | [Ie] rated operational current | Status LED | Control type | Dielectric strength | Series name | Rated operational voltage limits | Shape of pin | Minimum switching capacity | Operating rate | Protection category | Test levels | Drop-out voltage threshold | Utilisation coefficient | Resistive rated load | Operate time | Release time | Average coil resistance | CAD overall height | CAD overall depth | Safety reliability data | Average coil consumption in W | Average coil consumption in VA | Average consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RXM2AB2P7 | Zelio Relay | Plug-in relay | RXM | 3 gn, amplitude = +/- 1 mm (f = 10 to 150 Hz) 5 cycles in operation 5 gn, amplitude = +/- 1 mm (f = 10 to 150 Hz) 5 cycles not operating | 10 gn for in operation 30 gn for not operating | 250 V conforming to IEC | 100000 cycles for resistive load | 10000000 cycles | 0.096 kg | IP40 conforming to EN/IEC 60529 | 3 | EN/IEC 61810-1 UL 508 CSA C22.2 No 14 | -40 to 55 °C | -40 to 85 °C | CSA RoHS GOST UL CE REACH Lloyd's | Green Premium product | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins | REACH Declaration | Yes | 18 months | 230 V AC 50/60 Hz | Any position | Yes | 250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL | 2 C/O | 12 A at -40 to 55 °C | 4 kV during 1.2/50 µs | 3000 VA/336 W | AgNi | Complete product | 12 A at 28 V (DC) NO conforming to IEC 12 A at 250 V (AC) NO conforming to IEC 6 A at 28 V (DC) NC conforming to IEC 6 A at 250 V (AC) NC conforming to IEC 12 A at 28 V (DC) conforming to UL 12 A at 277 V (AC) conforming to UL | With | Lockable test button | 1300 V AC between contacts with micro disconnection 2000 V AC between coil and contact with reinforced 2000 V AC between poles with basic | Miniature | 184...253 V AC | Flat | 170 mW at 10 mA, 17 V | <= 1200 cycles/hour under load <= 18000 cycles/hour no-load | RT I | Level A group mounting | >= 0.15 Uc | 20 % | 12 A at 250 V AC 12 A at 28 V DC | 20 ms | 20 ms | 15000 Ohm at 20 °C +/- 15 % | 82.8 mm | 80.35 mm | B10d = 100000 | - | 1.2 at 60 Hz | 1.2 VA at 60 Hz |
| RXM4AB2ED | Zelio Relay | Plug-in relay | RXM | 3 gn, amplitude = +/- 1 mm (f = 10 to 150 Hz) 5 cycles in operation 5 gn, amplitude = +/- 1 mm (f = 10 to 150 Hz) 5 cycles not operating | 10 gn for in operation 30 gn for not operating | 250 V conforming to IEC | 100000 cycles for resistive load | 10000000 cycles | 0.037 kg | IP40 conforming to EN/IEC 60529 | 2 | CSA C22.2 No 14 UL 508 EN/IEC 61810-1 | -40 to 55 °C | -40 to 85 °C | GOST RoHS Lloyd's UL REACH CE CSA | Green Premium product | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins | REACH Declaration | Yes | 18 months | 48 V DC | Any position | Yes | 250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL | 4 C/O | 6 A at -40 to 55 °C | 2.5 kV during 1.2/50 µs | 1500 VA/168 W | AgNi | Complete product | 3 A at 28 V (DC) NC conforming to IEC 3 A at 250 V (AC) NC conforming to IEC 6 A at 28 V (DC) NO conforming to IEC 6 A at 250 V (AC) NO conforming to IEC 6 A at 277 V (AC)conforming to UL 8 A at 30 V (DC) conforming to UL | With | Lockable test button | 1300 V AC between contacts with micro disconnection 2000 V AC between coil and contact with reinforced 2000 V AC between poles with basic | Miniature | 38.4...52.8 V DC | Flat | 170 mW at 10 mA, 17 V | <= 1200 cycles/hour under load <= 18000 cycles/hour no-load | RT I | Level A group mounting | >= 0.1 Uc | 20 % | 6 A at 250 V AC 6 A at 28 V DC | 20 ms | 20 ms | 2560 Ohm at 20 °C +/- 10 % | 79 mm | 78.45 mm | B10d = 100000 | 0.9 W | - | - |
| RXM4GB2BD | Zelio Relay | Plug-in relay | RXM | 3 gn, amplitude = +/- 1 mm (f = 10 to 150 Hz) 5 cycles in operation 5 gn, amplitude = +/- 1 mm (f = 10 to 150 Hz) 5 cycles not operating | 10 gn for in operation 30 gn for not operating | 250 V conforming to IEC | 100000 cycles for resistive load depending on mounting position and working environment | 10000000 cycles | 0.037 kg | IP40 conforming to EN/IEC 60529 | 2 | EN/IEC 61810-1 CSA C22.2 No 14 UL 508 | -40 to 55 °C | -40 to 85 °C | RoHS Lloyd's CSA CE REACH UL GOST | Green Premium product | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins | REACH Declaration | Yes | 18 months | 24 V DC | Any position | Yes | 250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL | 4 C/O | 3 A at -40 to 55 °C | 2.5 kV during 1.2/50 µs | 750 VA/84 W | Gold plated bifurcated silver | Complete product | 2 A at 28 V (DC) NO conforming to IEC 2 A at 250 V (AC) NO conforming to IEC 1 A at 28 V (DC) NC conforming to IEC 1 A at 250 V (AC) NC conforming to IEC 3 A at 28 V (DC) conforming to UL 3 A at 277 V (AC) conforming to UL | With | Lockable test button | 1300 V AC between contacts with micro disconnection 2000 V AC between coil and contact with reinforced 2000 V AC between poles with basic | Miniature | 19.2...26.4 V DC | Flat | 15 mW at 3 mA, 5 V | <= 1200 cycles/hour under load <= 18000 cycles/hour no-load | RT I | Level A group mounting | >= 0.1 Uc | 20 % | 3 A at 250 V AC 3 A at 28 V DC | 20 ms | 20 ms | 650 Ohm at 20 °C +/- 10 % | - | - | - | 0.9 W | - | - |
