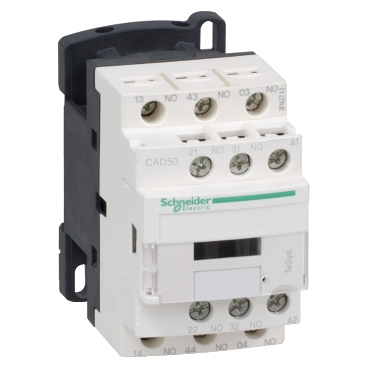

TeSys D Control Relay 5NO
Brand :
Schneider Electric
Caution
Product Description
- TeSys D control relays (CAD) for AC and DC control circuits from schneider electric.
- Number of contacts: 5 contacts (5 NO)
- TeSys Deca control relays and add-on blocks
- Simultaneous action between contacts
- Various relay coil voltages: A.C, D.C., or low consumption
- Instantaneous contacts on the control relays
- Instantaneous and time delay auxiliary contact blocks.
- Wide range of operating temperature: - 40°C – 70°C
- Conforming to IEC60947-5-1, N-FC63-140, VDE0660, BS4794, EN60947-5, UL, CSA standard.
| Product Code | Product or component type | Device short name | Mechanical durability | Width | Height | Depth | Net weight | IP degree of protection | Standards | Ambient air temperature for operation | Ambient air temperature for storage | Product certifications | Sustainable offer status | EU RoHS Directive | Mercury free | RoHS exemption information | China RoHS Regulation | Environmental Disclosure | Circularity Profile | WEEE | Operating altitude | REACH Regulation | REACH free of SVHC | Warranty | Utilisation category | [Uc] control circuit voltage | Tightening torque | Minimum switching current | Range | [Ue] rated operational voltage | [Ui] rated insulation voltage | [Ith] conventional free air thermal current | Minimum switching voltage | Connections - terminals | Maximum operating rate | [Uimp] rated impulse withstand voltage | Protective treatment | Product name | Insulation resistance | Mounting support | Pole contact composition | Irms rated making capacity | [Icw] rated short-time withstand current | Non-overlap time | Contactor application | Control circuit type | Associated fuse rating | Control circuit voltage limits | Operating time | Mechanical robustness | Inrush power in VA | Hold-in power consumption in VA | Hold-in power consumption in W | Time constant | Inrush power in W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CAD50B7 | Control relay | CAD | 30 Mcycles | 45 mm | 77 mm | 84 mm | 0.58 kg | IP2x front face conforming to VDE 0106 | BS 4794 EN 60947-5 IEC 60947-5-1 NF C 63-140 VDE 0660 | -40 to 70 °C | -60 to 80 °C | UL CSA | Green Premium product | Compliant EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins | 3000 m without derating | REACH Declaration | Yes | 18 months | AC-15 DC-13 AC-14 | 24 V AC 50/60 Hz | 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm | 5 mA | TeSys | <= 690 V AC 25...400 Hz | 600 V UL certified 600 V CSA certified 690 V conforming to IEC 60947-5-1 | 10 A (at 60 °C) | 17 V | Screw clamp terminals 1 cable(s) 1 to 4 mm2 flexible without cable end Screw clamp terminals 2 cable(s) 1 to 4 mm2 flexible without cable end Screw clamp terminals 1 cable(s) 1 to 4 mm2 flexible with cable end Screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible with cable end Screw clamp terminals 1 cable(s) 1 to 4 mm2 solid without cable end Screw clamp terminals 2 cable(s) 1 to 4 mm2 solid without cable end | 180 cyc/mn | 6 kV conforming to IEC 60947 | TH conforming to IEC 60068 | TeSys CAD | > 10 MOhm | Rail Plate | 5 NO | 140 A AC conforming to IEC 60947-5-1 250 A DC conforming to IEC 60947-5-1 | 100 A - 1 s 120 A - 500 ms 140 A - 100 ms | 1.5 ms on energisation between NC and NO contact 1.5 ms on de-energisation between NC and NO contact | Control circuit | AC at 50/60 Hz | 10 A gG conforming to IEC 60947-5-1 | Operational: 0.8...1.1 Uc at 50 Hz Operational: 0.85...1.1 Uc at 60 Hz Drop-out: 0.3...0.6 Uc | 12...22 ms coil energisation and NO closing 4...12 ms coil de-energisation and NO opening | Shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 | 70 VA 50 Hz (at 20 °C) | 8 VA 50 Hz (at 20 °C) | - | - | - |
| CAD50FD | Control relay | CAD | 30 Mcycles | 45 mm | 77 mm | 93 mm | 0.58 kg | IP2x front face conforming to VDE 0106 | BS 4794 EN 60947-5 IEC 60947-5-1 NF C 63-140 VDE 0660 | -40 to 70 °C | -60 to 80 °C | CSA UL | Green Premium product | Compliant EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins | 3000 m without derating | REACH Declaration | Yes | 18 months | AC-15 AC-14 DC-13 | 110 V DC | 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm | 5 mA | TeSys | <= 690 V AC 25...400 Hz | 600 V UL certified 600 V CSA certified 690 V conforming to IEC 60947-5-1 | 10 A (at 60 °C) | 17 V | Screw clamp terminals 1 cable(s) 1 to 4 mm2 flexible without cable end Screw clamp terminals 2 cable(s) 1 to 4 mm2 flexible without cable end Screw clamp terminals 1 cable(s) 1 to 4 mm2 flexible with cable end Screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible with cable end Screw clamp terminals 1 cable(s) 1 to 4 mm2 solid without cable end Screw clamp terminals 2 cable(s) 1 to 4 mm2 solid without cable end | 180 cyc/mn | 6 kV conforming to IEC 60947 | TH conforming to IEC 60068 | TeSys CAD | > 10 MOhm | Rail Plate | 5 NO | 140 A AC conforming to IEC 60947-5-1 250 A DC conforming to IEC 60947-5-1 | 100 A - 1 s 120 A - 500 ms 140 A - 100 ms | 1.5 ms on energisation between NC and NO contact 1.5 ms on de-energisation between NC and NO contact | Control circuit | DC standard | 10 A gG conforming to IEC 60947-5-1 | Operational: 0.7...1.25 Uc Drop-out: 0.1...0.25 Uc | 53...72 ms coil energisation and NO closing 16...24 ms coil de-energisation and NO opening | Shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 | - | - | 5.4 W at 20 °C | 28 ms | 5.4 W (at 20 °C) |
| CAD50M7 | Control relay | CAD | 30 Mcycles | 45 mm | 77 mm | 84 mm | 0.58 kg | IP2x front face conforming to VDE 0106 | BS 4794 EN 60947-5 IEC 60947-5-1 NF C 63-140 VDE 0660 | -40 to 70 °C | -60 to 80 °C | UL CSA | Green Premium product | Compliant EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins | 3000 m without derating | REACH Declaration | Yes | 18 months | AC-15 AC-14 DC-13 | 220 V AC 50/60 Hz | 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm | 5 mA | TeSys | <= 690 V AC 25...400 Hz | 600 V UL certified 600 V CSA certified 690 V conforming to IEC 60947-5-1 | 10 A (at 60 °C) | 17 V | Screw clamp terminals 1 cable(s) 1 to 4 mm2 flexible without cable end Screw clamp terminals 2 cable(s) 1 to 4 mm2 flexible without cable end Screw clamp terminals 1 cable(s) 1 to 4 mm2 flexible with cable end Screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible with cable end Screw clamp terminals 1 cable(s) 1 to 4 mm2 solid without cable end Screw clamp terminals 2 cable(s) 1 to 4 mm2 solid without cable end | 180 cyc/mn | 6 kV conforming to IEC 60947 | TH conforming to IEC 60068 | TeSys CAD | > 10 MOhm | Plate Rail | 5 NO | 140 A AC conforming to IEC 60947-5-1 250 A DC conforming to IEC 60947-5-1 | 100 A - 1 s 120 A - 500 ms 140 A - 100 ms | 1.5 ms on energisation between NC and NO contact 1.5 ms on de-energisation between NC and NO contact | Control circuit | AC at 50/60 Hz | 10 A gG conforming to IEC 60947-5-1 | Operational: 0.8...1.1 Uc at 50 Hz Operational: 0.85...1.1 Uc at 60 Hz Drop-out: 0.3...0.6 Uc | 12...22 ms coil energisation and NO closing 4...12 ms coil de-energisation and NO opening | Shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 | 70 VA 50 Hz (at 20 °C) | 8 VA 50 Hz (at 20 °C) | - | - | - |
| CAD50Q7 | Control relay | CAD | 30 Mcycles | 45 mm | 77 mm | 84 mm | 0.58 kg | IP2x front face conforming to VDE 0106 | BS 4794 EN 60947-5 IEC 60947-5-1 NF C 63-140 VDE 0660 | -40 to 70 °C | -60 to 80 °C | UL CSA | Green Premium product | Compliant EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins | 3000 m without derating | REACH Declaration | Yes | 18 months | AC-15 AC-14 DC-13 | 380 V AC 50/60 Hz | 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm | 5 mA | TeSys | <= 690 V AC 25...400 Hz | 600 V UL certified 600 V CSA certified 690 V conforming to IEC 60947-5-1 | 10 A (at 60 °C) | 17 V | Screw clamp terminals 1 cable(s) 1 to 4 mm2 flexible without cable end Screw clamp terminals 2 cable(s) 1 to 4 mm2 flexible without cable end Screw clamp terminals 1 cable(s) 1 to 4 mm2 flexible with cable end Screw clamp terminals 2 cable(s) 1 to 2.5 mm2 flexible with cable end Screw clamp terminals 1 cable(s) 1 to 4 mm2 solid without cable end Screw clamp terminals 2 cable(s) 1 to 4 mm2 solid without cable end | 180 cyc/mn | 6 kV conforming to IEC 60947 | TH conforming to IEC 60068 | TeSys CAD | > 10 MOhm | Rail Plate | 5 NO | 140 A AC conforming to IEC 60947-5-1 250 A DC conforming to IEC 60947-5-1 | 100 A - 1 s 120 A - 500 ms 140 A - 100 ms | 1.5 ms on energisation between NC and NO contact 1.5 ms on de-energisation between NC and NO contact | Control circuit | AC at 50/60 Hz | 10 A gG conforming to IEC 60947-5-1 | Operational: 0.8...1.1 Uc at 50 Hz Operational: 0.85...1.1 Uc at 60 Hz Drop-out: 0.3...0.6 Uc | 12...22 ms coil energisation and NO closing 4...12 ms coil de-energisation and NO opening | Shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 | 70 VA 50 Hz (at 20 °C) | 8 VA 50 Hz (at 20 °C) | - | - | - |
