Soft Starter Altistart 48
Brand :
Schneider Electric
Caution
Product Description

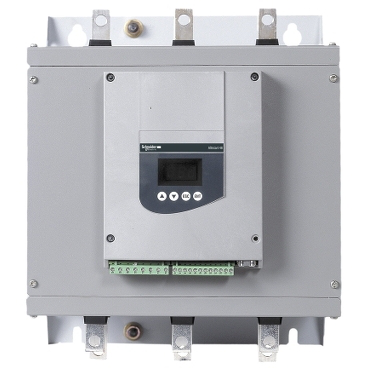

Soft Starter For Asynchronous Motor, ATS48, 285 A, 230..415 V, 75..250 kW
| Product Code | Range of product | Product or component type | Device short name | Product specific application | Vibration resistance | Shock resistance | Maximum switching current | Width | Height | Depth | Net weight | IP degree of protection | Pollution degree | Electromagnetic compatibility | Standards | Relative humidity | Ambient air temperature for operation | Ambient air temperature for storage | Product certifications | Sustainable offer status | EU RoHS Directive | Mercury free | RoHS exemption information | China RoHS Regulation | Environmental Disclosure | Circularity Profile | WEEE | Type of cooling | Operating altitude | REACH Regulation | Warranty | Product destination | Motor power kW | Utilisation category | Type of start | Power dissipation in W | Assembly style | Function available | [Uc] control circuit voltage | Marking | Operating position | Motor power range AC-3 | Motor starter type | Power supply voltage | Icl nominal current | Power supply voltage limits | Power supply frequency | Power supply frequency limits | Device connection | Factory setting current | Control circuit consumption | Discrete output number | Discrete output type | Output absolute accuracy precision | Minimum switching current | Discrete input number | Discrete input type | Discrete input voltage | Discrete input logic | Starting current | Analogue output type | Communication port protocol | Connector type | Communication data link | Physical interface | Transmission rate | Max nodes number | Protection type | Noise level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ATS48C32Q | Altistart 48 | Soft starter | ATS48 | Heavy duty industry and pumps | 1 gn (f= 13 to 200 Hz) conforming to EN/IEC 60068-2-6 1.5 mm (f= 2 to 13 Hz) conforming to EN/IEC 60068-2-6 | 15 gn for 11 ms conforming to EN/IEC 60068-2-27 | Logic output 0.2 A at 30 V DC Relay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5 20 ms Relay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5 20 ms | 320 mm | 380 mm | 265 mm | 18.2 kg | IP00 | Level 3 conforming to IEC 60664-1 | Conducted and radiated emissions level A conforming to IEC 60947-4-2 Damped oscillating waves level 3 conforming to IEC 61000-4-12 Electrostatic discharge level 3 conforming to IEC 61000-4-2 Immunity to electrical transients level 4 conforming to IEC 61000-4-4 Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3 Voltage/current impulse level 3 conforming to IEC 61000-4-5 | EN/IEC 60947-4-2 | 0 to 95 % without condensation or dripping water conforming to EN/IEC 60068-2-3 | 40 to 60 °C (with current derating of 2 % per °C) -10 to 40 °C (without derating) | -25 to 70 °C | C-Tick CCC DNV SEPRO NOM 117 CSA TCF GOST UL | Green Premium product | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | Yes | Yes | China RoHS declaration | Product Environmental Profile | End of Life Information | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins | Forced convection | <= 1000 m without derating > 1000...2000 m with current derating of 2.2 % per additional 100 m | REACH Declaration | 18 months | Asynchronous motors | 75 kW at 230 V connection in the motor supply line for severe applications 90 kW at 230 V connection in the motor supply line for standard applications 132 kW at 230 V connection to the motor delta terminals for severe applications 132 kW at 400 V connection in the motor supply line for severe applications 160 kW at 230 V connection to the motor delta terminals for standard applications 160 kW at 400 V connection in the motor supply line for standard applications 220 kW at 400 V connection to the motor delta terminals for severe applications 250 kW at 400 V connection to the motor delta terminals for standard applications | AC-53A | Start with torque control (current limited to 5 In) | 695 W for severe applications 902 W for standard applications | With heat sink | External bypass (optional) | 220 - 15 % to 415 + 10 %, 50/60 Hz | CE | Vertical +/- 10 degree | 55 to 100 kW at 200 to 240 V 3 phases 110 to 220 kW at 380 to 440 V 3 phases 110 to 220 kW at 200 to 240 V 3 phases 250 to 500 kW at 380 to 440 V 3 phases | Soft starter | 230...415 V - 15...10 % | 320 A for connection in the motor supply line for severe applications 320 A for connection in the motor supply line for standard applications 554 A for connection to the motor delta terminals for severe applications 554 A for connection to the motor delta terminals for standard applications | 195 to 456 V | 50...60 Hz - 5...5 % | 47.5...63 Hz | In the motor supply line To the motor delta terminals | 285 A | 50 W | 2 | (LO1) logic output 0 V common configurable (LO2) logic output 0 V common configurable (R1) relay outputs fault relay NO (R2) relay outputs end of starting relay NO (R3) relay outputs motor powered NO | +/- 5 % | 10 mA at 6 V DC for relay outputs | 5 | PTC, 750 Ohm at 25 °C (Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm | 24 V <= 30 V | Positive logic Stop, Run, LI3, LI4 at State 0: < 5 V and <= 2 mA at State 1: > 11 V, >= 5 mA | 0.4...1.3 Icl adjustable | Current output AO: 0-20 mA or 4-20 mA, impedance <500 Ohm | Modbus | 1 RJ45 | Serial | RS485 multidrop | 4800, 9600 or 19200 bps | 31 | Phase failure: line Thermal protection: motor Thermal protection: starter | 54 dB |
