Altistart 01 Soft Starter For Asynchronous Motor
Brand :
Schneider Electric
Caution
Product Description

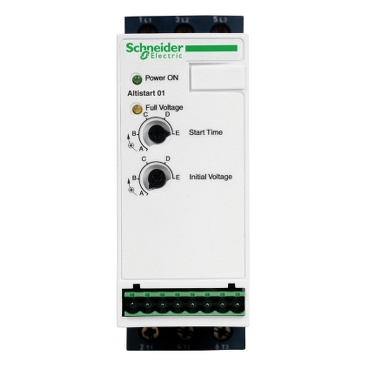

Soft Starter For Asynchronous Motor, ATS01, 12 A, 110..480V, 1.5..5.5 kW
| Product Code | Range of product | Product or component type | Device short name | Product specific application | [Us] rated supply voltage | Vibration resistance | Shock resistance | Width | Height | Depth | Net weight | IP degree of protection | Pollution degree | Electromagnetic compatibility | Standards | Relative humidity | Ambient air temperature for operation | Ambient air temperature for storage | Product certifications | EU RoHS Directive | Mercury free | RoHS exemption information | China RoHS Regulation | Circularity Profile | WEEE | Supply voltage limits | Operating altitude | REACH Regulation | REACH free of SVHC | Warranty | Product destination | Network number of phases | Motor power kW | Motor power hp | IcL starter rating | Utilisation category | Current consumption | Type of start | Power dissipation in W | Assembly style | Function available | Supply frequency | Network frequency | Output voltage | mUcn control circuit voltage | Starting time | Starting torque | Discrete output current | Tightening torque | Electrical connection | Marking | Operating position | Compatibility code | Motor power range AC-3 | Motor starter type | Toxic heavy metal free |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ATS01N112FT | Altistart 01 | Soft starter | ATS01 | Simple machine | 110...480 V - 10...10 % | 1 gn (f= 13 to 150 Hz) conforming to EN/IEC 60068-2-6 1.5 mm peak to peak (f= 3 to 13 Hz) conforming to EN/IEC 60068-2-6 | 15 gn for 11 ms conforming to EN/IEC 60068-2-27 | 45 mm | 124 mm | 131 mm | 0.28 kg | IP20 | 2 conforming to EN/IEC 60947-4-2 | Conducted and radiated emissions level B conforming to CISPR 11 Conducted and radiated emissions level B conforming to IEC 60947-4-2 Damped oscillating waves level 3 conforming to IEC 61000-4-12 Electrostatic discharge level 3 conforming to IEC 61000-4-2 EMC immunity conforming to EN 50082-1 EMC immunity conforming to EN 50082-2 Harmonics conforming to IEC 1000-3-2 Harmonics conforming to IEC 1000-3-4 Immunity to conducted interference caused by radio-electrical fields level 3 conforming to IEC 61000-4-6 Immunity to electrical transients level 4 conforming to IEC 61000-4-4 Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3 Micro-cuts and voltage fluctuation conforming to IEC 61000-4-11 Voltage/current impulse level 3 conforming to IEC 61000-4-5 | EN/IEC 60947-4-2 | 5 to 95 % without condensation or dripping water conforming to EN/IEC 60068-2-3 | -10 to 40 °C (without derating) 40 to 50 °C (with current derating of 2 % per °C) | -25 to 70 °C conforming to EN/IEC 60947-4-2 | B44.1-96/ASME A17.5 for starter wired to the motor delta terminal C-Tick CCC UL CSA GOST | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | Yes | Yes | China RoHS declaration | End of Life Information | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins | 99 to 528 V | <= 1000 m without derating > 1000 m with current derating of 2.2 % per additional 100 m | REACH Declaration | Yes | 18 months | Asynchronous motors | 1 phase | 2.2 kW, 3 phases at 230 V 5.5 kW, 3 phases at 400 V 1.5 kW, 1 phase at 230 V | 3 hp, 3 phases at 230 V 1.5 hp, 3 phases at 210 V 7.5 hp, 3 phases at 460 V | 12 A | AC-53B conforming to EN/IEC 60947-4-2 | 60 A at nominal load | Start with voltage ramp | 1 W at full load and at end of starting 61 W in transient state | With heat sink | Integrated bypass | 50...60 Hz - 5...5 % | 47.5...63 Hz | <= power supply voltage | 110 V AC +/- 10 % at 35 mA 24 V AC/DC +/- 10 % at 30 mA 240 V AC +/- 10 % at 80 mA | 1 s / 100 5 s / 20 Adjustable from 1 to 5 s | 30...80 % of starting torque of motor connected directly on the line supply | 2 A DC-13 3 A AC-15 | 1.9 to 2.5 N.m 0.5 N.m | 4 mm screw clamp terminal - rigid 1 1...10 mm2 AWG 8 power circuit Screw connector - rigid 1 0.5...2.5 mm2 AWG 14 control circuit 4 mm screw clamp terminal - rigid 2 1...6 mm2 AWG 10 power circuit Screw connector - rigid 2 0.5...1 mm2 AWG 17 control circuit Screw connector - flexible with cable end 1 0.5...1.5 mm2 AWG 16 control circuit 4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm2 AWG 8 power circuit Screw connector - flexible without cable end 1 0.5...2.5 mm2 AWG 14 control circuit 4 mm screw clamp terminal - flexible with cable end 2 1...6 mm2 AWG 10 power circuit 4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm2 AWG 10 power circuit Screw connector - flexible without cable end 2 0.5...1.5 mm2 AWG 16 control circuit | CE | Vertical +/- 10 degree | ATS01N1 | 1.1 to 2 kW at 200 to 240 V 1 phase 2.2 to 3 kW at 200 to 240 V 3 phases 4 to 6 kW at 380 to 440 V 3 phases | Soft starter | Yes |
