FRENIC-Ace Series (Global Model)
Brand :
FUJI ELECTRIC
Caution
Product Description

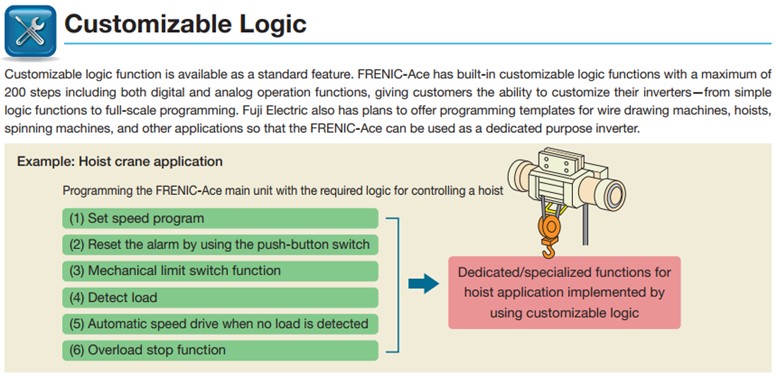

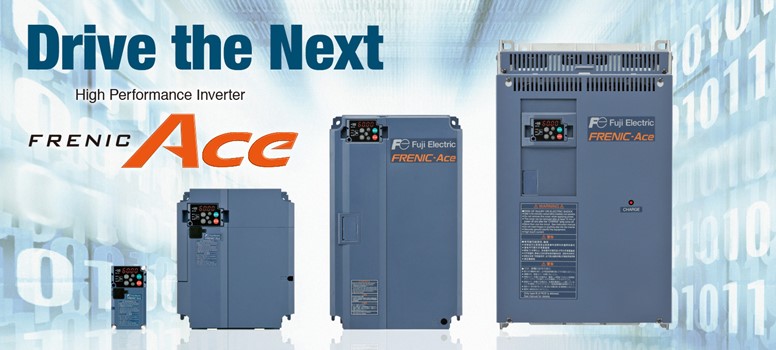

A next-generation inverter to drive a new era. The combination of each type of internal processing function in the inverter can provide the necessary control functions for your mechanical equipment/applications without the need for an external circuit, such as a simple PLC or external relay, timer, etc.
FRENIC Loader available as a free download.
This software (FRENIC-Loader4) is a support software for the Fuji general-purpose inverter series.It provides parameter editing and management, various monitoring functions, and data tracing functions on a PC.
After extracting the ZIP file, run FRENIC-Loader4_V1.3.0.16_setup.exe and follow the steps on the messages to complete the setup.
This software integrates and improves the functions of the existing support software listed below, and is compatible with reading existing files.
・FRENIC-Loader 3.3
・FRENIC-HVAC/AQUA Loader
・FRENIC Visual Customizer
