Magnetic Starters MSO-T Series
Brand :
MITSUBISHI
Caution
Product Description
Mitsubishi electromagnetic switch.
[Features]
· Global support.
· Twin contacts used for auxiliary contact.
· Terminal cover is standard equipment.
· Great satisfaction, condensed into a small unit.
[Applications]
· Convenient for motor start/stop and motor burnout protection.
MS-T Series (Non-Reversible) Specifications

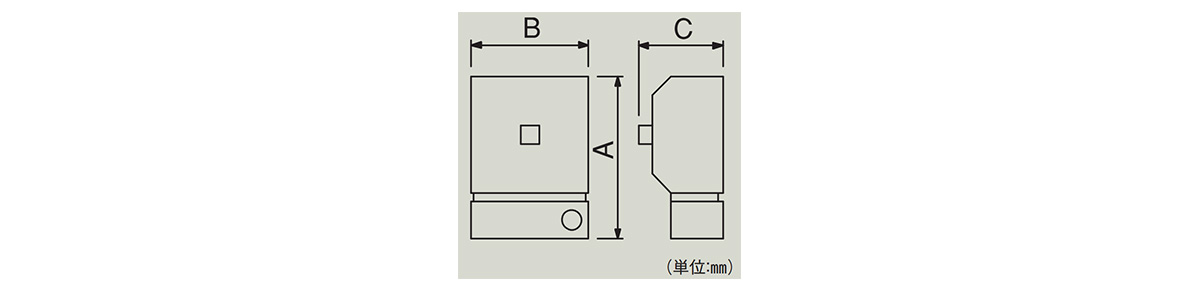

Outline drawing
| Type Name | Non-Reversible | MSO-T10 | MSO-T12 | MSO-T20 | MSO-T21 | MSO-T25 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Capacity (kW) AC-3 Class | 200 To 220 V | 2.2 | 2.7 | 3.7 | 4 | 5.5 | |||||||||||
| 380 To 440 V | 2.7 | 4 | 7.5 | 7.5 | 11 | ||||||||||||
| 500 To 550 V | 2.7 | 5.5 | 7.5 | 7.5 | 11 | ||||||||||||
| Standard Thermal Relay Heater Rating (Nominal) (A) | 0.12 0.35 0.9 2.1 5 | 0.17 0.5 1.3 2.5 6.6 | 0.24 0.7 1.7 3.6 9 | 0.12 0.35 0.9 2.1 5 11 | 0.17 0.5 1.3 2.5 6.6 | 0.24 0.7 1.7 3.6 9 | 0.12 0.35 0.9 2.1 5 11 | 0.17 0.5 1.3 2.5 6.6 15 | 0.24 0.7 1.7 3.6 9 | 0.24 0.7 1.7 3.6 9 | 0.35 0.9 2.1 5 11 | 0.5 1.3 2.5 6.6 15 | 0.24 0.7 1.7 3.6 9 22 | 0.35 0.9 2.1 5 11 | 0.5 1.3 2.5 6.6 15 | ||
| Auxiliary Contact Configuration | Non-Reversible | Standard | 1a | 1a1b | 1a1b | 2a2b | 2a2b | ||||||||||
| Special | 1b | 2a | 2a | - | - | ||||||||||||
| Size (Unit: mm) | Non-Reversible | A | 115 | 115 | 115 | 128 | 128 | ||||||||||
| B | 45 | 45 | 45 | 63 | 63 | ||||||||||||
| C | 79 | 79 (101) | 79 (101) | 82 (109) | 82 | ||||||||||||
- Mountable on IEC 35 mm rail.
- Auxiliary power contactor front clip-on, auxiliary power contactor mounted on side, and surge absorber can be mounted (options).
| Type Name | Non-Reversible | MSO-T35 | MSO-T50 | MSO-T65 | MSO-T80 | MSO-T100 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated Capacity (kW) AC-3 Class | 200 To 220 V | 7.5 | 11 | 15 | 19 | 22 | |||||||||||
| 380 To 440 V | 15 | 22 | 30 | 37 | 45 | ||||||||||||
| 500 To 550 V | 15 | 22 | 30 | 45 | 45 | ||||||||||||
| Standard Type Thermal Relay Heater Rating (Nominal) (A) | 0.24 0.7 1.7 3.6 9 22 | 0.35 0.9 2.1 5 11 29 | 0.5 1.3 2.5 6.6 15 | 0.24 0.7 1.7 3.6 9 22 42 | 0.35 0.9 2.1 5 11 29 | 0.5 1.3 2.5 6.6 15 35 | 15 35 | 22 42 | 29 54 | 15 35 67 | 22 42 | 29 54 | 15 35 67 | 22 42 82 | 29 54 | ||
| Auxiliary Contact Configuration | Non-Reversible | Standard | 2a1b | 2a2b | 2a2b | 2a2b | 2a2b | ||||||||||
| Special | - | - | - | - | - | ||||||||||||
| Size (Unit: mm) | Non-Reversible | A | 157.5 | 158 (160) | 174.5 (176.5) | 196 (206) | |||||||||||
| B | 75 | 90 | 90 | 100 | |||||||||||||
| C | 91 (123) | 106 (133) | 106 (133) | 127 (157) | |||||||||||||
- Mountable on IEC 35 mm rail (excluding T100).
- Auxiliary power contactor front clip-on (excluding T100), auxiliary power contactor mounted on side, and surge absorber can be mounted (excluding T65/80/100) (options).
