VFF Flat Vinyl Power Cord for Heat-Resistant Wiring
Caution
Product Description
- Power cable VFF series '- Flat Vinyl Cord from TANAKA DENSEN.
- Vinyl flat cord made with PVC insulation for the excellent heat-resistant property. Effective in areas where heat-resistant property is required due to temperature increase of wiring inside electrical appliances.
- The overall length of power cable can be selected in 2 sizes, 100 m or 200 m.
- The insulation resistance at normal temperature (20°C) is 5 MΩ·km or more.
- The number core of power cable is 2 cores.

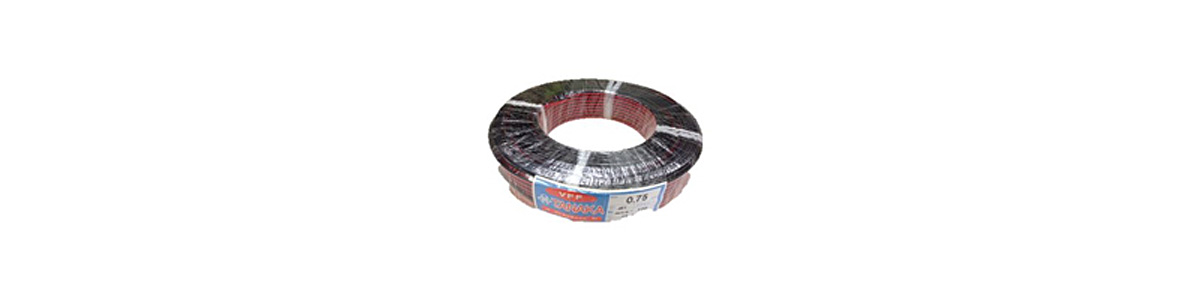

Vinyl flat cord made with PVC insulation for the excellent heat-resistant property
Effective in areas where heat-resistant property is required due to temperature increase of wiring inside electrical appliances.
Product specifications
| Conductor | Vinyl thickness mm | Overall diameter approx. mm | Conductor resistance at 20°C, Ω/km or less | Allowable current (at ambient temperature of 30°C or less) | Approximate weight kg/km | ||||
|---|---|---|---|---|---|---|---|---|---|
| Nominal cross-sectional area mm^2 | Configuration Number of wires / wire diameter mm | Outer diameter mm | Calculated cross-sectional area mm^2 | VFF | H-VFF (USH) | ||||
| ※10.3 | 12/0.18 | 0.7 | 0.3053 | 0.55 | 1.8 × 3.6 | 61.1 | ※23 | ※23.5 | 12 |
| 0.5 | 20/0.18 | 0.9 | 0.5089 | 0.8 | 2.5 × 5.0 | 36.7 | ※25 | ※26 | 22 |
| 0.75 | 30/0.18 | 1.1 | 0.7634 | 0.8 | 2.7 × 5.4 | 24.4 | 7 | 8 | 28 |
| 1.25 | 50/0.18 | 1.5 | 1.272 | 0.8 | 3.1 × 6.2 | 14.7 | 12 | 14 | 40 |
| 2.0 | 37/0.26 | 1.8 | 1.964 | 0.8 | 3.4 × 6.8 | 9.5 | 17 | 20 | 54 |
*1 indicates non-standard, and the allowable current is per Interior Wiring Code of Japan (Unit: A)
*2 indicates manufacturer-calculated values
| Item | Characteristics | |||
|---|---|---|---|---|
| VFF | H-VFF | |||
| Conductor resistance | Below the values in the structure table | |||
| Withstand Voltage | Under water | Shall withstand 1,000 V for 1 min. | ||
| air | Shall withstand 2,000 V for 1 min. | |||
| Spark | Shall withstand 5,000 V for 0.15 sec or longer | |||
| Insulation resistance | At normal temperature | 5 MΩ·km or more (20°C) | ||
| High temperature | 0.01 MΩ·km or more (60°C) | 0.005 MΩ·km or more (75°C) | ||
| Tensile strength | Insulator | Tensile strength | 10 MPa or more | |
| and | ||||
| Elongation | Elongation | 100% or more | 120% or more | |
| Heating resistance | Insulator | Tensile strength | *1 At least 85% of the value before heating | *2 At least 90% of the value before heating |
| Elongation | *1 At least 80% of the value before heating | *2 At least 75% of the value before heating | ||
| Winding heating resistance | No cracks or breaks on the surface | |||
| Cold winding resistance | No cracks or breaks on the surface | |||
| Thermal deformation resistance | Insulator | Thickness reduction rate of 50% or less | Thickness reduction rate of 30% or less | |
| Flame Retardancy | Shall go out spontaneously within 60 seconds | |||
| Bending resistance | Strand break rate of 50% or less | |||
| There shall be no short circuit between lines, and no cracks, breaks or other abnormalities shall occur in the insulator. | ||||
*1 indicates 48 hours heating at 100°C.
*2 indicates 120 hours heating at 120°C.
