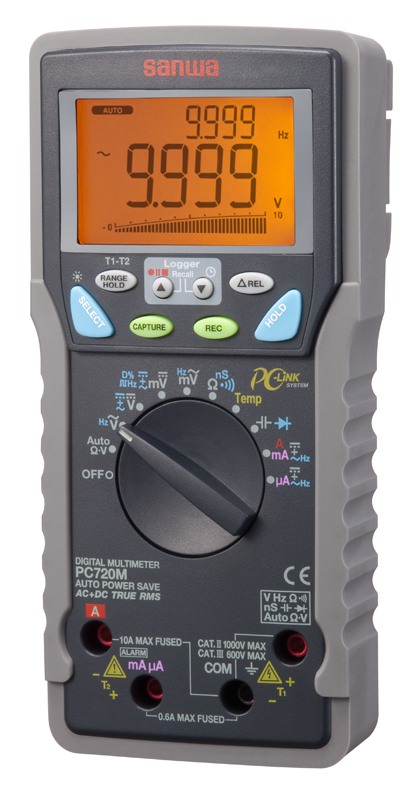

Digital Multi Meter
Caution
Product Description
Logging function for recording each measurement, dual display.
[Features]
· 6,000 and 9,999 count.
· 0.06% full accuracy.
· True RMS measurement (AC).
· Dual display with backlight.
· Fast response bar graph display.
· Low input impedance type ACV/DCV/Ω automatic discrimination function.
· Measuring capacitor capacitance. Note: Not suitable for measuring the capacitance of capacitors with large amounts of leakage current.
· Temperature measurement which can perform 2ch measurement (when using K type temperature sensor). Note: K-AD accessory (sold separately) may be required. K type temperature sensor K-250PCx1 included.
· Frequency measurement (sine wave AC only).
· Logic frequency, duty ratio measurement.
· Conductance measurement.
· MAX/MIN recording function.
· Peak hold (accuracy ±250dgt) 1ms.
· Data hold/range hold.
· Relative value measurement.
· Auto power off (after approximately 30 minutes) can be canceled.
· Alarm for when test lead is improperly inserted into the current terminal.
· Optical link USB interface (optional).
