Flame Retardant Polyflex Cable MLFC Series, 600 V / 1500 V
Brand :
HITACHI CABLE
Caution
- · The finished outer diameter indicated in the filtering conditions is the max value. · Refer to the catalog for tolerances.
Product Description
[Features]
· Excellent heat resistance (110°C) and flame retardance.
· Excellent flexibility.
· Terminals are easily removable.
Flame-Retardant Polyflex Cable MLFC Series 600 V / 1,500 V Structure

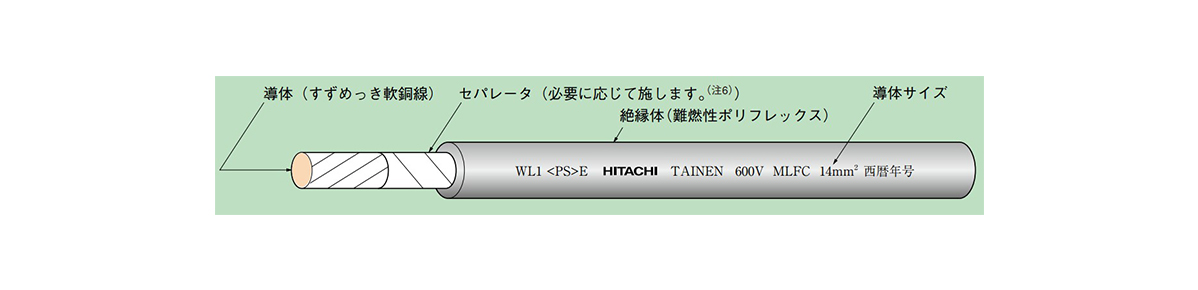

Flame-Retardant Polyflex Cable MLFC Series 600 V / 1,500 V Structural Drawing
Specifications and Dimensions of Flame-Retardant Polyflex Cable MLFC Series 600 V / 1,500 V
600 V
| Conductor | Insulator Thickness (mm) | Finishing outer diameter (mm) | Conductor resistance (20℃) (Ω/km) | Test voltage (V) | Insulation Resistance (20℃) (MΩ·km) | Surface leak resistance (MΩ) | Reference | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal cross-sectional area (mm^2) | Configuration Number of strand / strand diameter (strands/mm) | Outer diameter (Approx.) (mm) | Approximate weight (kg/km) | Standard length of wire (m) | ||||||
| 325 | 37／55／0.45 | 27.0 | 2.9 | 30.8 to 33.2 | 0.0614 | 3500 | 20 | 50 | 3300 | 300 |
| 250 | 37／42／0.45 | 23.6 | 2.9 | 28.0 to 29.6 | 0.0760 | 3000 | 20 | 50 | 2550 | 300 |
| 200 | 37／34／0.45 | 21.2 | 2.9 | 25.1 to 26.9 | 0.0939 | 3000 | 20 | 60 | 2100 | 300 |
| 150 | 27／34／0.45 | 18.7 | 2.3 | 21.7 to 22.7 | 0.129 | 3000 | 20 | 70 | 1500 | 300 |
| 125 | 19／42／0.45 | 16.8 | 2.3 | 20.0 to 22.2 | 0.148 | 3000 | 20 | 70 | 1350 | 300 |
| 100 | 19／34／0.45 | 15.2 | 2.3 | 18.5 to 20.3 | 0.183 | 3000 | 30 | 80 | 1100 | 300 |
| 80 | 19／27／0.45 | 13.5 | 1.8 | 15.8 to 17.6 | 0.230 | 2500 | 30 | 90 | 860 | 300 |
| 60 | 19／20／0.45 | 11.6 | 1.8 | 14.0 to 15.6 | 0.311 | 2500 | 30 | 100 | 650 | 300 |
| 50 | 19／16／0.45 | 10.4 | 1.8 | 12.8 to 14.4 | 0.389 | 2500 | 30 | 100 | 530 | 300 |
| 38 | 7／34／0.45 | 9.1 | 1.4 | 11.0 to 12.4 | 0.496 | 2500 | 40 | 100 | 410 | 100 |
| 30 | 7／27／0.45 | 8.1 | 1.4 | 10.0 to 11.4 | 0.625 | 2200 | 40 | 100 | 330 | 100 |
| 22 | 7／20／0.45 | 7.0 | 1.4 | 8.9 to 10.3 | 0.844 | 2200 | 40 | 100 | 260 | 100 |
| 14 | 88／0.45 | 4.9 | 1.1 | 6.4 to 7.6 | 1.32 | 2200 | 40 | 200 | 160 | 200 |
| 8 | 50／0.45 | 3.7 | 1.1 | 5.2 to 6.4 | 2.32 | 2200 | 50 | 200 | 100 | 200 |
| 5.5 | 35／0.45 | 3.1 | 1.1 | 4.6 to 5.8 | 3.31 | 2200 | 50 | 300 | 70 | 400 |
| 3.5 | 45／0.32 | 2.5 | 1.1 | 4.0 to 5.2 | 5.38 | 2200 | 50 | 300 | 50 | 400 |
| 2.0 | 37／0.26 | 1.8 | 1.1 | 3.4 to 4.4 | 9.91 | 2200 | 60 | 300 | 30 | 400 |
| 1.25 | 50／0.18 | 1.5 | 1.1 | 3.1 to 4.1 | 15.5 | 2200 | 70 | 300 | 25 | 400 |
| 0.75 | 30／0.18 | 1.1 | 1.1 | 2.8 to 3.7 | 25.8 | 2200 | 80 | 300 | 20 | 400 |
1,500 V
| Conductor | Insulator Thickness (mm) | Finishing outer diameter (mm) | Conductor resistance (20℃) (Ω/km) | Test voltage (V) | Insulation Resistance (20℃) (MΩ·km) | Surface leak resistance (MΩ) | Reference | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal cross-sectional area (mm^2) | Configuration Number of strand / strand diameter (strands/mm) | Outer diameter (Approx.) (mm) | Approximate weight (kg/km) | Standard length of wire (m) | ||||||
| 250 | 37／42／0.45 | 23.6 | 3.0 | 28.6 to 31.0 | 0.0760 | 5400 | 20 | 50 | 2600 | 300 |
| 200 | 37／34／0.45 | 21.2 | 3.0 | 26.3 to 28.5 | 0.0939 | 5400 | 20 | 50 | 2150 | 300 |
| 150 | 27／34／0.45 | 18.7 | 2.5 | 22.9 to 24.9 | 0.129 | 5400 | 20 | 60 | 1600 | 300 |
| 125 | 19／42／0.45 | 16.8 | 2.5 | 21.1 to 23.1 | 0.148 | 5400 | 20 | 70 | 1400 | 300 |
| 100 | 19／34／0.45 | 15.2 | 2.5 | 19.4 to 21.4 | 0.183 | 5400 | 30 | 70 | 1150 | 300 |
| 80 | 19／27／0.45 | 13.5 | 2.5 | 17.8 to 19.6 | 0.230 | 5400 | 30 | 90 | 920 | 300 |
| 60 | 19／20／0.45 | 11.6 | 2.5 | 16.0 to 17.6 | 0.311 | 5400 | 30 | 90 | 700 | 300 |
| 50 | 19／16／0.45 | 10.4 | 2.5 | 14.8 to 16.4 | 0.389 | 5400 | 40 | 100 | 580 | 300 |
| 38 | 7／34／0.45 | 9.1 | 2.0 | 12.5 to 14.1 | 0.496 | 5400 | 30 | 100 | 450 | 100 |
| 30 | 7／27／0.45 | 8.1 | 2.0 | 11.6 to 13.0 | 0.625 | 5400 | 40 | 100 | 370 | 100 |
| 22 | 7／20／0.45 | 7.0 | 2.0 | 10.5 to 11.9 | 0.844 | 5400 | 45 | 100 | 300 | 100 |
| 14 | 88／0.45 | 4.9 | 2.0 | 8.3 to 9.7 | 1.32 | 5400 | 50 | 100 | 180 | 200 |
| 8 | 50／0.45 | 3.7 | 2.0 | 7.2 to 8.4 | 2.32 | 5400 | 60 | 200 | 120 | 200 |
| 5.5 | 35／0.45 | 3.1 | 2.0 | 6.6 to 7.8 | 3.31 | 5400 | 70 | 200 | 90 | 200 |
| 3.5 | 45／0.32 | 2.5 | 2.0 | 6.0 to 7.2 | 5.38 | 5400 | 80 | 200 | 70 | 200 |
| 2.0 | 37／0.26 | 1.8 | 2.0 | 5.3 to 6.5 | 9.91 | 5400 | 100 | 200 | 50 | 400 |
| 1.25 | 50／0.18 | 1.5 | 2.0 | 5.1 to 6.1 | 15.5 | 5400 | 110 | 200 | 40 | 400 |
