Terminal Relay G6B-4□□ND

Brand :

OMRON

Caution

Product Description

Small terminal relay for 4-point output.
[Features]
· Equipped with four G6B mini-relays that are compact, highly sensitive, and highly resistant to dielectric surges, and that can switch 5 amps of power.
· Sealed plastic construction used for relays.
· Easy wiring with separated input/output terminals.
· Includes LED operation indicators.
· Built-in diode for absorption of coil surges.
· Special socket used for easy relay replacement (except for high reliability types).
[Applications]
· As a relay for connecting loads of solenoid valves, etc., to controllers such as PLCs, etc.

Product Catalog

OMRON Terminal Relays G6B-4 ND Specifications

Terminal Relays G6B-4□□ND: Related Images

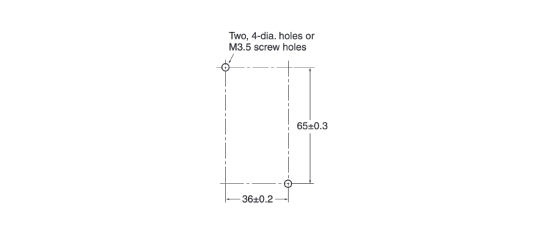

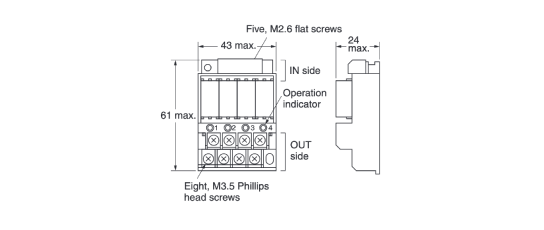

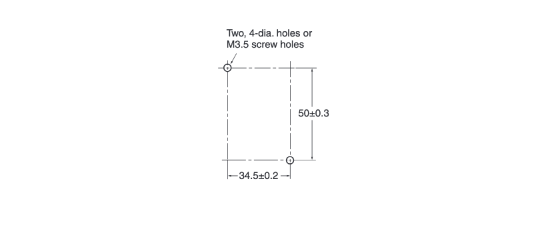

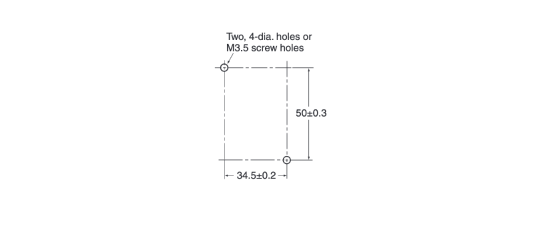

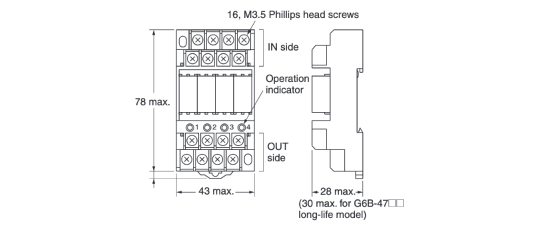

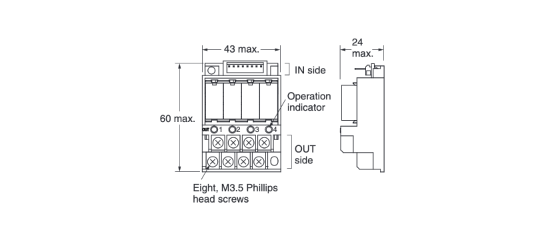

External appearance of Terminal Relays G6B-4 ND

A small Terminal Relays for 4-point output.
Equipped with four small, highly sensitive, high voltage resistant 5A power switching type G6B mini relays.
The relay body has a plastic sealed structure.
The terminals have an IN/OUT separated structure, making wiring easy.
Comes with operation indicator LED.
Built-in diode for absorbing coil surges.
Dedicated socket makes it easy to replace relays (except for high reliability).
Standard type, UL and CSA certified (except for high reliability type). (G6B-4BND/47BND/48BND DC12/24V are VDE certified.)
DIN rail mounting and screw mounting types are also available.
Shared with dedicated socket. SSR-equipped G3S4 also available.

Installation Method	Can be mounted on DIN rails or with screws		Screw mounting
Coil side terminal shape	(+) Screw terminal type		(-) Screw terminal type		Connector type
Contact Configuration	format	Rated voltage (V)	format	Rated voltage (V)	format	Rated voltage (V)
1a×4 (standard form)	Model G6B-4BND	DC5	Model G6B-4FB1ND	DC24	Model G6B-4FPND	DC24
		DC12
		DC24
1a×4 (high durability type)	Model G6B-47BND	DC5	-
		DC12
		DC24
1a×4 (High reliability type)	Model G6B-48BND	DC12
1a×4 (High reliability type)	Model G6B-48BND	DC24
