In-Line Type Ribbon Cable Connector (HIF3B Relay Type)

Brand :

HIROSE ELECTRIC

Caution

Product Description

MIL Standard compliant in-line type ribbon cable connector.
[Features]
· Can be used for cable-to-cable in-device wiring.
· Compatible with HIF3A Series sockets as well, not to mention HIF3B Series.
· The compatible cable is <UL2651> AWG#28 ribbon cable (7-core/0.127 mm, jacket diameter of 0.8 to 1.0 mm).

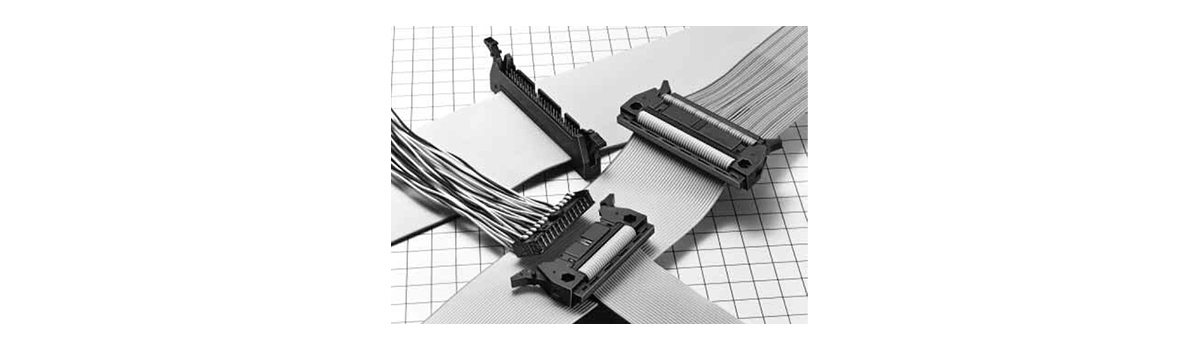

In-line Type Ribbon Cable Connector (HIF3B Relay Type)

HIF3BA-PD Series

Specifications of HIF3BA-PD Series In-Line Male Connector For ID

Product Standards

Rating	Rated current: 1 A Rated voltage: 200 V AC	Operating temperature range: -55 to +85°C (Note 1) Operating humidity range: 40 to 80%	Storage temperature range -10 to +60°C (Note 2) Storage humidity range 40 to 70% (Note 2)

Item	Standard	Conditions
1. Insulation resistance	1,000 MΩ or more	Measure at 500 V DC
2. Withstand voltage	There shall be no flashover or dielectric breakdown.	Energize at 650 V AC rms for 1 min.
3. Contact resistance	15 mΩ or less	Measure at 0.1 A
4. Vibration resistance	There shall be no electrical discontinuity for 1 μs or greater.	10 to 55 Hz, Single amplitude: 0.75 mm, Three directions, 2 hours
5. Humidity resistance	Insulation resistance: 1,000 MΩ or more	Leave at temperature 40°C ±2°C and humidity 90 to 95% for 96 hours
6. Temperature cycle	There shall be no cracking or abnormalities with any of the parts.	(-65°C: 30 mins. > 15 to 35°C: Max. 5 mins. > 125°C: 30 mins. > 15 to 35°C: Max. 5 mins.) 5 cycles
7. Durability (Mating / Un-mating)	Contact resistance: 15 mΩ or less	500 times

(Note 1) This includes temperature increases caused by the flow of current.
(Note 2) The term "storage" refers to products stored for long periods of time prior to mounting and use. The operating temperature range and humidity range covers non-conducting condition of installed connectors in storage, shipment or during transportation.

Materials

Part Name	Materials	Finish	Note
Insulator	PBT resin	Black	UL94V-0
Plug contact	Beryllium copper	Nickel plating + gold plating	-

Product Outline Drawing And Dimensions

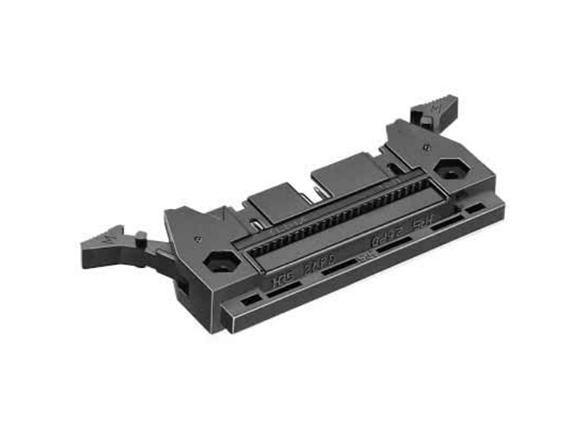

Plug

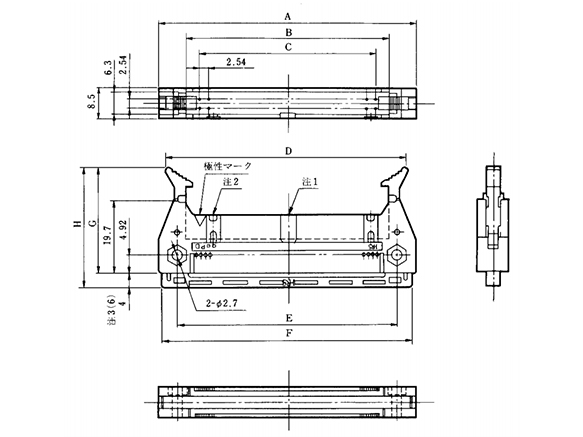

HIF3BA-PD Series In-Line Male Connector For ID dimensional drawing

(Note 1) (Note 2): Because the number of slots with polarity vary depending on the product, contact VONA Customer Service (0120-343-256) for details. Only the 10-contact model does not have a polarity key mounting section.
(Note 3): Dimensions shown in parentheses are for 60- and 64-contact models.
(Note 4): Be aware that although the lock shape of the HIF3BAE-60PD-2.54R-MC is partially different, its only mating partner is HIF3A.

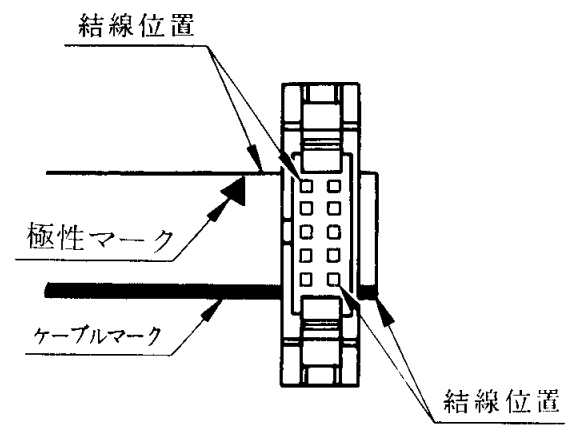

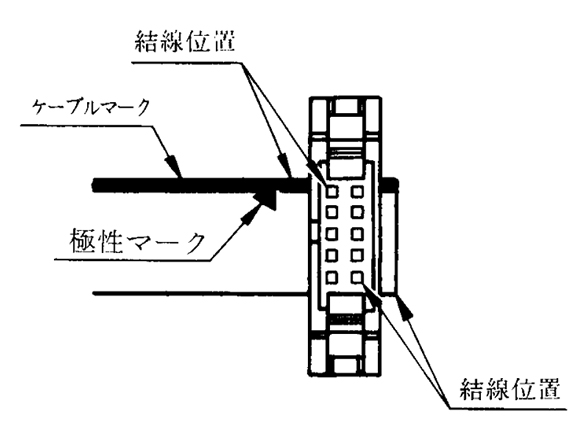

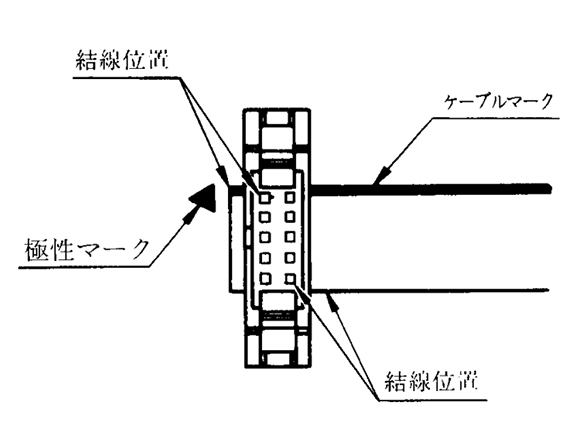

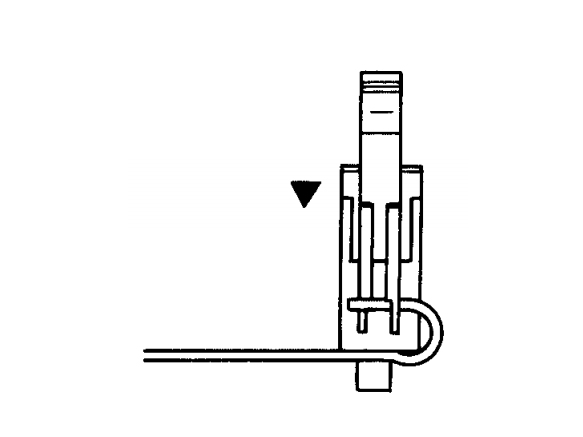

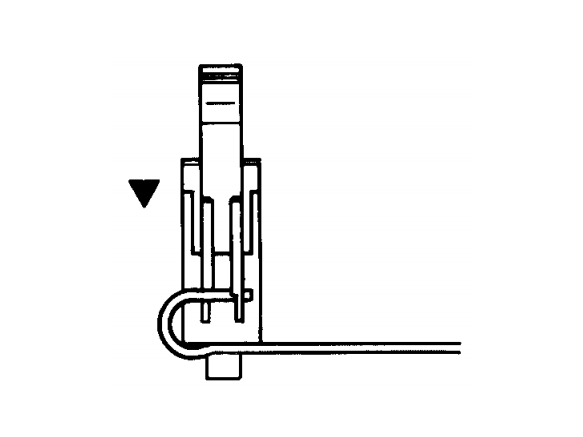

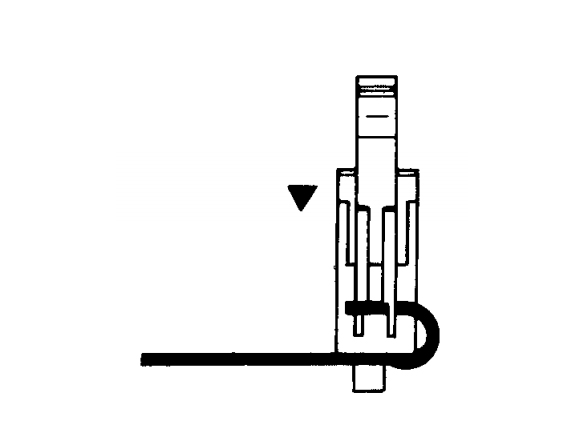

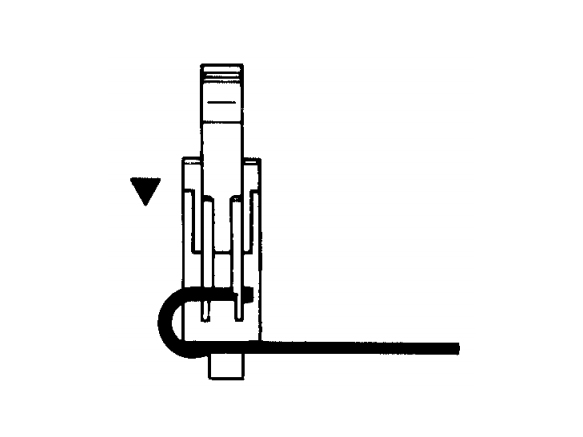

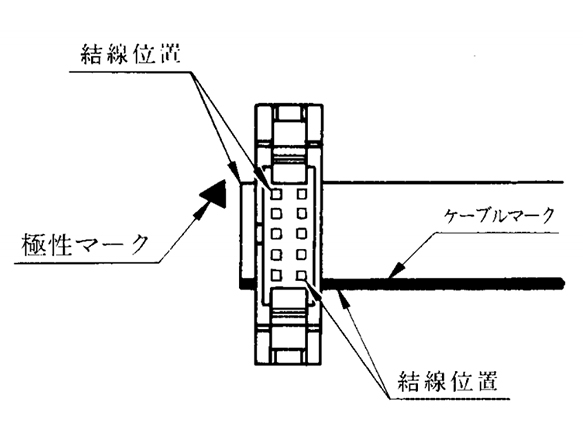

Connection Method

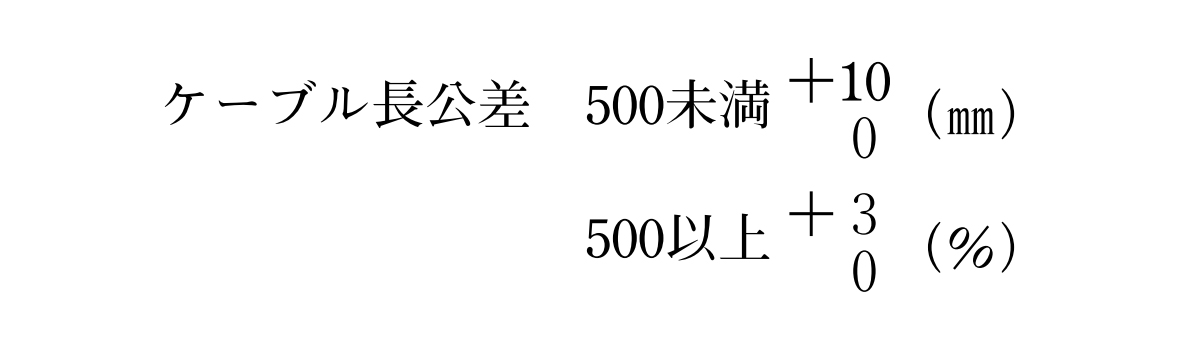

When using with cable such as twisted cable or slitted cable, because the cable pitch may differ slightly depending on the cable manufacturer, it may not be possible to complete wiring. In such cases, please contact the cable manufacturer.
