Miniature Push-Pull Connector with Earth Function, MXR Series
Brand :
HIROSE ELECTRIC
Caution
Product Description
A small lightweight circular connector with earth function. Uses aluminum alloy for the exterior.
[Features]
· The single-action push-lock mechanism facilitates quick mating and un-mating and allows for high-density mounting.
· The metal on the exterior is in stable contact.
· When mating, there is a sequence structure type where only one core contacts first.
· Plugs in which the tightening of cord tubes can be performed just by clamping the cable are also available.
· These are designed to enhance workability and reduce the need for dedicated tools.
[Applications]
· Convenient for various types of wiring.

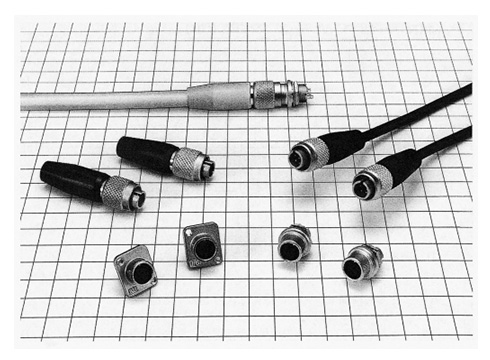

Miniature Circular Connector with Grounding Function & Single-Action Push-Pull Lock For Easy Removal
MXR Series
Main Features of MXR Series Miniature Circular Connector With Push-Pull Lock
Main Specifications
| Product Information | |
|---|---|
| Product Name | MXR-8P-8P(71) |
| HRS No. | 1270002371 |
| Basic Performance | |
| Connector Type | Plug |
| Number of Contacts | 8 |
| Contact Plating | Gold |
| Number of Matings and Un-Matings | 1,000 |
| Rated Current | 2 A |
| Rated Voltage (AC) | 100 V AC |
| Rated Voltage (DC) | 140 V DC |
| Opening Direction | Straight |
| Wiring Method | Soldered |
| Locking Method | Push-pull |
| Compatible Wire Size (AWG) | AWG24 |
| External Material | Metal |
| Operating Temperature Range | -25 to 85°C |
| Mechanical Performance | |
| Shield Function | Yes |
| Finger Protection | N/A |
| Contact Sex | Male |
| Key | N/A |
| Exterior Surface Finish | Nickel |
| Electrical/Optical Performance | |
| Withstand Voltage | 300 V max. |
| Product Size | |
| Main Body Length (Pitch Direction) | 13.9 mm |
| Main Body Width (Depth) | 50 mm |
| Main Body Height | 13.9 mm |
| Cable Outer Diameter | 8 mm |
Product Standards
| Rating | Rated Current | Number of Contacts | Rated Current |
|---|---|---|---|
| 3 4 6 8 | 2 A |
| Rating | Rated voltage | Number of Contacts | Rated voltage |
|---|---|---|---|
| 3 4 6 8 | 100 V AC, 140 V DC |
| Rating | Operating Temperature Range | -25 to 85°C |
|---|---|---|
| Storage temperature range | -10 to 60°C |
| Item | Standard | Conditions |
|---|---|---|
| 1. Contact resistance | 20 mΩ or less | Measure at 1 A DC |
| 2. Insulation resistance | 1,000 MΩ or more | Measure at 100 V DC |
| 3. Withstand voltage | There shall be no flashover or dielectric breakdown | 300 V AC for 1 min. |
| 4. Vibration resistance | There shall be no electrical discontinuity for 10 μs or greater | Test at 10 to 55 Hz/cycle, amplitude: 0.75 mm, three directions, 2 hours each. |
| 5. Shock | There shall be no electrical discontinuity for 10 μs or greater | Test at acceleration 490 m/s2, duration: 11 ms, 3 directions, 3 times each. |
| 6. Mating cycle | Contact resistance: 40 mΩ or less | 1,000 times |
| 7. Temperature cycle | Insulation resistance 1,000 MΩ or more | Leave at -55°C: 30 mins. > Room temperature: 10 to 15 mins. > 85°C: 30 mins. > Room temperature: 10 to 15 mins. for a total of 5 cycles. |
| 8. Humidity resistance | Insulation resistance 10 MΩ or more (at high humidity) 100 MΩ or more (when dry) | Temperature: 40°C, relative humidity: 90 to 95%, left for 96 hours. |
Materials/Processing
| Part Name | Materials | Finish | Note |
|---|---|---|---|
| Shell | Aluminum alloy | Nickel plating | ― |
| Insulator | PBT resin | ― | UL94V-0 |
| Contacts | Copper alloy | Gold plating, Selective gold plating | ― |
Product Termination Procedure
MXR-8PA-3PB(71), MXR-8PA-4PB(71), MXR-8PA-6PB(71)
Work Procedure
- 1. Pass the cable through the components in the order of cable bushing, plug body and then clamp and terminate the cable end.
- 2. After inserting the P shell unit into the tightening jig, solder the contact wires to the P shell unit.
- 3. Align the concave portion of the P shell unit with the convex portion of the clamp and install.
- 4. After aligning the clamp with the position of the cable sheath strip, tighten the plug main body to the threaded portion of the P shell unit with a torque of 1 N·m.
Note that to prevent loosening, an application of Loctite 263 (by HENKEL JAPAN LTD.) is recommended. - 5. Put the cable bushing over the plug body to complete.

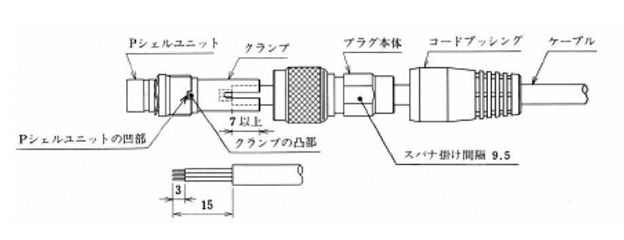

Concave portion of P shell unit / P shell unit / clamp / 7 or more / convex portion of clamp / plug main body / cord bushing / cable / spanner spacing 9.5
Dimensional Drawing of Product Panel Mounting Hole
Jam nut type
Flange type
- Note: The diagram shows the view from the mating surface side (plug termination side) of the receptacle.

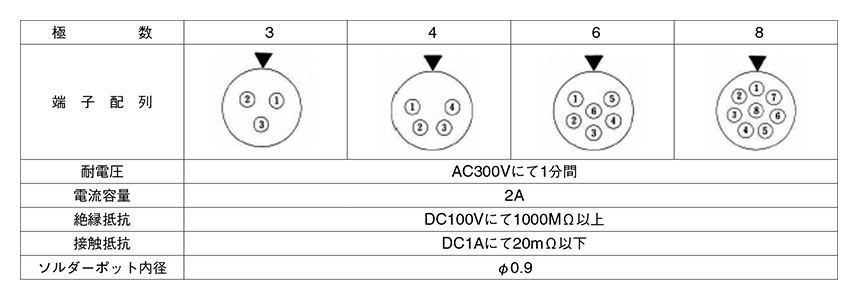

Contact Position Arrangement and Main Functions
- Note 1. The diagram shows the view from the mating surface side (plug termination side) of the receptacle. The "▾" symbol represents the guide position.
- Note 2. The withstand voltage indicates the test voltage value. Normally, use at 50 V AC or 70 V DC or less.
