JIS C 5432 Compliant Circular Connector, JR Series

Brand :

HIROSE ELECTRIC

Caution

Product Description

[Features]
· Two connection methods: solder type and crimp type.
· The solder type is selectable from screw locking and bayonet locking types.
· Round connector compliant with JIS C5432 “Round connectors for electric equipment”.
[Applications]
· Can be used for various types of equipment.

JIS C 5432 Compliant Circular Connector

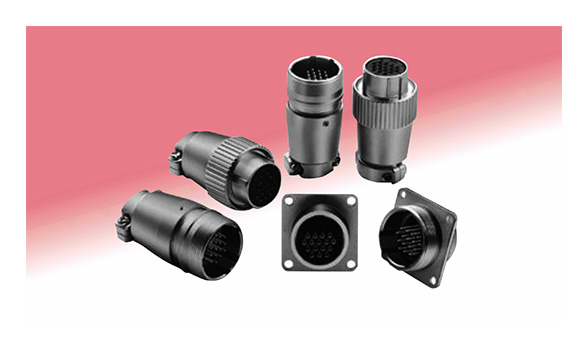

JR Series list

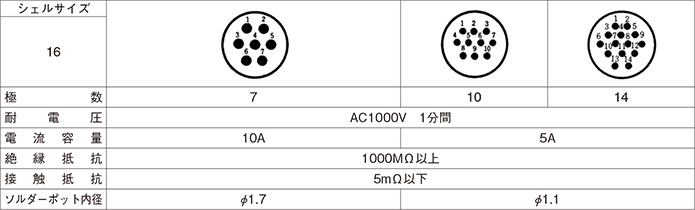

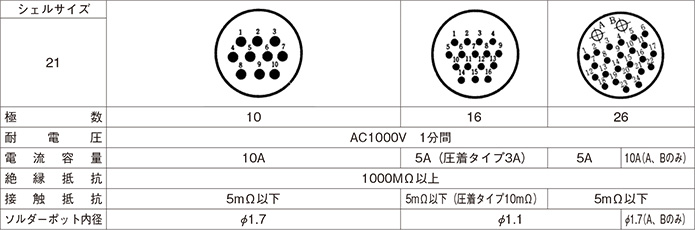

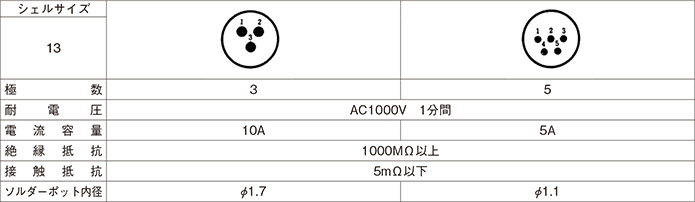

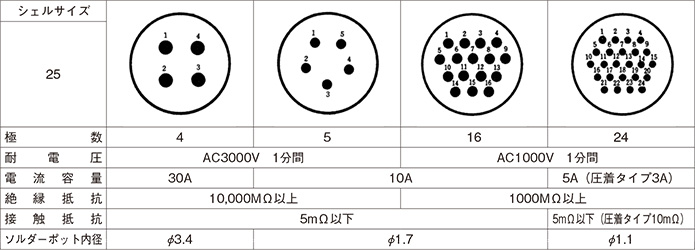

Specifications of JR Series JIS C 5432 Compliant Circular Connector

Product Standards

Rating	Rated Current	Shell Size	Number of Contacts	Rated Current
		13	3	10 A
		13	5	5 A
		16	7	10 A
		16	10, 14	5 A
		21	10	10 A
			16	5 A (crimp type 3 A)
			26	5 A (10 A for contacts No. A and B only)
		25	4	30 A
			5, 16	10 A
			24	5 A (crimp type 3 A)

Rating	Rated voltage	Shell Size	Number of Contacts	Rated voltage
		13	3, 5	250 V AC, 350 V DC
		16	7, 10, 14
		21	10, 16, 26
		25	4, 5 16, 24	1,000 V AC, 1,400 V DC 250 V AC, 350 V DC

Rating	Operating Temperature Range	-25 to 85°C
Rating	Storage temperature range	-10 to 60°C

Item	Standard	Conditions
1. Contact resistance	5 mΩ or less JR21-16-contact crimp type: 10 mΩ or less JR25-24-contact crimp type: 10 mΩ or less	Measure at 1 A DC
2. Insulation resistance:	1,000 MΩ or more JR25-4-, 5-contacts: 10,000 MΩ or more	Measure at 500 V DC
3. Withstand voltage	There shall be no flashover or dielectric breakdown	1,000 V AC for 1 min. JR25-4-, 5-contacts: 3,000 V AC for 1 min.
4. Vibration resistance	There shall be no electrical discontinuity for 10 μs or greater	Test at 10 to 55 Hz/cycle, amplitude: 0.75 mm, three directions, 2 hours each.
5. Shock	There shall be no electrical discontinuity for 10 μs or greater	Test at acceleration 490 m/s², duration: 11 ms, 6 axial directions, 3 times each.
6. Mating cycle	Contact resistance: 10 mΩ or less	500 times
7. Temperature cycle	Insulation resistance: 1,000 MΩ or more JR25-4-, 5-contacts - Insulation resistance: 10,000 MΩ or more	Leave at -40°C: 30 mins. > Room temperature: 10 to 15 mins. > 100°C: 30 mins. > Room temperature: 10 to 15 mins. for a total of 5 cycles.
8. Humidity resistance	Insulation resistance (when dry) 100 MΩ or more 5,000 MΩ or more: JR25-4-, 5-contacts	Temperature: 40°C, relative humidity: 90 to 95%, left for 96 hours.
