Magnetic Contactors MSO-N Series
Brand :
MITSUBISHI
Caution
Product Description
Mitsubishi electromagnetic switch, standard/open type, AC operation.
[Features]
· Global support. Twin contacts used for auxiliary contact.
· High quality product meeting an increasing variety of needs.
[Applications]
· Convenient for motor start/stop and motor burnout protection.
MS-N Series Standard/Open Type, AC Operating Electromagnetic Switch Specifications
| Electromagnetic Contactor | Electromagnetic Switch | Rated Capacity [kW] | Rated Operating Current [A] | Open Thermal Current Ith [A] | Auxiliary Contact | Combination Thermal Relay | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Three-Phase Squirrel-Cage Motor (AC-3 Class) | Three-Phase Squirrel-Cage Motor (AC-3 Class) | Resistant Load (AC-1 Class) | ||||||||||||
| 200 To 220 V | 380 To 440 V | 500 To 550 V | 200 To 220 V | 380 To 440 V | 500 To 550 V | 200 To 220 V | 380 To 440 V | Standard (Special) | Unit Type Name That Can Be Added × Unit Count | Type Name | Heater Nominal Application Range [A] | |||
| S-N35 (CX) | MSO-N35 (CX) | 7.5 | 15 | 15 | 34 (35) | 32 | 26 | 60 | 60 | 60 | 2a2b | UN-AX2, 4(CX) × 1 or UN-AX11 (CX) × 2 | TH-N20 (TA) (CX) | 0.24 to 29 |
| S-N150 | MSO-N150 | 37 | 75 | 90 | 150 | 150 | 140 | 200 | 200 | 200 | UN-AX150 × 2 | THN120 (TA) | 42 to 125 | |
| S-N220 | MSO-N220 | 55 | 110 | 132 | 220 | 220 | 200 | 260 | 260 | 260 | TH-N220RH | 82 to 180 | ||
| S-N300 | MSO-N300 | 75 | 150 | 160 | 300 | 300 | 250 | 350 | 350 | 350 | TH-N400RH | 105 to 250 | ||
| S-N400 | MSO-N400 | 110 | 200 | 200 | 400 | 400 | 350 | 450 | 450 | 450 | 105 to 330 | |||
- Note: The rated operating current in ( ) applies for electromagnetic contactor.
MS-N Series Standard / Open Type, AC Operating Electromagnetic Switch External Dimensions

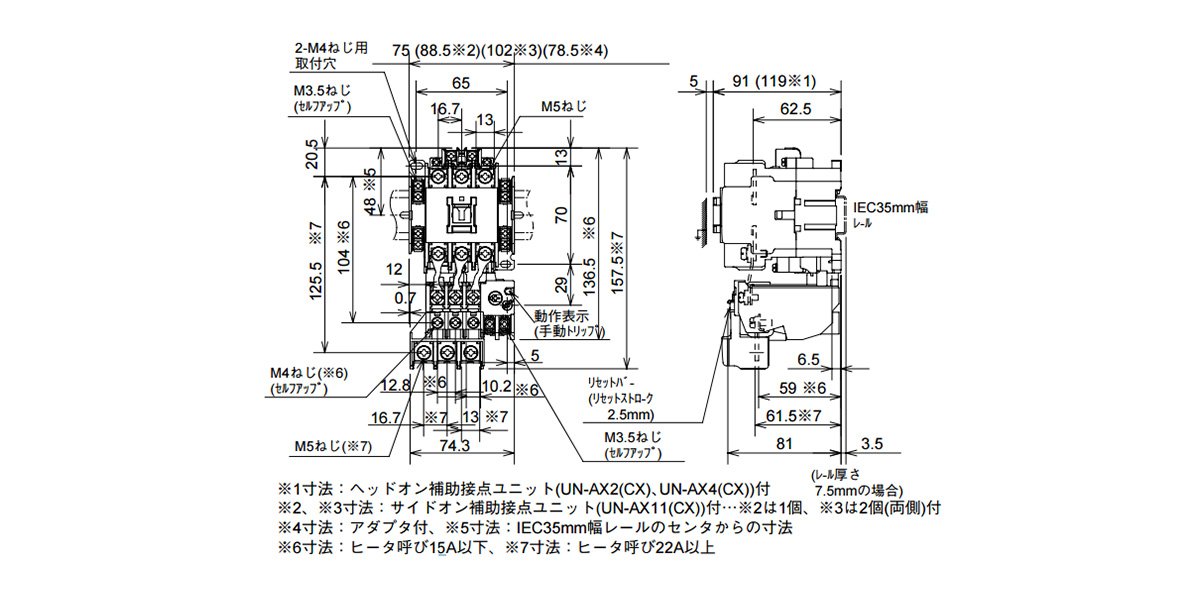

MSO-N35

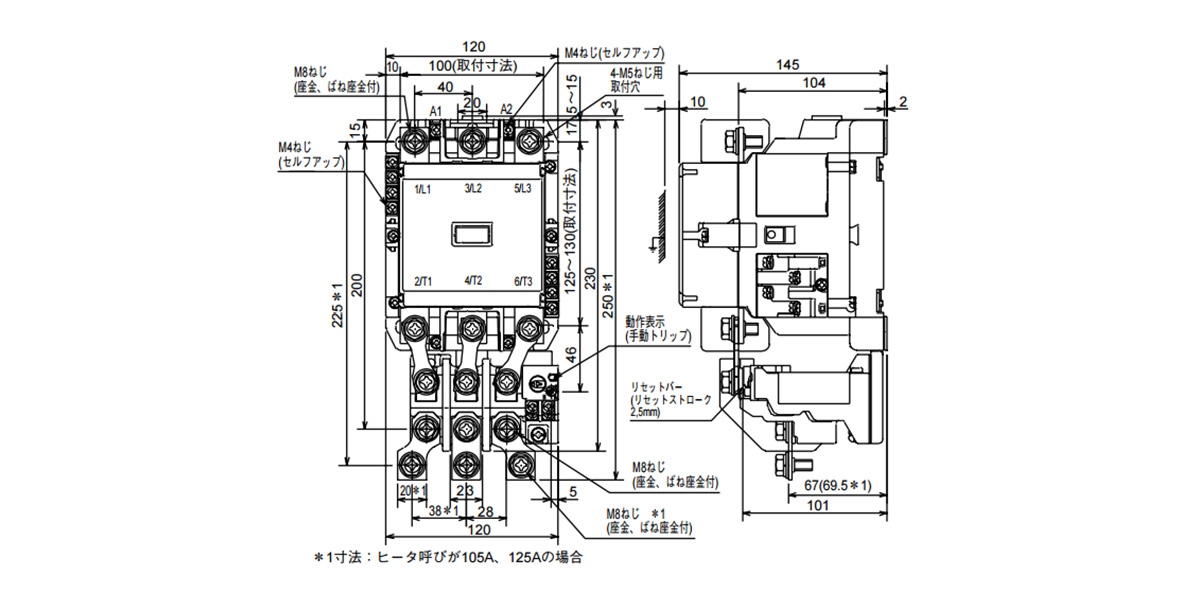

MSO-N150

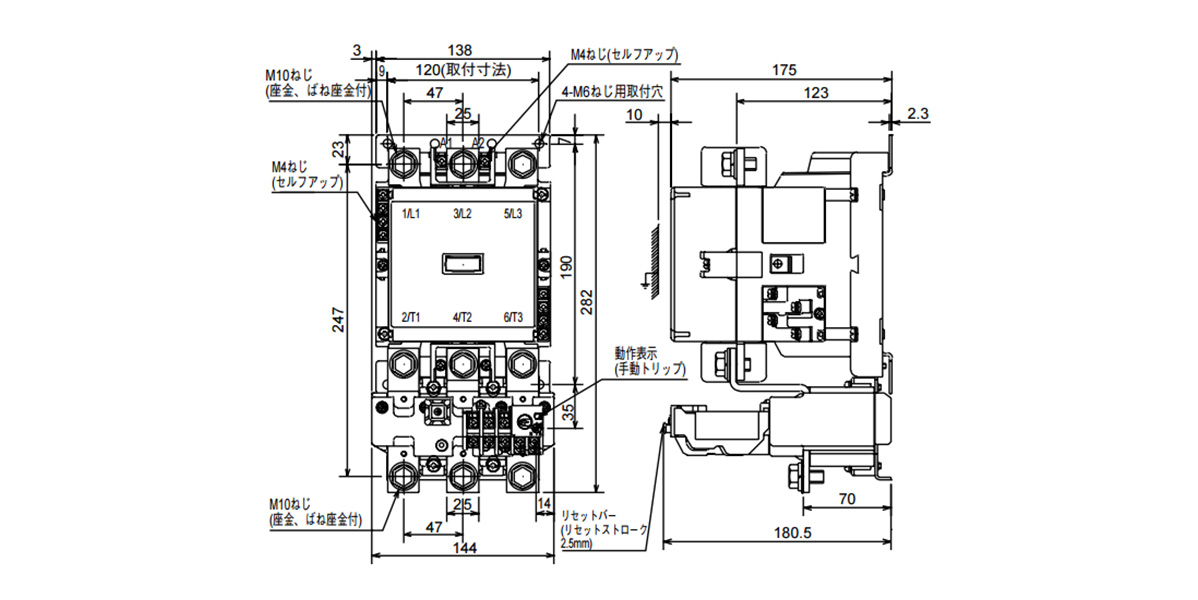

MSO-N220

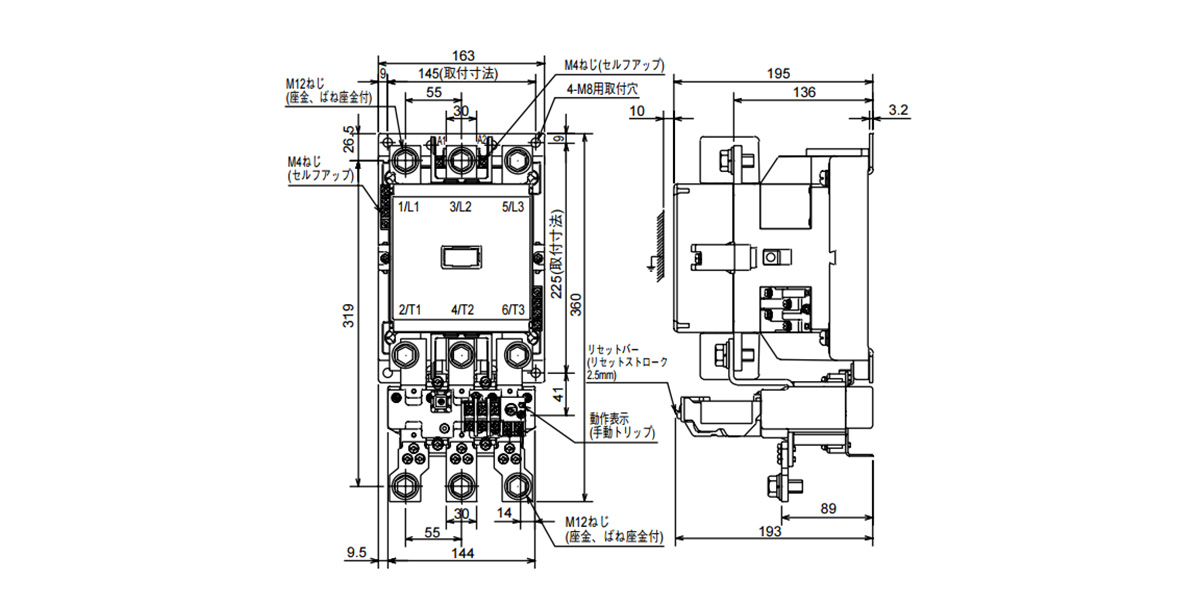

MSO-N300/400
