MELSEC-F Series Analog Output
Caution
- This product belongs in RoHS Directive under Category 9 "Monitoring and control equipment" with exclusion from the usage restriction of phthalate esters until 21 July 2021.
Product Description
Analog output device for MELSEC-F Series.
[Features]
· Analog volume output (voltage, current, etc.) can be outputted using an analog output block.
· Analog control, which is indispensable for FA control, is easily provided by the sequencer.
[Applications]
· Convenient for conversion of analog input signal to digital values, and for conversion of digital values to analog output signal.

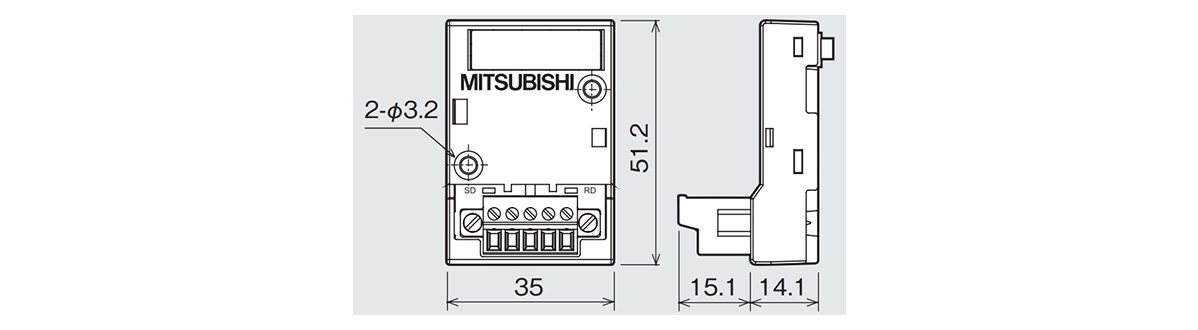

FX3G-1DA-BD Outline Drawing
FX3G-1DA-BD
FX3G-1DA-BD Specifications
| Type Name (Number Of Channels) | Output Specification | Insulation | Connected Sequencer | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Item | Voltage Output | Current Output | FX1S | FX3G | FX3GC | FX3U | FX3UC | ||
| FX3G-1DA-BD (1ch) | Output Range | 0 to 10 V DC (external load 2 kΩ to 1 MΩ) | 4 to 20 mA DC (external load 500 Ω or less) | Between internal and channels: not insulated Between channels: (not Applicable) | × | ○*1 Maximum of 2 Devices | × | × | × |
| Resolution | 2.5 mV (10 V / 4,000) | 8 μA {(20 - 4 mA) / 2,000} | |||||||
*1: One device if the board is a 14 or 24 point type. Adapter connection requires FX3G-CNV-ADP.

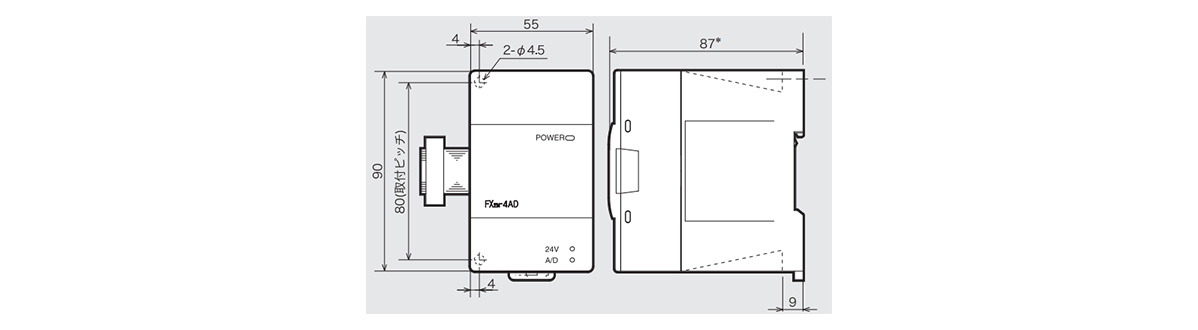

FX3U-4DA Outline Drawing
FX3U-4DA
FX3U-4DA Specifications
| Type Name (Number Of Channels) | Output Specification | Insulation | Connected Sequencer | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Item | Voltage Output | Current Output | FX1S | FX3G | FX3GC | FX3U | FX3UC | ||
| FX3U-4DA (4ch) | Output Range | -10 to 10 V DC (external Load 1 kΩ to 1 MΩ) | 0 to 10 mA DC, 4 to 20 mA DC (external load 500 Ω or less) | Between internal and channels: insulated Between channels: not insulated | × | × | × | ○ Maximum of 8 devices | ○*1 Maximum of 7 to 8 devices*2 |
| Resolution | 0.32 mV (20 V × 1/64,000) | 0.63 μA (20 mA × 1/32,000) | |||||||
*1: requires FX2NC-CNV-IF or FX3UC-1PS-5V.
*2: FX3UC-32MT-LT (-2): 7 devices. FX3UC-□□MT/D, FX3UC-□□MT/DSS: 8 devices.

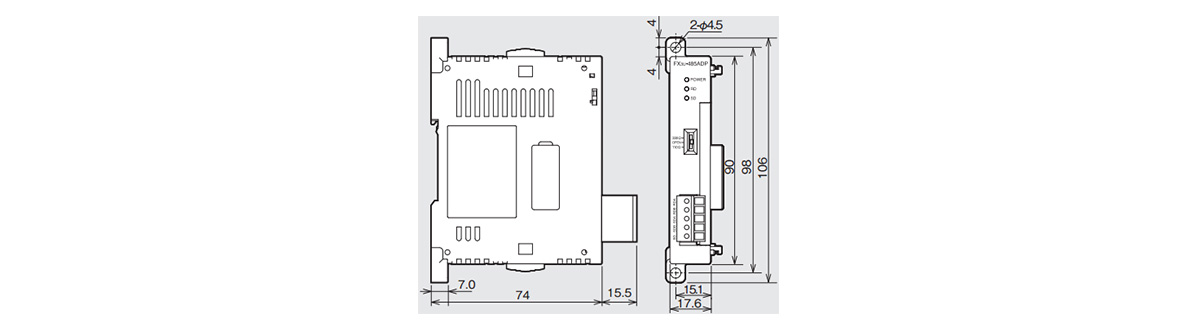

FX3U-4DA-ADP Outline Drawing
FX3U-4DA-ADP
FX3U-4DA-ADP Specifications
| Type Name (Number Of Channels) | Output Specification | Insulation | Connected Sequencer | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Item | Voltage Output | Current Output | FX1S | FX3G | FX3GC | FX3U | FX3UC | ||
| FX3U-4DA-ADP (4ch) | Output Range | 0 to 10 V DC (external load 5 kΩ to 1 MΩ) | 4 to 20 mA DC (external load 500 Ω or less) | Between internal and channels: insulated Between channels: not insulated | × | ○＊1 Maximum of 2 devices | ○ Maximum of 2 devices | ○*2 Maximum of 4 devices | ○*2 Maximum of 4 devices |
| Resolution | 2.5 mV (10 V / 4,000) | 4 μA (16 mA / 4,000) | |||||||
*1: One device if the board is a 14 or 24 point type. Adapter connection requires FX3G-CNV-ADP.
*2: FX3U sequencer and the FX3UC-32MT-LT (-2) require a function expansion board.
