Compact Vector Control Inverter V1000
Brand :
YASKAWA
Caution
Product Description
Easy to use and world's smallest, it features best-in-class performance and a wide array of functions
[Features]
· Compact and high performance (current vector control).
· Thanks to the new technology used, it's capable of driving synchronous motors (IPMM/SPMM) as well as induction motors.
· Achieves a high starting torque of 200%/0.5Hz (with an induction motor of 3.7kW or less and when heavy load rating is used) and torque limiting is also possible.

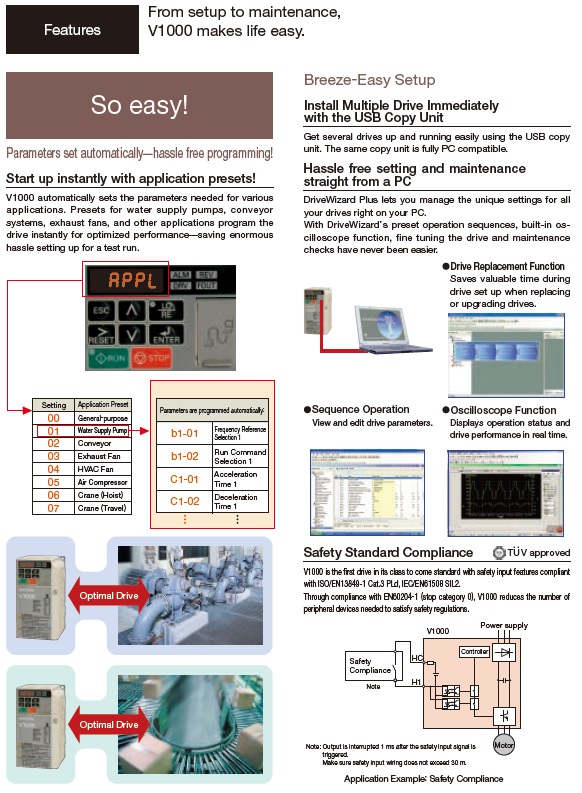

· Functions can be easily selected and settings optimized for any application.

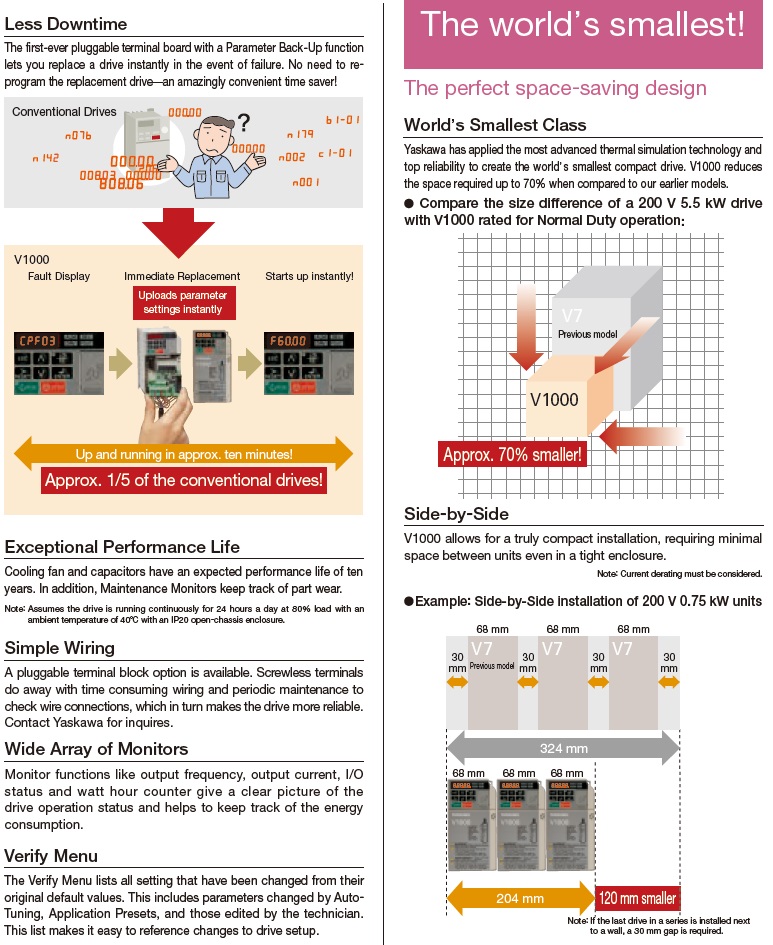

· Use of a detachable type terminal block with a parameter backup function (parameter memory built-in) enables easy maintenance
