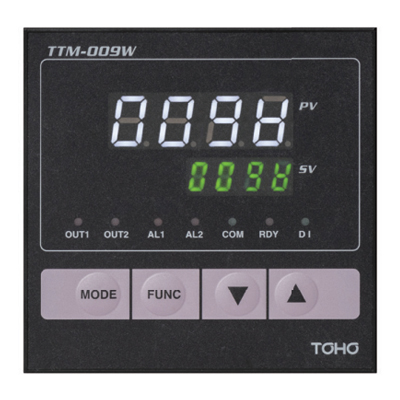

Digital Temperature Controllers, TTM-000W Series
Caution
Product Description
[Features]
● Self-Tuning PID (Heating / Cooling)
● Blind Function
● Simplified Timer Function
● Priority Display: Demanding parameter screens are monitored and set up under operational mode screen. (max. 9 points)
● Multiple Inputs: Thermocouple / R.T.D. (Pt100 & JPt100) are selectable by front key.
● External Standard: Conforms to "UL", "cUL" and "CE" markings (except TTM-002W) and compliant to "IP66" equivalent.
● Compact Size: Compactly made with the depth of only 77mm (002W is 95mm).
● Manual Control (Balanceless & Bumpless)
● Sampling Cycle: 250ms
● Communication Function (RS-485: TOHO Protocol / MODBUS)
● Digital PV Filter
● PID with Overshoot Control Function
● DI Function
● Others
① CT Input (w/ Input Monitor)
② Shift setting of OFF position during the ON / OFF control (for both Output 1 & 2).
③ Heating / Cooling Control (w/ PID Control Function on Cooling Side).
④ Ramp Function
