Push-in Fitting, QSM Series
Brand :
FESTO
Caution
Product Description
Push-in Fitting, QSM Series
One-Touch Fitting is a joint used for connecting hoses, pipes, or tools. It offers a wide variety of sizes to choose from.
[Feature]
● Shape : Straight
● Applicable Tube O.D. (mm.) : 2, 3, 4 and 6
● Thread size : G1/8, R1/8, M3, M5, M6 and M7
● Operating Pressure Range (MPa) : -0.095 to 0.6
● Material
Body - PBT, Brass, Nickel-plated and Steel, Nickel-plated
Releasing ring material - POM
[Application]
It is suitable for automation machine in pneumatic system
Push-in fitting QSM
-Male thread with external hex
Specifications and dimentions
| Manufacturer no. | Product code | Connection D1 | Nominal size [mm] | Tubing O.D. D2 | D5 Ø | L1 | L2 | L3 | L4 | Wrench size | Weight/piece [g] | PU |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 133027 | QSM-M3-2 | M3 | 0.9 | 2 | 4.8 | 12.1 | 2.5 | - | 8.4 | 5 | 1 | 10 |
| 153301 | QSM-M3-3 | 3 | 7 | 13.3 | 2.5 | - | 9.6 | 5.5 | 1.1 | 10 | ||
| 130775 | QSM-M3-3-100 | 100 | ||||||||||
| 153303 | QSM-M3-4 | 1.1 | 4 | 9.8 | 15.7 | 2.5 | - | 11.5 | 8 | 2.4 | 10 | |
| 130776 | QSM-M3-4-100 | 100 | ||||||||||
| 133028 | QSM-M5-2 | M5 | 1.1 | 2 | 4.8 | 11.8 | 3 | - | 8.4 | 7 | 2.2 | 10 |
| 153302 | QSM-M5-3 | 2 | 3 | 9.8 | 16.2 | 3 | - | 11.5 | 8 | 3.4 | 10 | |
| 130777 | QSM-M5-3-100 | 100 | ||||||||||
| 153304 | QSM-M5-4 | 2.2 | 4 | 9.8 | 16.2 | 3 | - | 11.5 | 8 | 3.2 | 10 | |
| 130778 | QSM-M5-4-100 | 100 | ||||||||||
| 153306 | QSM-M5-6 | 2.1 | 6 | 11.8 | 17.3 | 3 | - | 12 | 10 | 4.5 | 10 | |
| 130779 | QSM-M5-6-100 | 100 | ||||||||||
| 132600 | QSM-M6-6 | M6 | 2.8 | 6 | 11.8 | 18 | 3.9 | - | 11.7 | 10 | 4.8 | 10 |
| 153305 | QSM-1/8-4 | R1/8 | 2.9 | 4 | - | 16 | 8 | 12 | 11.5 | 10 | 6 | 10 |
| 130755 | QSM-1/8-4-100 | 100 | ||||||||||
| 153307 | QSM-1/8-6 | 4.5 | 6 | - | 18 | 8 | 14 | 12 | 10 | 6 | 10 | |
| 130756 | QSM-1/8-6-100 | 100 | ||||||||||
| 186264 | QSM-G1/8-4 | G1/8 | 2.9 | 4 | - | 16.4 | 5.1 | - | - | 13 | 9.4 | 10 |
| 186265 | QSM-G1/8-6 | 2.8 | 6 | - | 18.4 | 5.1 | - | - | 13 | 11 | 10 |
Push-in fitting QSM-...-I
-Male thread with internal hex
Specifications and dimentions
| Manufacturer no. | Product code | Connection D1 | Nominal size [mm] | Tubing O.D. D2 | D5 Ø | L1 | L2 | L3 | L4 | Wrench size | Weight/piece [g] | PU |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 133026 | QSM-M3-2-I | M3 | 1.1 | 2 | 5 | 12.1 | 2.5 | - | 8.4 | 1.3 | 0.8 | 10 |
| 153312 | QSM-M3-3-I | 1.6 | 3 | 8 | 15.7 | 2.5 | - | 11.5 | 1.5 | 2.3 | 10 | |
| 153314 | QSM-M3-4-I | 1.5 | 4 | 8 | 15.7 | 2.5 | - | 11.5 | 1.5 | 2.2 | 10 | |
| 153313 | QSM-M5-3-I | M5 | 1.9 | 3 | 8 | 16.2 | 3 | - | 11.5 | 2 | 3.2 | 10 |
| 153315 | QSM-M5-4-I | 2.5 | 4 | 8 | 16.2 | 3 | - | 11.5 | 2.5 | 3 | 10 | |
| 153317 | QSM-M5-6-I | 2.6 | 6 | 9.8 | 17.8 | 3 | - | 12 | 2.5 | 4.4 | 10 | |
| 153319 | QSM-M7-4-I | M7 | 3.1 | 4 | 9.8 | 18.9 | 5.5 | - | 11.5 | 3 | 6 | 10 |
| 133006 | QSM-M7-4-I-100 | 100 | ||||||||||
| 153321 | QSM-M7-6-I | 4.1 | 6 | 9.8 | 20.9 | 5.5 | - | 12 | 4 | 6.4 | 10 | |
| 153316 | QSM-1/8-4-I | R1/8 | 3.1 | 4 | 10 | 16.4 | 8 | 12.4 | 11.5 | 3 | 6.2 | 10 |
| 153318 | QSM-1/8-6-I | 4.1 | 6 | 10 | 18.2 | 8 | 14.2 | 12.5 | 4 | 5.6 | 10 | |
| 186266 | QSM-G1/8-4-I | G1/8 | 3.1 | 4 | 13 | 16.4 | 5.1 | - | - | 3 | 8.9 | 10 |
| 186267 | QSM-G1/8-6-I | 4.1 | 6 | 13 | 18.4 | 5.1 | - | - | 4 | 9.5 | 10 |

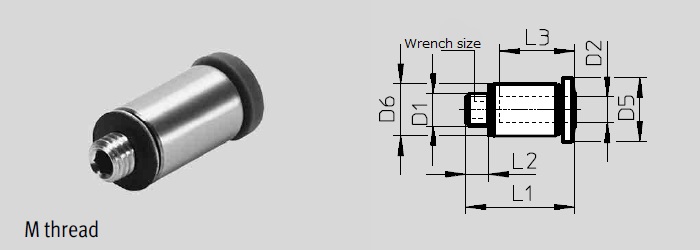

Push-in fitting QSM-...-I-R
-Male thread with internal hex
-Round release ring
Specifications and dimentions
| Manufacturer no. | Product code | Connection D1 | Nominal size [mm] | Tubing O.D. D2 | D5 Ø | L1 | L2 | L3 | L4 | Wrench size | Weight/piece [g] | PU |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 133001 | QSM-M3-3-I-R | M3 | 1.6 | 3 | 6.0 | 5.5 | 13.3 | 2.5 | 9.6 | 1.5 | 2.3 | 10 |
| 132914 | QSM-M3-3-I-R-100 | 100 | ||||||||||
| 133002 | QSM-M3-4-I-R | 1.5 | 4 | 7.8 | 8.0 | 15.7 | 2.5 | 11.5 | 1.5 | 2.2 | 10 | |
| 132915 | QSM-M3-4-I-R-100 | 100 | ||||||||||
| 133003 | QSM-M5-3-I-R | M5 | 1.9 | 3 | 7.8 | 8.0 | 16.2 | 3.0 | 11.5 | 2.0 | 3.2 | 10 |
| 132916 | QSM-M5-3-I-R-100 | 100 | ||||||||||
| 133004 | QSM-M5-4-I-R | 2.5 | 4 | 7.8 | 8.0 | 16.2 | 3.0 | 11.5 | 2.5 | 3 | 10 | |
| 132917 | QSM-M5-4-I-R-100 | 100 | ||||||||||
| 133005 | QSM-M5-6-I-R | 2.6 | 6 | 9.8 | 9.8 | 17.8 | 3.0 | 12 | 2.5 | 4.4 | 10 | |
| 132918 | QSM-M5-6-I-R-100 | 100 | ||||||||||
| 133007 | QSM-M7-6-I-R | M7 | 4.1 | 6 | 9.8 | 9.8 | 20.9 | 5.5 | 12 | 4.0 | 6.4 | 10 |
| 132919 | QSM-M7-6-I-R-100 | 100 |
