Push-in L-connector, QSL Series

Push-in L-connector QSL

Specifications and dimentions

Manufacturer no.	Product code	Tubing O.D. D1	Nominal size [mm]	D5 Ø	D6 Ø	H1	H2	Weight/ piece [g]
153070	QSL-4	4	2.3	10	3.2	16.9	6.5	5.1
153071	QSL-6	6	3.6	12.5	3.2	20.1	8	7.3
153072	QSL-8	8	4.6	15	4.2	22.4	10	11
153073	QSL-10	10	6.2	17.5	4.2	26.2	12	17
153074	QSL-12	12	7.7	21	4.2	29.4	14	25
153075	QSL-16	16	10.8	25	4.2	33.1	12	31

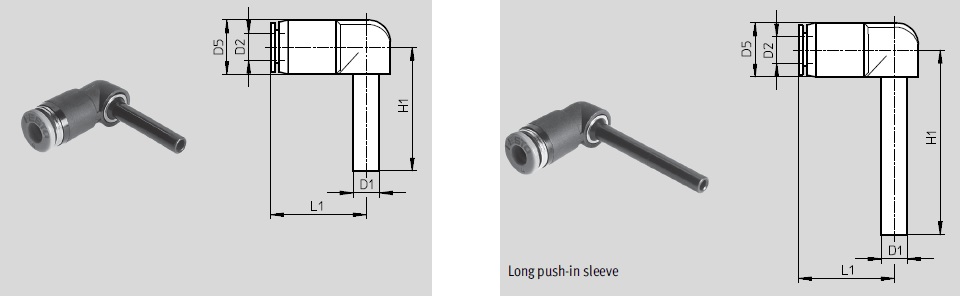

Push-in L-connector QSL-...H

with push-in sleeve

Specifications and dimentions

Manufacturer no.	Product code	Push-in sleeve Ø D1	Nominal size [mm]	Tubing O.D. D2	D5 Ø	H1	L1	Weight/piece [g]
153056	QSL-4H	4	2	4	10	25	16.8	2.7
153057	QSL-6H	6	3.2	6	13	29	19.8	3.9
153058	QSL-8H	8	4.7	8	15	31	21.8	5.7
153059	QSL-10H	10	5.7	10	18	34	24.9	9.6
153060	QSL-12H	12	6.8	12	21	39	28.9	15
Reducing
153061	QSL-6H-4	6	2.4	4	13	29	17.7	3.6
153062	QSL-8H-6	8	3.5	6	15	31	21.9	5.2
153063	QSL-10H-8	10	4.9	8	18	34	24.6	8
153064	QSL-12H-10	12	6.1	10	21	39	28.7	14
Long push-in sleeve
153065	QSL-4HL	4	2	4	10	36	16.8	2.8
153066	QSL-6HL	6	3.1	6	13	42	19.8	4.2
153067	QSL-8HL	8	4.5	8	15	47	21.8	6.2
153068	QSL-10HL	10	5.6	10	18	52	24.9	11
153069	QSL-12HL	12	6.7	12	21	60	29	16
