Temperature Controller (Digital Controller) [E5CD/E5CD-B]
Brand :
OMRON
Caution
Product Description
Optimizes control by detecting status changes, easily satisfy both productivity and quality. Lineup with newly added Push-in Plus terminal block type.
[Features]
· Automatic optimization of control according to the changes in system (Adaptive control).
· Equipped with function specialized for packaging machine (temperature sensors for packaging machine and filter automatic adjustment function).
· Equipped with function specialized for water-cooled extruders (water-cooling output adjustment).
· Indication data (power ON time, ambient temperature and output ON/OFF count).
· Basic performance is the same as the E5□C standard models.
· Draw-out structure for easy maintenance (screw terminal blocks only).
Dimensional Drawing of OMRON Temperature Controllers
Temperature Controllers E5CD

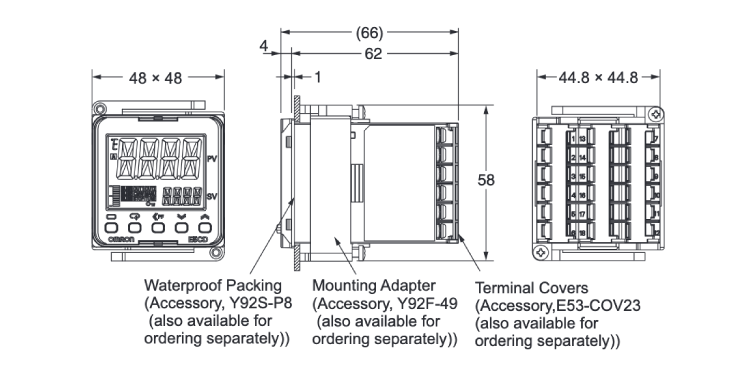

![Temperature Controller (Digital Controller) [E5CD/E5CD-B] E5CD Outline Drawing](http://th.misumi-ec.com/en/linked/material/mech/OMR1/PHOTO/221302214995_004.jpg)
Temperature Controllers E5CD-B

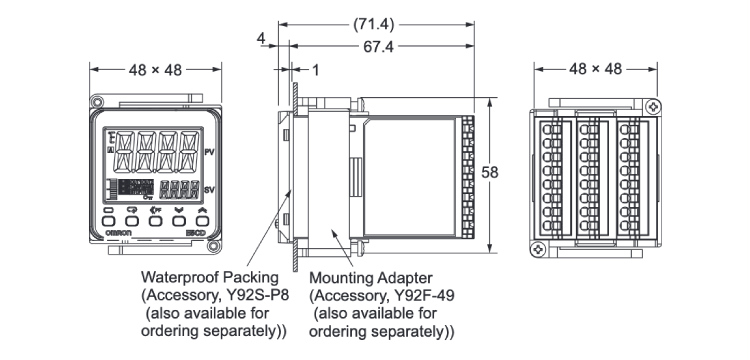

![Temperature Controller (Digital Controller) [E5CD/E5CD-B] E5CD-B Outline Drawing](http://th.misumi-ec.com/en/linked/material/mech/OMR1/PHOTO/221302214995_003.jpg)
Specification Table of OMRON Temperature Controllers
Temperature Controllers Names of each part

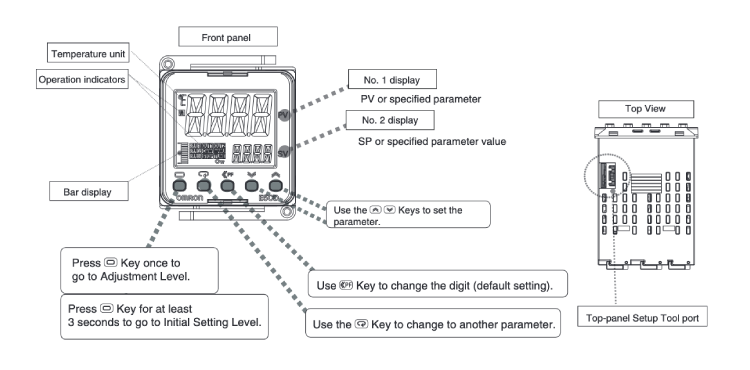

![Temperature Controller (Digital Controller) [E5CD/E5CD-B] Parts Name Diagram](http://th.misumi-ec.com/en/linked/material/mech/OMR1/PHOTO/221302214995_002.jpg)
Temperature Controllers Ratings/Performance
Temperature Controllers Rating
| Power supply voltage | Power supply voltage Type A: AC100-240V 50/60Hz Power supply voltage Type D: AC24V 50/60Hz /DC24V | |
|---|---|---|
| Allowable voltage fluctuation range | 85 to 110% of power supply voltage | |
| Power Consumption | Option -000 type: 5.2VA or less (AC100-240V), 3.1VA or less (AC24V) / 1.6W or less (DC24V) Other than the above: 6.5VA or less (AC100-240V), 4.1VA or less (AC24V) / 2.3W or less (DC24V) | |
| Sensor Input | Temperature Controllers input Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, PLII Platinum resistance thermometer: Pt100, JPt100 Non-contact Temperature Controllers sensor (ES1B): 10 to 70°C, 60 to 120°C, 115 to 165°C, 140 to 260°C Analog input Current input: 4 to 20mA, 0 to 20mA Voltage input: 1 to 5V, 0 to 5V, 0 to 10V | |
| Input impedance | Current input: 150 Ω or less, voltage input: 1 MΩ or more (When connecting to ES2-HB-N/THB-N, use a 1:1 connection.) | |
| Temperature Controllers Method | ON/OFF or 2-degree-of-freedom PID (with autotuning) | |
| Temperature Controllers Output | Relay Output | 1a AC250V 3A (resistive load) Electrical life 100,000 times Minimum applicable load 5V 10mA (reference value) |
| Voltage output (for driving SSR) | Output voltage DC12V±20% (PNP) Maximum load current 21mA, with short circuit protection circuit | |
| Linear Current Output | DC4~20mA/DC0~20mA Load: 500Ω or less Resolution: Approx. 10,000 | |
| Auxiliary Output | Score | 2 points |
| Output Specifications | Relay output 1a AC250V, E5CD 3A (resistive load), E5CD-B 2A (resistive load) Electrical life 100,000 times Minimum applicable load 5V 10mA (reference value) | |
| Event Input | Score | 2 points |
| External contact input specifications | During contact input: ON: 1kΩ or less OFF: 100kΩ or more | |
| Non-contact input: ON: Residual voltage 1.5V or less OFF: Leakage current 0.1mA or less | ||
| Current output: Approx. 7mA (per contact) | ||
| Transmission Output | Score | 1 point (depending on the model): Type with transmission output |
| Output Specifications | Current output: DC4-20mA Load: 500Ω Resolution: Approx. 10,000 Linear voltage output: DC1-5V Load: 1kΩ or more Resolution: Approx. 10,000 | |
| Setting method | Digital setting by front keys | |
| Instruction method | 11-segment digital display, single-light-emitting display, bar display character height PV: 14.9 mm, SV: 7.1 mm | |
| Multi-SP function* | Up to eight target values (SP0 to SP7) can be stored and selected by event input, key operation, or serial communication | |
| Bank switching function | none | |
| Other features | Adaptive Temperature Controllers, automatic filter adjustment function, water-cooled output adjustment function, predictive data (power-on time monitor, ambient temperature monitor, control output ON/OFF count monitor), parameter mask function, operation specification function at power-on, manual output, heating/cooling control, loop break alarm function, SP lamp, alarm function, heater break detection function (including SSR failure), 40% AT, 100% AT, manipulated variable limit, input digital filter, robust tuning, PV input correction, run/stop, protect, square root calculation function, manipulated variable change rate limit, simple calculation, temperature status display function, simple program function, input moving average, display brightness setting | |
| Ambient Temperature Controllers | -10 to +55°C (but no condensation or freezing) / 3-year warranty: -10 to +50°C (but no condensation or freezing) when installed as a standard unit | |
| Ambient humidity | Relative humidity 25-85% | |
| Storage temperature | -25 to +65°C (but no condensation or freezing) | |
| Altitude | Under 2,000m | |
| Recommended fuse | T2A, AC250V Time-lag low breaking capacity | |
| Installation environment | Overvoltage Category II, Pollution Degree 2 (EN/IEC/UL 61010-1) | |
* If you select from event input, the maximum number of target values is 4.
Temperature Controllers Performance
| Indication accuracy (ambient temperature 23℃) | Thermocouple: (±0.3% of indicated value or ±1°C, whichever is greater) ±1 digit or less *1 Platinum resistance thermometer: (±0.2% of indicated value or ±0.8°C, whichever is greater) ±1 digit or less Analog input: ±0.2%FS ±1 digit or less CT input: ±5%FS ±1 digit or less | |
|---|---|---|
| Transmission Output Accuracy | ±0.3%FS or less | |
| Temperature Controllers effect *2 | Thermocouple input (R, S, B, C/W, PLII): (±1% of indicated value or ±10°C, whichever is greater) ±1 digit or less Other thermocouple input: (±1% of indicated value or ±4°C, whichever is greater) ±1 digit or less *3 Platinum resistance thermometer input: (±1% of indicated value or ±2°C, whichever is greater) ±1 digit or less Analog input: ±1%FS ±1 digit or less CT input: ±5%FS ±1 digit or less | |
| Voltage effect *2 | ||
| Effects of electromagnetic interference (according to EN 61326-1) | ||
| Input Sampling Period | 50ms | |
| Adjustment Sensitivity | Temperature input: 0.1 to 999.9°C/°F (in 0.1°C/°F increments) Analog input: 0.01 to 99.99%FS (in 0.01%FS increments) | |
| Proportional band (P) | Temperature Controllers input: 0.1 to 999.9°C/°F (in 0.1°C/°F units) Analog input: 0.1 to 999.9%FS (in 0.1%FS units) | |
| Integration time (I) | 0 to 9999s (in 1s units), 0.0 to 999.9s (in 0.1s units) *4 | |
| Differential time (D) | 0 to 9999s (in 1s units), 0.0 to 999.9s (in 0.1s units) *4 | |
| Cooling proportional band (P) | Temperature Controllers input: 0.1 to 999.9°C/°F (in 0.1°C/°F units) Analog input: 0.1 to 999.9%FS (in 0.1%FS units) | |
| Cooling integration time (I) | 0 to 9999s (in 1s units), 0.0 to 999.9s (in 0.1s units) *4 | |
| Cooling differential time (D) | 0 to 9999s (in 1s units), 0.0 to 999.9s (in 0.1s units) *4 | |
Dedicated to adaptive control | Proportional band for target response (P) | Temperature Controllers input: 0.1 to 999.9°C/°F (in 0.1°C/°F increments) |
| Integral time for target response (I) | 0 to 9999s (in 1s units), 0.0 to 999.9s (in 0.1s units) *4 | |
| Derivative time for target response (D) | 0 to 9999s (in 1s units), 0.0 to 999.9s (in 0.1s units) *4 | |
Proportional band for disturbance (P) | Temperature Controllers input: 0.1 to 999.9°C/°F (in 0.1°C/°F increments) | |
| Disturbance integral time (I) | 0 to 9999s (in 1s units), 0.0 to 999.9s (in 0.1s units) *4 | |
| Disturbance Differential Time (D) | 0 to 9999s (in 1s units), 0.0 to 999.9s (in 0.1s units) *4 | |
| Control Period | 0.1, 0.2, 0.5, 1 to 99 s (in 1 s increments) | |
| Manual Reset Value | 0.0 to 100.0% (in 0.1% increments) | |
| Alarm Setting Range | -1999 to 9999 (decimal point position depends on input type) | |
| Effect of signal source resistance | Thermocouple: 0.1℃/Ω or less (100Ω or less), Platinum resistance thermometer: 0.1℃/Ω or less (10Ω or less) | |
| Insulation resistance | 20MΩ or more (500V DC applied) | |
| Withstand voltage | AC3,000V 50 or 60Hz 1min (opposite polarity live terminals) | |
| vibration | malfunction | 10~55Hz 20m/s2 3 axis direction 10min |
| Durability | 10~55Hz 20m/s2 3 axial directions 2h | |
| impact | malfunction | 100m/s23 axial directions, 3 times each |
| Durability | 300m/s23 axial directions, 3 times each | |
| mass | Main unit: Approx. 120g Mounting adapter: Approx. 10g | |
| Protective structure | Front: IP66, Rear case: IP20, Terminal: IP00 | |
| Memory Protection | Non-volatile memory (number of writes: 1 million times) | |
| Configuration Tool | E5CD: CX-Thermo Ver.4.66 or higher E5CD-B: CX-Thermo Ver.4.67 or higher | |
| Configuration tool port | Top of E5CD/E5CD-B: Use the E58-CIFQ2 USB-serial conversion cable to connect to the USB port on the computer. *5 | |
| standard | Certification Standards | cULus: UL 61010-1/CSA C22.2 No.61010-1, Korea Wireless Regulations (Radio Act: KC Mark) |
| Compliance standards | EN 61010-1 (IEC 61010-1), RCM standard | |
| EMC Directive | EMI EN 61326-1 *6 Radiated interference field strength EN 55011 Group1 class A Noise terminal voltage EN 55011 Group1 class A EMS EN 61326-1 *6 Electrostatic discharge immunity EN 61000-4-2 Electromagnetic field immunity EN 61000-4-3 Burst noise immunity EN 61000-4-4 Conducted interference immunity EN 61000-4-6 Surge immunity EN 61000-4-5 Voltage dip/interruption immunity EN 61000-4-11 | |
*1. K (-200 to 1300°C range), T, N below -100°C, and U, L are within ±2°C ±1 digit. B below 400°C is not specified. B from 400 to 800°C is within ±3°C.
R, S below 200°C is within ±3°C ±1 digit. C/W is (±0.3% PV or ±3°C, whichever is greater) ±1 digit.
PLII is (±0.3% PV or ±2°C, whichever is greater) ±1 digit.
*2. Conditions: Ambient Temperature Controllers: -10°C to 23°C to 55°C Voltage range: -15 to +10% of rated voltage
*3. K sensor below -100°C is within ±10°C
*4. The unit depends on the "Integral/Differential time unit" setting.
*5. External serial communication (RS-485) and USB-serial conversion cable communication can be used simultaneously.
*6. Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)
