Multi-Channel Digital Pressure Sensor Controller PSE200 Series
Caution
- See catalog for specification details.
- Product images may be representative images. Refer to the catalog for details.
Product Description
Multi-Channel Digital Pressure Sensor Controller PSE200 Series that can monitor 4 pressure sensors from a single controller.
[Features]
· Auto-shift function / Auto-preset function / Auto-identification function / Copy function / Channel scan function
· Zero clear function / Keylock function / Peak and bottom values hold and display function / Unit switching function.
· Display value calibration function / Anti-chattering function.
[Applications]
· Used for suction confirmation / leak testing / ejector supply pressure check / placement verification / hydraulic cylinder crimp check.
· Cleaning line supply pressure check / suction verification of work pieces containing moisture.
Multi-Channel Digital Pressure Sensor Controller PSE200 Series Details
Multi-Channel Digital Pressure Sensor Controller PSE200 Series product image
Multi-Channel Digital Pressure Sensor Controller PSE200 Series Specifications
Model Number Notation

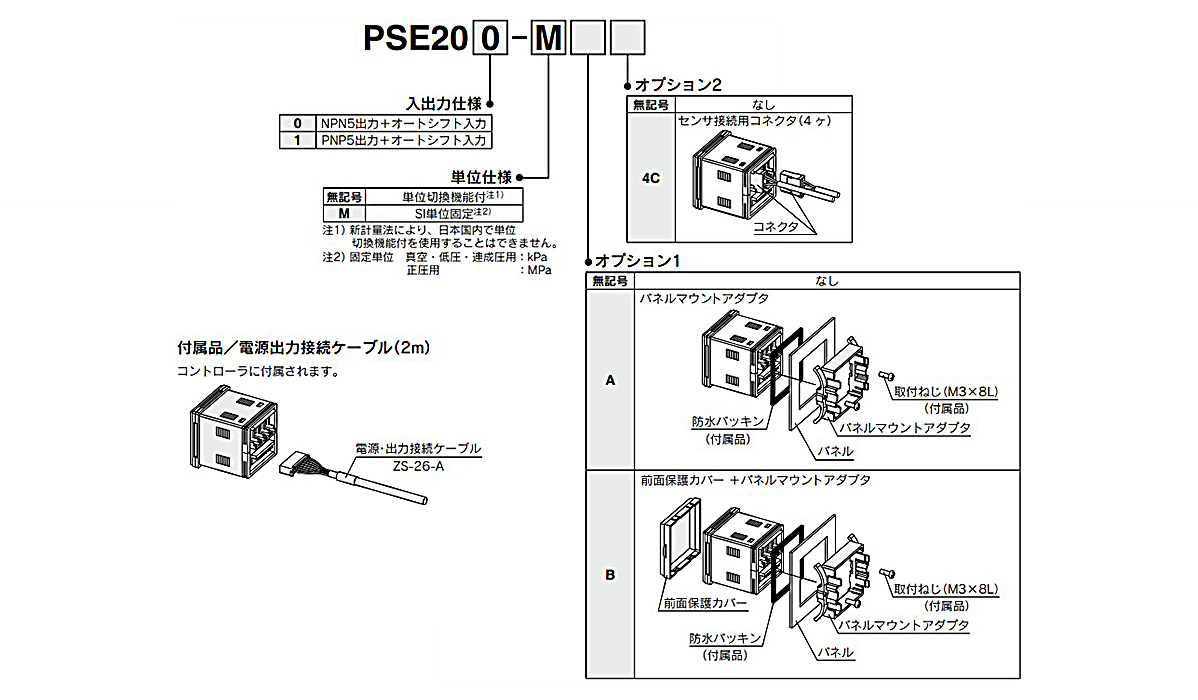

Model number example
| Model | PSE200 | PSE201 | |
|---|---|---|---|
| Power supply voltage | 12 to 24 V DC ±10%, Ripple (p-p) 10% or less (with reverse connection protection) | ||
| Current Consumption | 55 mA or less (Current consumption for sensor is not included) | ||
| Power supply voltage for sensor | [Power supply voltage] -1.5 V | ||
| Power supply current for sensorNote 1) | Maximum 40 mA (100 mA maximum for the total power supply when 4 sensors are input) | ||
| Sensor input | - | 1 to 5 V DC (Input impedance: approx. 800 kΩ) | |
| Number of inputs | 4 inputs | ||
| Input protection | With excess voltage protection (Up to 26.4 V) | ||
| Switch output | - | NPN open collector output: 5 outputs (Sensor input 1CH: 2 outputs, 2 to 4CH: 1 output) | PNP open collector output: 5 outputs (Sensor input 1CH: 2 outputs, 2 to 4CH: 1 output) |
| Max Load Current | 80 mA | ||
| Maximum applied voltage | 30 V | - | |
| Residual Voltage | 1 V or less (with load current of 80 mA) | ||
| Response time | 5 ms or less (Response time selections with anti-chattering function: 20 ms, 160 ms, 640 ms) | ||
| Short-circuit protection | Equipped | ||
| Repeat accuracy | ±0.1% F.S. ±1 digit | ||
| Hysteresis | Hysteresis mode | Adjustable (can be set from 0) | |
| Window comparator mode | Fixed (3 digits) | ||
| Display Method | For measured value display: 4-digit 7-segment display, Display color: orange (Sampling frequency: 4 times / sec) For channel display: 1-digit 7-segment display, Display color: red | ||
| Display accuracy (at an operating temperature of 25°C) | ±0.5% F.S. ±1 digit | ||
| Status LEDs | Red (lights up when output is turned ON) | ||
| Auto-shift input | Non-voltage input (reed or solid state), Input 10 ms or more, Independently controllable auto-shift function ON/OFF | ||
| Auto-identification function | With auto-identification functionNote 2) | ||
| Environmental resistance | Enclosure | Front face: IP65 (when panel mounted), Others: IP40Note 3) | |
| Ambient temperature range | During operation: 0 to 50°C, During storage: -10 to 60°C (No condensation or freezing) | ||
| Ambient humidity range | When operating/stored: 35 to 85% RH (no condensation) | ||
| Temperature characteristics | ±0.5% F.S. (25°C reference) | ||
| Connection | Power supply / output connection: 8P connector, Sensor connection: e-con | ||
| Material | Housing: PBT, Display: transparent nylon, Back rubber cover: CR | ||
| Weight | 60 g (excluding power supply / output connection cable) | ||
| Power supply / Output connection cable | Heat-resistant heavy-duty cable, 8 cores ø4.8 (4.8‑mm diameter) 2 m, Conductor area: 0.15 mm2 Insulator O.D.: 0.9 mm | ||
| Standard | CE / CSA | ||
Note 1) If the Vcc and 0 V side of the sensor input connector are short circuited, the inside of the controller will be damaged.
Note 2) Auto-identification function comes with the "PSE53□ Series" only. Other series made by the same manufacturer (PSE540, 560, 570) are not equipped with this function.
Note 3) IP40 specification when using the □48 conversion adapter.
Internal Circuits and Wiring Examples
PSE200-(M)□
- NPN open collector 5 outputs + Auto-shift 1 input specification
PSE201-(M)□
- PNP open collector 5 outputs + Auto-shift 1 input specification
Multi-Channel Digital Pressure Sensor Controller PSE200 Series Dimensions
PSE200/PSE201
(Unit: mm)

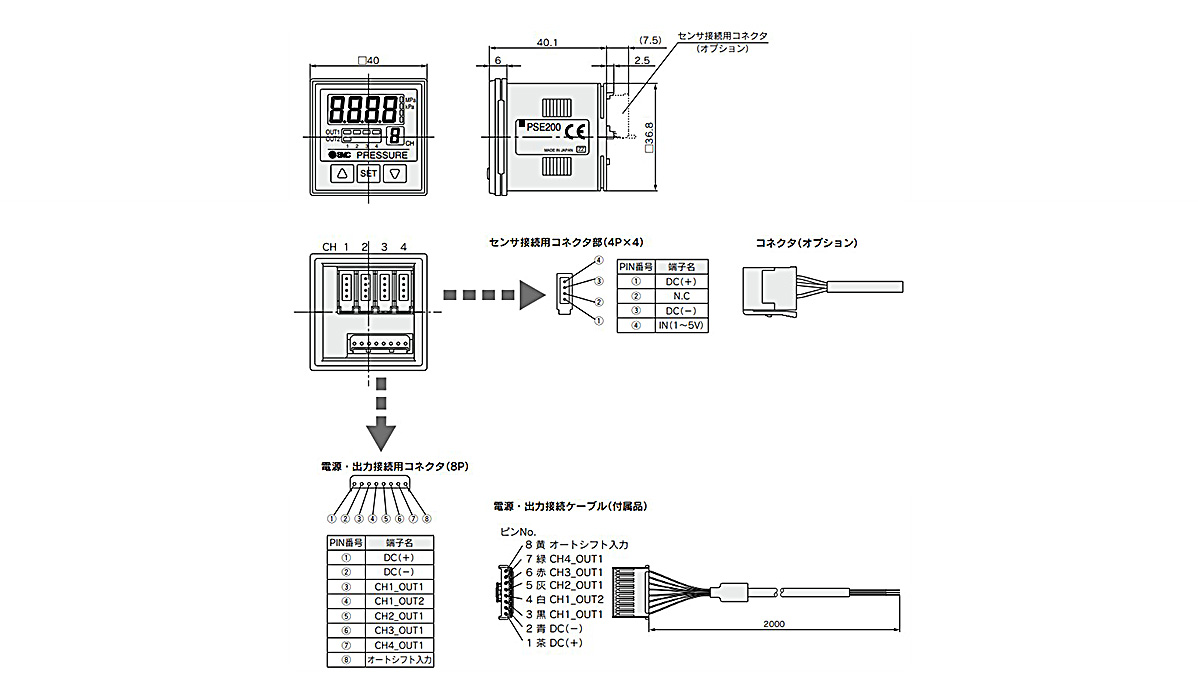

PSE200/PSE201 dimensional drawing
Front Protective Cover + Panel-Mount Adapter
Multi-Channel Digital Pressure Sensor Controller PSE200 Series (Front Protective Cover + Panel-Mount Adapter) dimensional drawing
