Mechanically Jointed Rodless Cylinder With Protective Cover, MY1□W Series
Caution
- Refer to the catalog for product specifications.
- Product pictures are representations. CAD data is not supported by some of the model numbers.
Product Description
An air slide table made by SMC
[Features]
· Improved dust-proofing and water resistance for use in environments where dust and water are present in the air.
· The base cylinder option can be used as is
· A cover unit and a side seal unit can be retrofitted to the conventional MY1M/MY1C series
· Compact design with a suppressed overall length
· A non-contact auto switch can be mounted for improved water resistance
Specifications of Mechanical Joint Type Rodless Cylinder With Protective Cover MY1□W Series
Features of Mechanical Joint Type Rodless Cylinder With Protective Cover MY1□W Series
Model Number Notation
How to order: image
Specifications Table
| Tube Internal Diameter (mm) | 16 | 20 | 25 | 32 | 40 | 50 | 63 | |
|---|---|---|---|---|---|---|---|---|
| Fluid | Air | |||||||
| Operation Type | Double-acting type | |||||||
| Operating Pressure Range | MY1MW: 0.15 to 0.8 MPa, MY1CW: 0.1 to 0.8 MPa | |||||||
| Proof Pressure | 1.2 MPa | |||||||
| Ambient and fluid temperature | 5 to 60°C | |||||||
| Cushioning | Air cushion | |||||||
| Lubrication | Not required | |||||||
| Stroke Length Tolerance | 1,000 or less (0～+1.8) 1000 to 3000 (0～+2.8) | 2700 or less (0 to +1.8), 2,701 to 3,000 (0～+2.8) | ||||||
| Piping Connection Port Diameter | Front/side port | M5 × 0.8 | Rc 1/8 | Rc 1/4 | Rc3/8 | |||
| Bottom port | ø4 (Port size 4 mm) | ø6 (Port size 6 mm) | ø8 (Port size 8 mm) | ø10 (Port size 10 mm) | ||||
- * The stroke fine adjustment range is the adjustment range on one side when mounted on the cylinder.
Dimensional Drawing
ø16 (tube inner diameter: 16 mm), ø20 (Tube inner diameter: 20 mm)
(Units: mm)
Dimensional drawing of ø16 (tube inner diameter: 16 mm) and ø20 (tube inner diameter: 20 mm)
(Units: mm)
Image of dimensions table (A to NH) for tube inner diameter: 16 mm / 20 mm
(Units: mm)
Image of dimensions table (NW to XX) for tube inner diameter: 16 mm / 20 mm
Piping hole dimension table for centralized bottom piping
* Please process this on the mounting side.
(Units: mm)
Image of piping hole dimensions for centralized piping on the bottom of the tube with inner diameter of 16 mm / 20 mm
ø25 (tube inner diameter: 25 mm), ø32 (tube inner diameter: 32 mm), ø40 (Tube inner diameter: 40 mm)
(Units: mm)

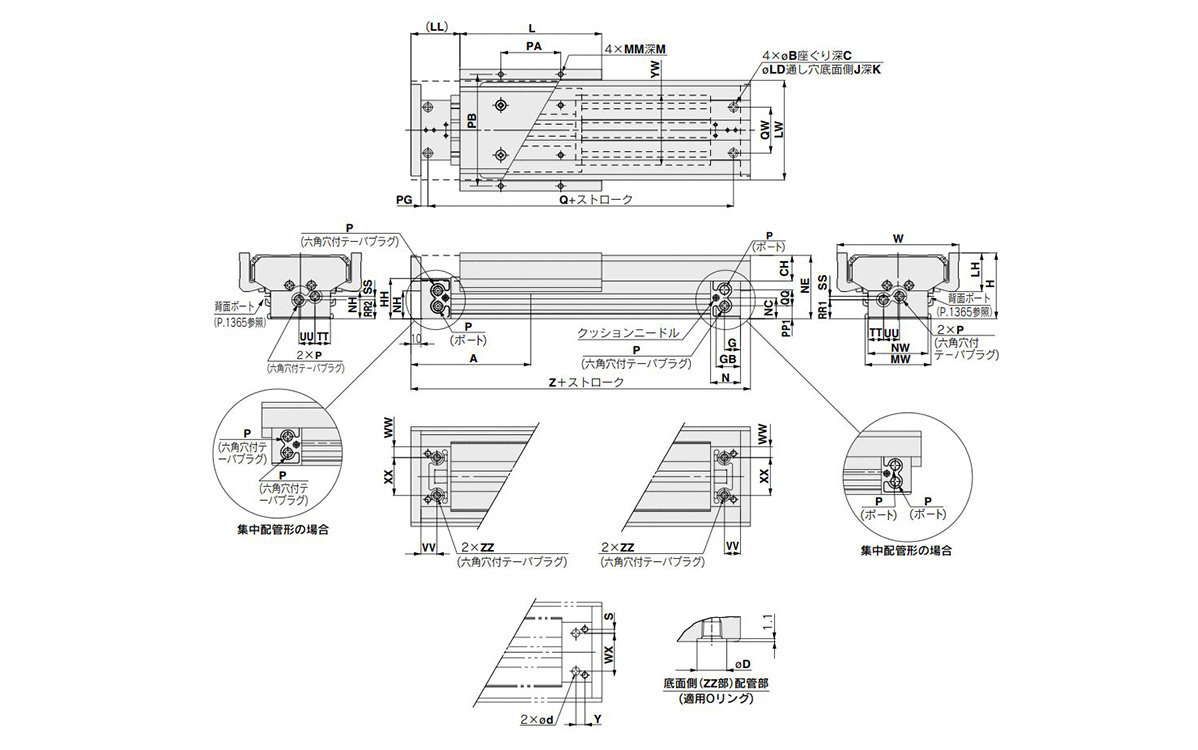

Dimensional drawing of ø25 (tube inner diameter: 25 mm), ø32 (tube inner diameter: 32 mm), ø40 (tube inner diameter: 40 mm)
(Units: mm)
Image of dimensions table (A to NH) for tube inner diameter: 25 mm / 32 mm / 40 mm
(Units: mm)

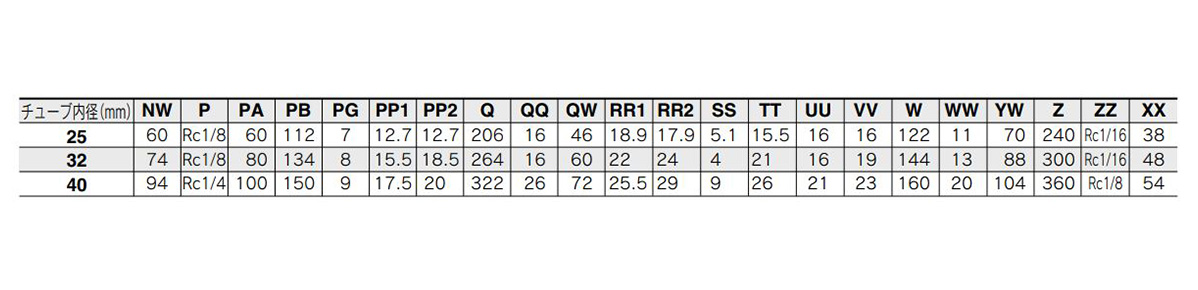

Image of dimensions table (NW to XX) for tube inner diameter: 25 mm / 32 mm / 40 mm
Piping hole dimension table for centralized bottom piping
* Please process this on the mounting side.
(Units: mm)
Image of piping hole dimension table for centralized bottom piping of the tube with inner diameter of 25 mm / 32 mm / 40 mm
ø50 (tube inner diameter: 50 mm), ø63 (Tube inner diameter: 63 mm)
(Units: mm)

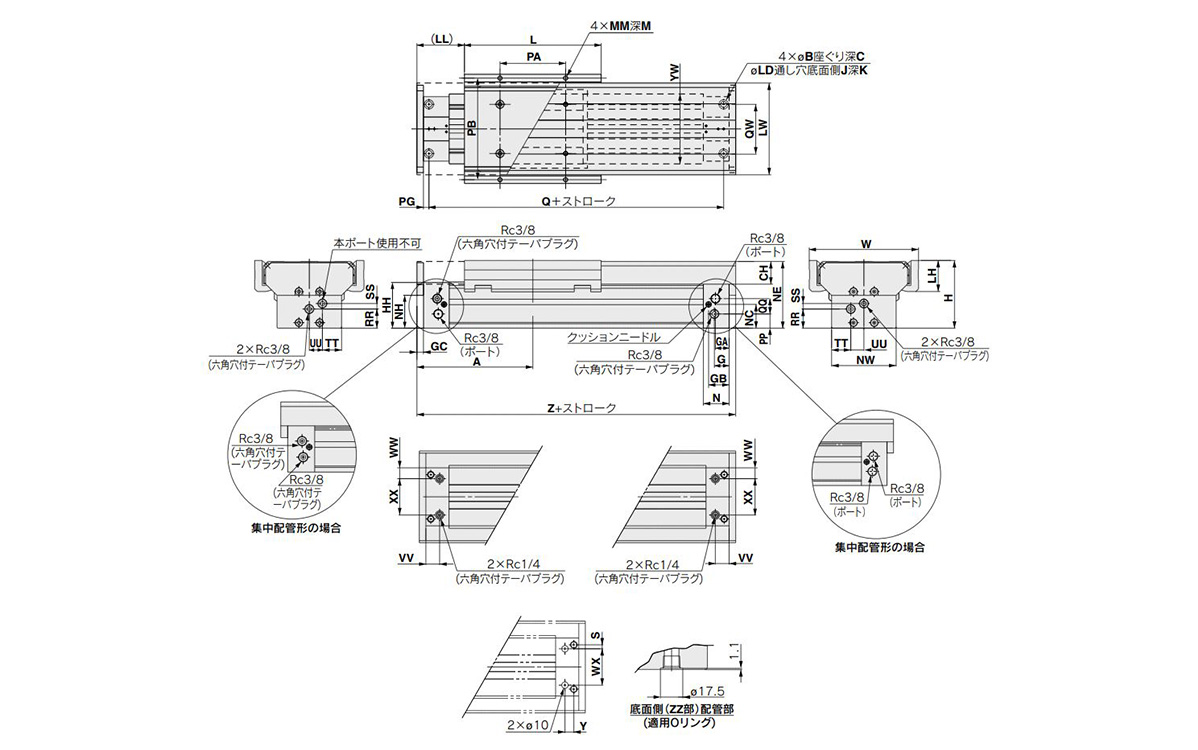

Dimensional drawing of ø50 (tube inner diameter: 50 mm) and ø63 (tube inner diameter: 63 mm)
(Units: mm)

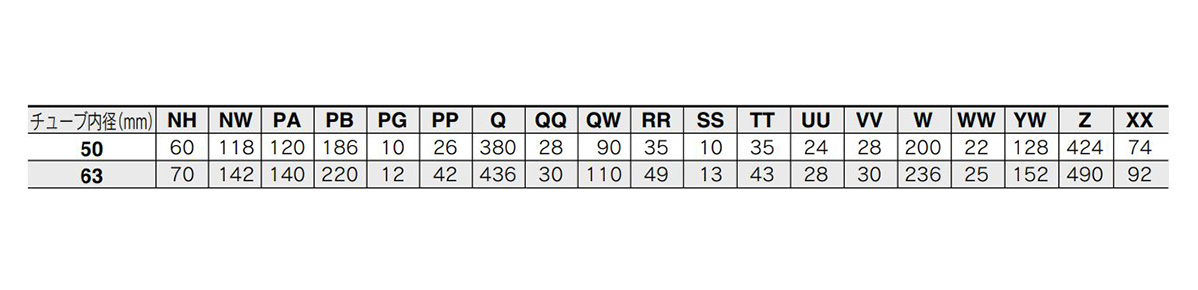

Image of dimensions table (A to NE) for tube inner diameter: 50 mm / 63 mm
(Units: mm)

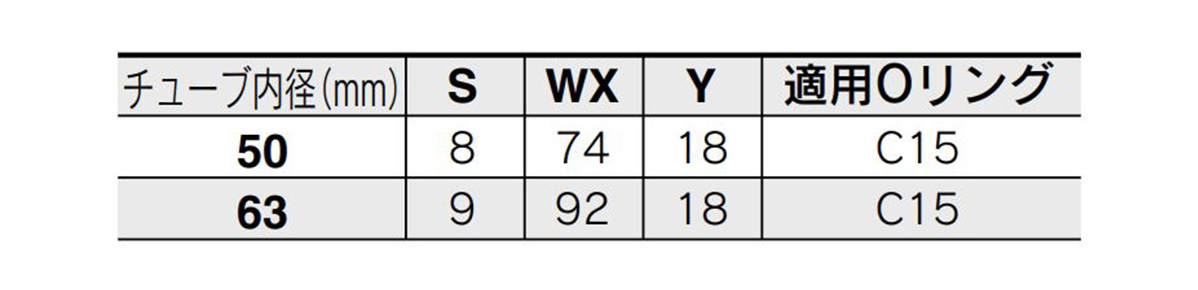

Image of dimensions table (NH to XX) for tube inner diameter: 50 mm / 63 mm
Piping hole dimension table for centralized bottom piping
* Please process this on the mounting side.
(Units: mm)
Piping hole dimension table for centralized bottom piping of the tube with inner diameter of 50 mm / 63 mm
Please refer to the table below for details about lead wire / connector specifications.
