Mechanically Jointed Rodless Cylinder, Basic Type, MY1B Series
Caution
- Refer to the catalog for product specifications.
- Product pictures are representations. CAD data is not supported by some of the model numbers.
Product Description
Air slide table made by SMC
[Features]
· Capable of being used in combination with various guides depending on the conditions
· Simple, space-saving design without any guides
· A wide variety is available from ø10 to ø100
Details of Mechanical Joint Type Rodless Cylinder, Basic Type MY1B Series

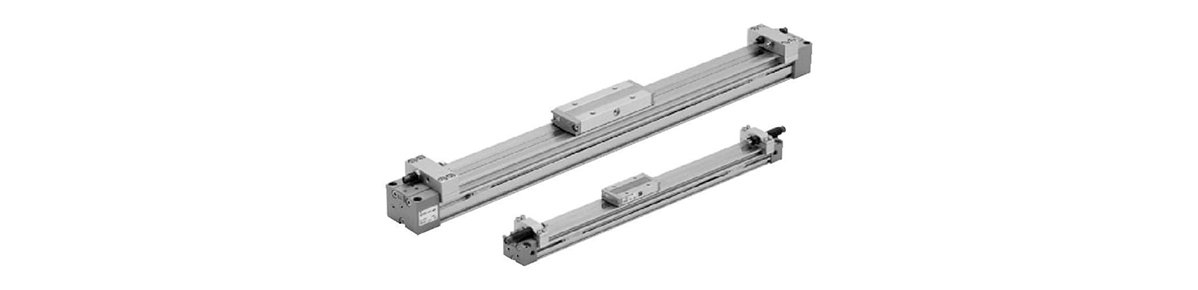

Product image of Mechanical Joint Type Rodless Cylinder, Basic Type MY1B Series

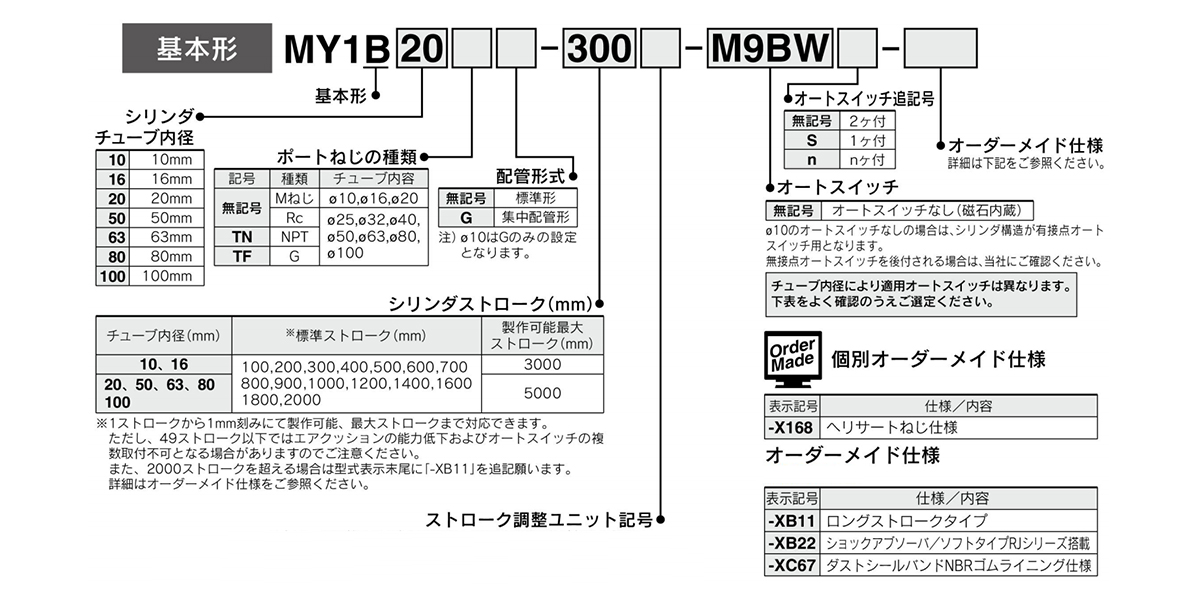

Model Number Notation
Model number examples
Specifications of Mechanical Joint Type Rodless Cylinder, Basic Type MY1B Series
| Tube Internal Diameter (mm) | 10 | 16 | 20 | 50 | 63 | 80 | 100 | |
|---|---|---|---|---|---|---|---|---|
| Fluid | Air | |||||||
| Operation Type | Double-acting type | |||||||
| Operating Pressure Range | 0.2 to 0.8 MPa | 0.15 to 0.8 MPa | 0.1 to 0.8 MPa | |||||
| Proof Pressure | 1.2 MPa | |||||||
| Ambient and fluid temperature | 5 to 60°C | |||||||
| Cushioning | Rubber cushion | Air cushion | ||||||
| Lubrication | Not required | |||||||
| Stroke Length Tolerance | 1,000 or less (0～+1.8) 1,001 to 3,000 (0～+2.8) | 2,700 or less (0～+1.8) 2,701 to 5,000 (0～+2.8) | ||||||
| Piping Connection Port Diameter | Front/side port | M5 × 0.8 | Rc 3/8 | RC 1/2 | ||||
| Bottom port | - | ø4 (Port size 4 mm) | ø10 (Port size 10 mm) | ø18 (Port size 18 mm) | ||||
Piston Speed
| Tube Internal Diameter (mm) | 10 | 16 | 20 | 50 to 100 | |
|---|---|---|---|---|---|
| No stroke adjustment unit | 100 to 500 mm/s | 100 to 1,000 mm/s | |||
| Stroke adjustment unit | A unit | 100 to 200 mm/s | 100 to 1,000 mm/s *1) | - | |
| L unit, H unit | 100 to 1,000 mm/s | - | 100 to 1,500 mm/s *2) | - | |
*1) Be aware that if the stroke adjustment allowance with the adjust bolt leveling mount increases, the air cushion capacity will decrease.
Meanwhile, in ranges exceeding the air cushion stroke, the working piston speed will become 100 to 200 mm/s.
*2) The piston speed used for centralized piping is 100 to 1,000 mm/s.
*3) Use at a speed within the range of the absorption capacity. Please refer to the catalog.
Theoretical Output Table
(Unit: N)
| Tube inner diameter (mm) | Piston Area (mm^2) | Operating Pressure (MPa) | ||||||
|---|---|---|---|---|---|---|---|---|
| 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 | ||
| 10 | 78 | 15 | 23 | 31 | 39 | 46 | 54 | 62 |
| 16 | 200 | 40 | 60 | 80 | 100 | 120 | 140 | 160 |
| 20 | 314 | 62 | 94 | 125 | 157 | 188 | 219 | 251 |
| 50 | 1,962 | 392 | 588 | 784 | 981 | 1,177 | 1,373 | 1,569 |
| 63 | 3,115 | 623 | 934 | 1,246 | 1,557 | 1,869 | 2,180 | 2,492 |
| 80 | 5,024 | 1,004 | 1,507 | 2,009 | 2,512 | 3,014 | 3,516 | 4,019 |
| 100 | 7,850 | 1,570 | 2,355 | 3,140 | 3,925 | 4,710 | 5,495 | 6,280 |
*) Theoretical output (N) = pressure (MPa) × pressure receiving area (mm^2).
Weight Table
(Unit: kg)
| Tube inner diameter (mm) | Basic weight | Extra weight per 50 strokes | Weight of Moving Parts | Side support Bracket weight (Per pair) | Stroke adjustment unit weight (Per unit) | ||
|---|---|---|---|---|---|---|---|
| A/B type | A unit weight | L unit weight | H unit weight | ||||
| 10 | 0.15 | 0.04 | 0.03 | 0.003 | 0.01 | - | 0.02 |
| 16 | 0.61 | 0.06 | 0.07 | 0.01 | 0.04 | - | - |
| 20 | 1.06 | 0.10 | 0.14 | 0.02 | 0.05 | 0.05 | 0.10 |
| 50 | 7.78 | 0.44 | 1.40 | 0.04 | - | - | - |
| 63 | 13.10 | 0.70 | 2.20 | 0.08 | - | - | - |
| 80 | 20.70 | 1.18 | 4.80 | 0.17 | - | - | - |
| 100 | 35.70 | 1.97 | 8.20 | 0.17 | - | - | - |
Calculation method/example: MY1B20-300 A
- Basic weight: 1.06 kg
- Cylinder Stroke: 300st
- Extra weight: 0.10/50st
- A unit weight: 1.76 kg
1.06 + 0.10 × 300 ÷ 50 + 0.05 × 2 ≒ 2.17 kg
Structural drawing of centralized piping type / MY1B10G
Structural drawing of centralized piping type / MY1B10G

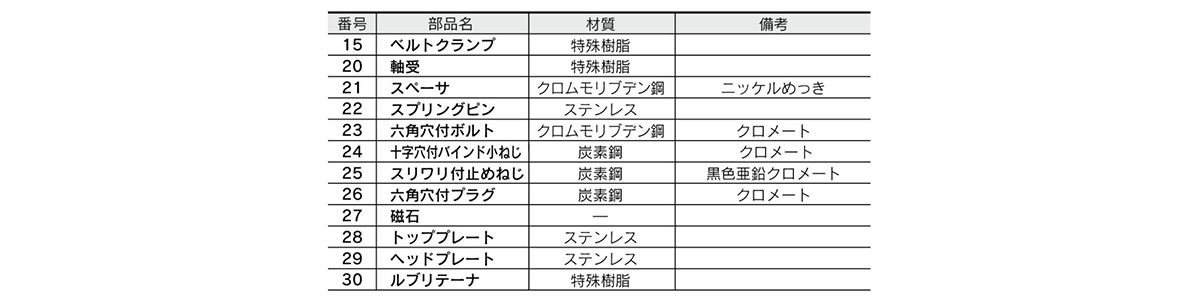

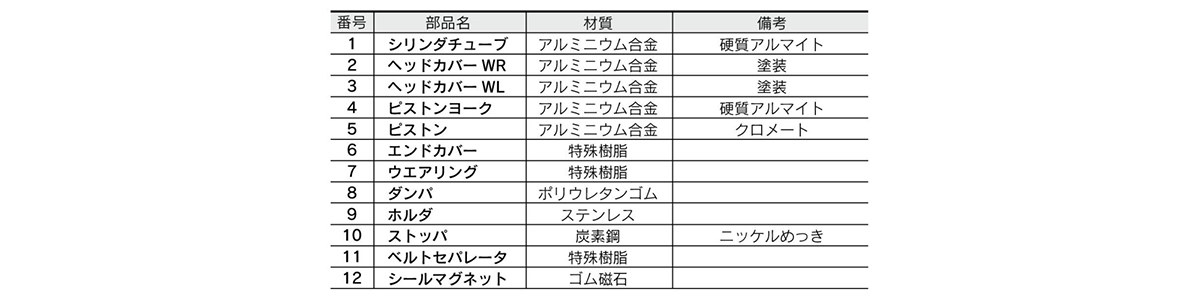

Component parts table of centralized piping type/ MY1B10G
Image 1 for components parts table of centralized piping type / MY1B10G
Image 2 for components parts table of centralized piping type / MY1B10G

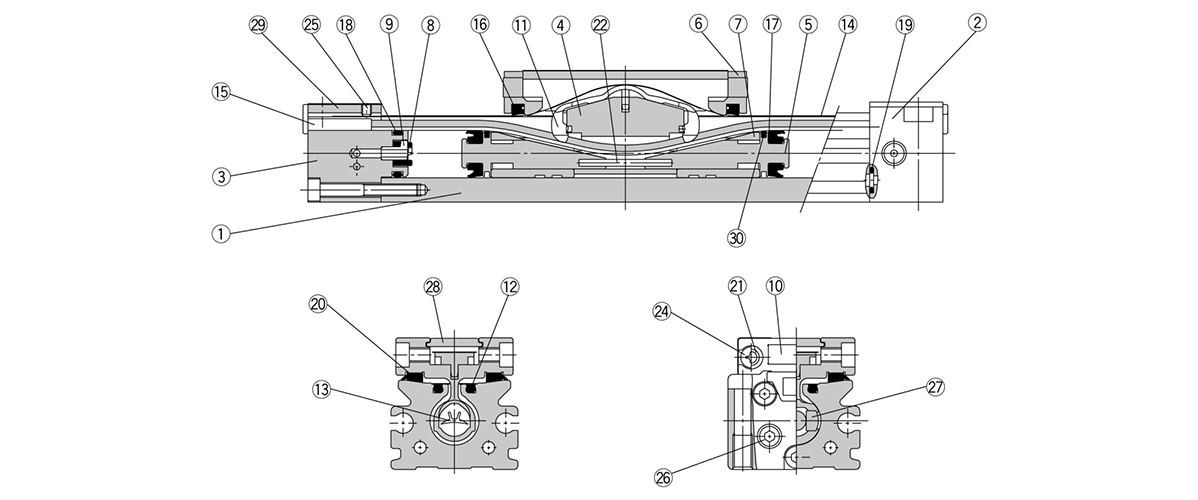

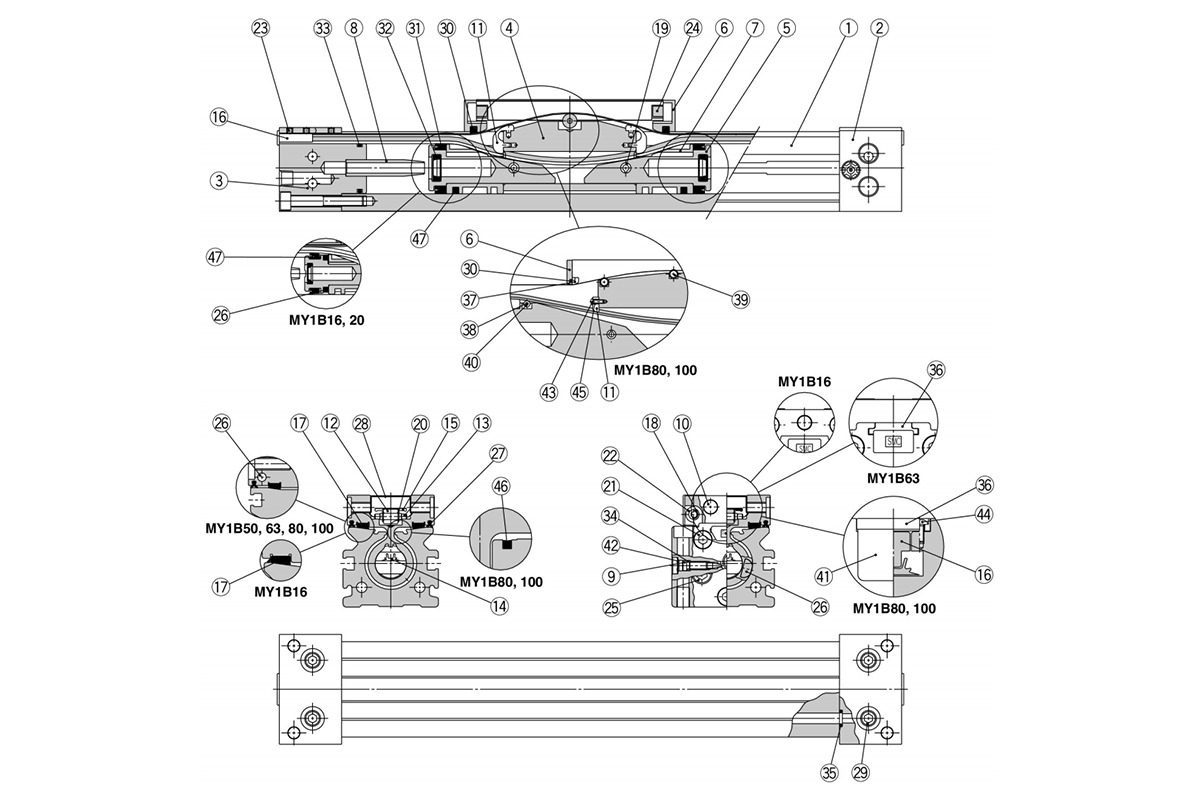

Structural drawing of MY1B16, MY1B20, MY1B50 to MY1B100
Structural drawing of MY1B16, MY1B20, MY1B50 to MY1B100

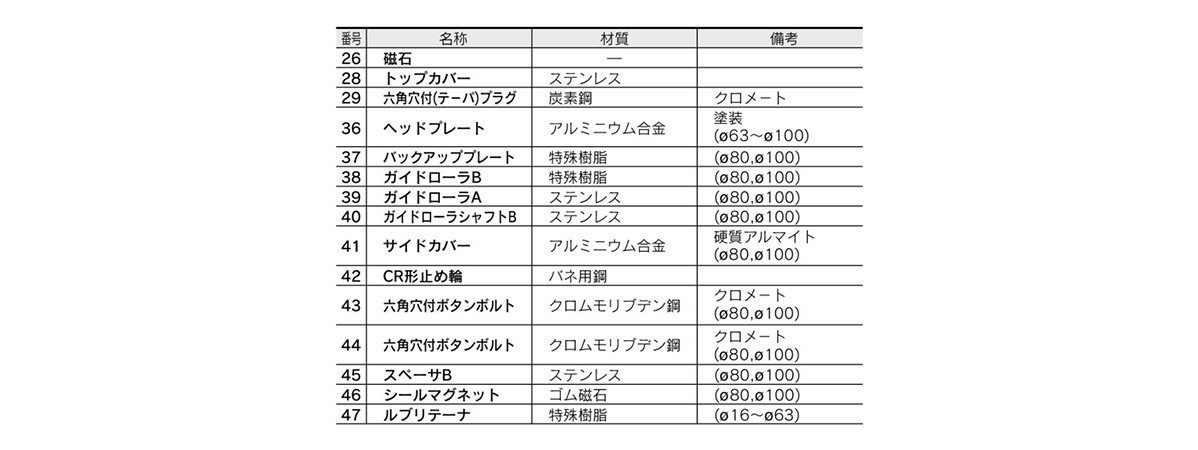

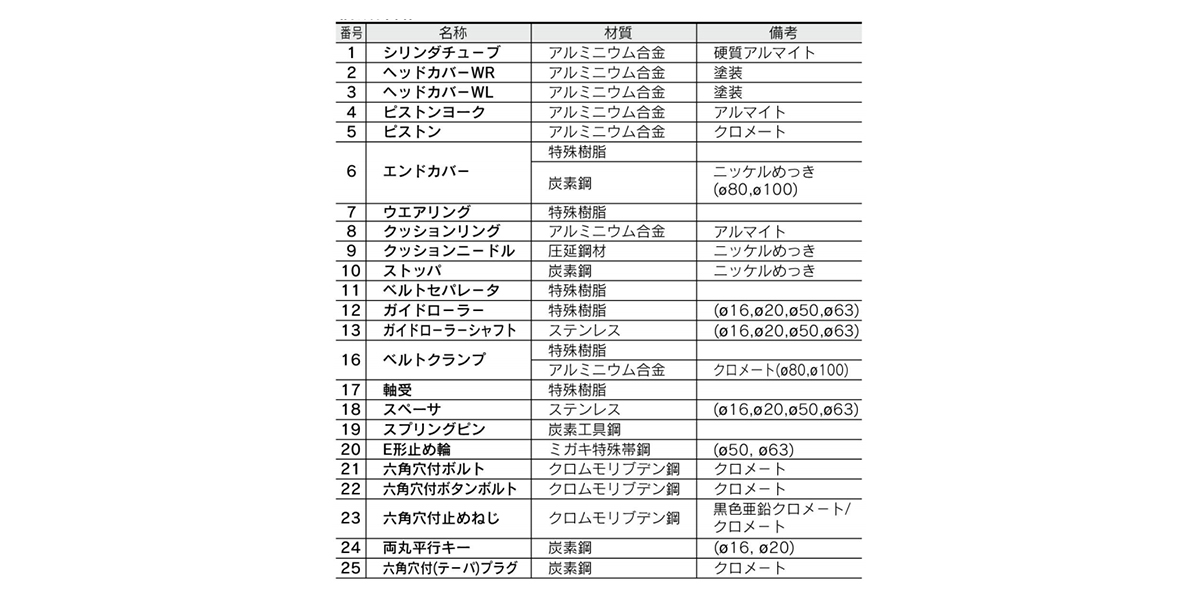

MY1B16, MY1B20, MY1B50 to MY1B100 components
Image 1 for components parts table of MY1B16, MY1B20, MY1B50 to MY1B100 components parts table
Image 2 of MY1B16, MY1B20, MY1B50 to MY1B100 components
Dimensions example of Mechanical Joint Type Rodless Cylinder, Basic Type MY1B Series
Centralized piping type: ø10 (Cylinder inner diameter: 10 mm)
(Units: mm)

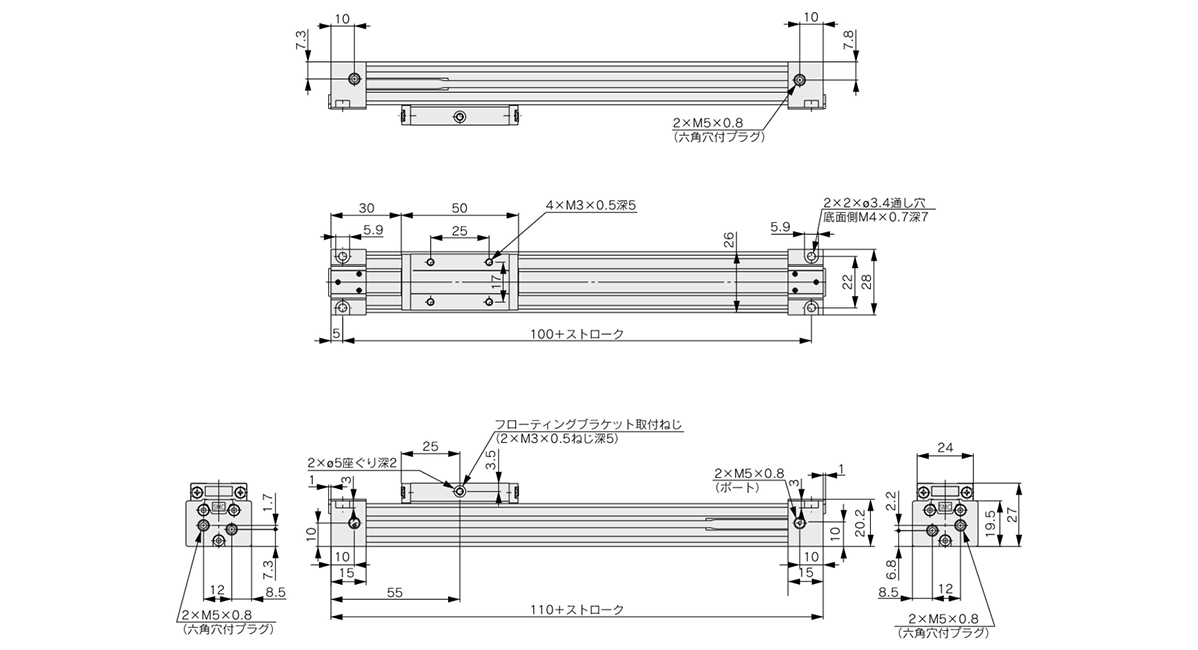

Dimensional drawing of MY1B10G-Stroke

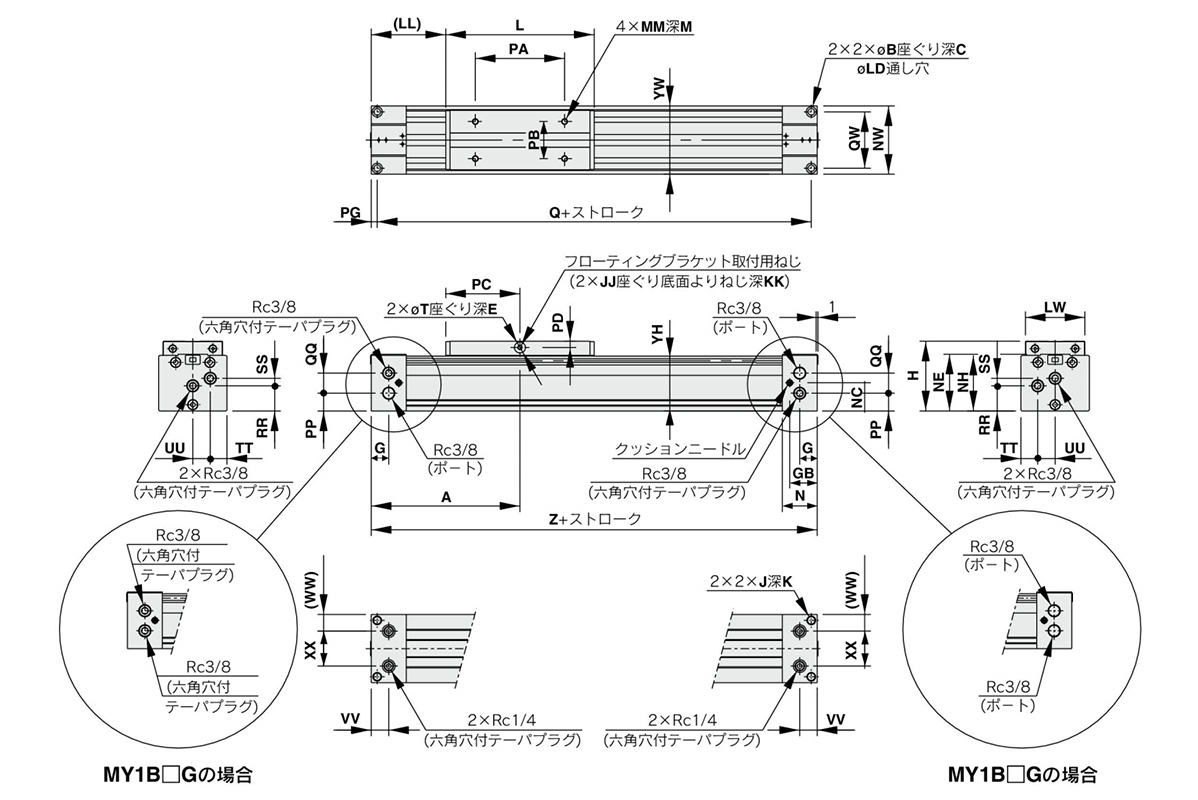

Standard type / centralized piping type ø16 (Cylinder inner diameter: 16 mm), ø20 (Cylinder inner diameter: 20 mm)
(Units: mm)
Dimensional drawing of MY1B16□/MY1B20□-Stroke
(Units: mm)

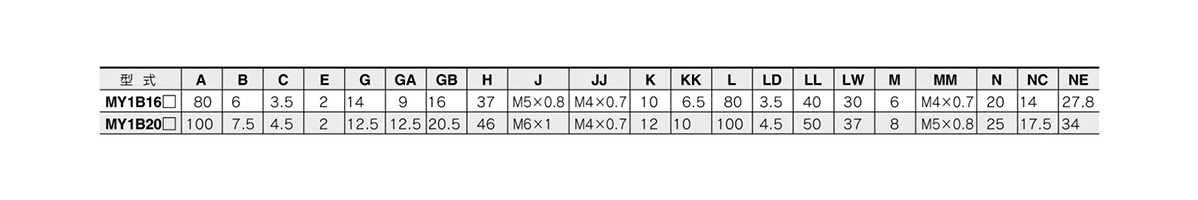

Image 1 of dimensions table for MY1B16□/MY1B1620□
(Units: mm)

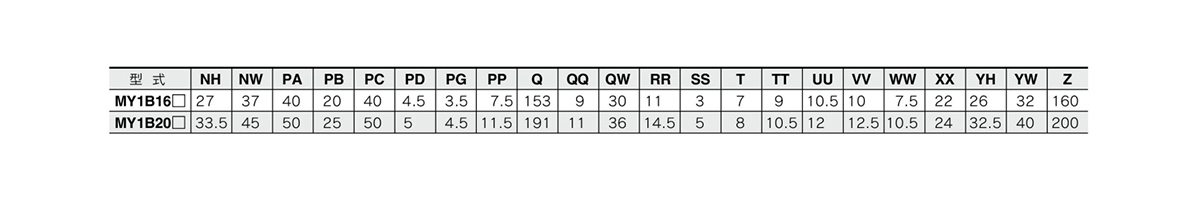

Image 2 of dimensional drawing table for MY1B16□/MY1B20

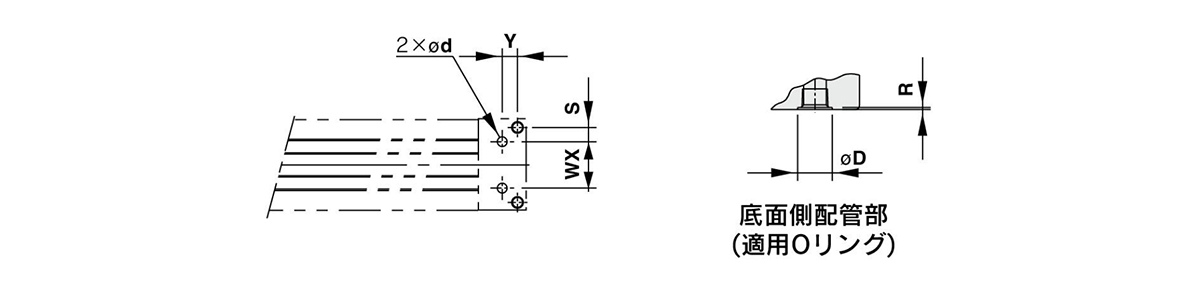

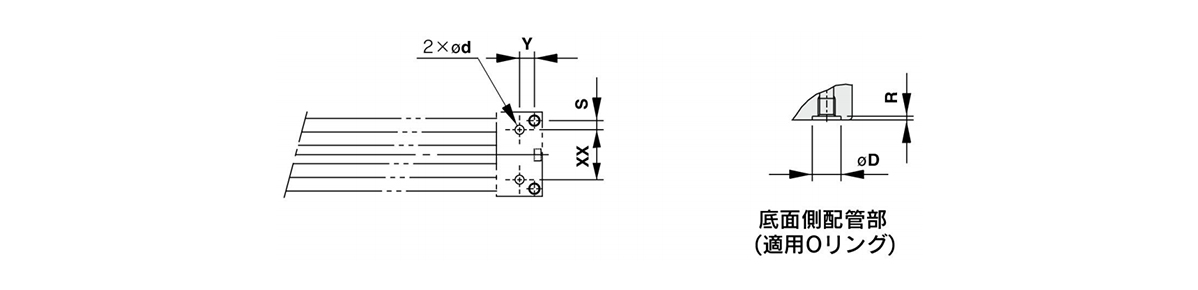

Dimensional drawing of MY1B16□/MY1B20 piping hole for centralized bottom piping (right: Bottom side piping (Applicable O-ring)
(Units: mm)

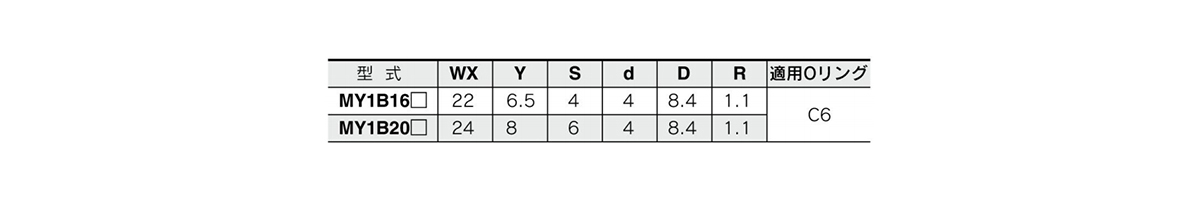

Image of piping hole dimension table for centralized bottom piping MY1B16□/MY1B20
* Please process the mounting surface with these dimensions.
Standard type / centralized piping type ø50 (Cylinder inner diameter: 50 mm), ø63 (Cylinder inner diameter: 63 mm)

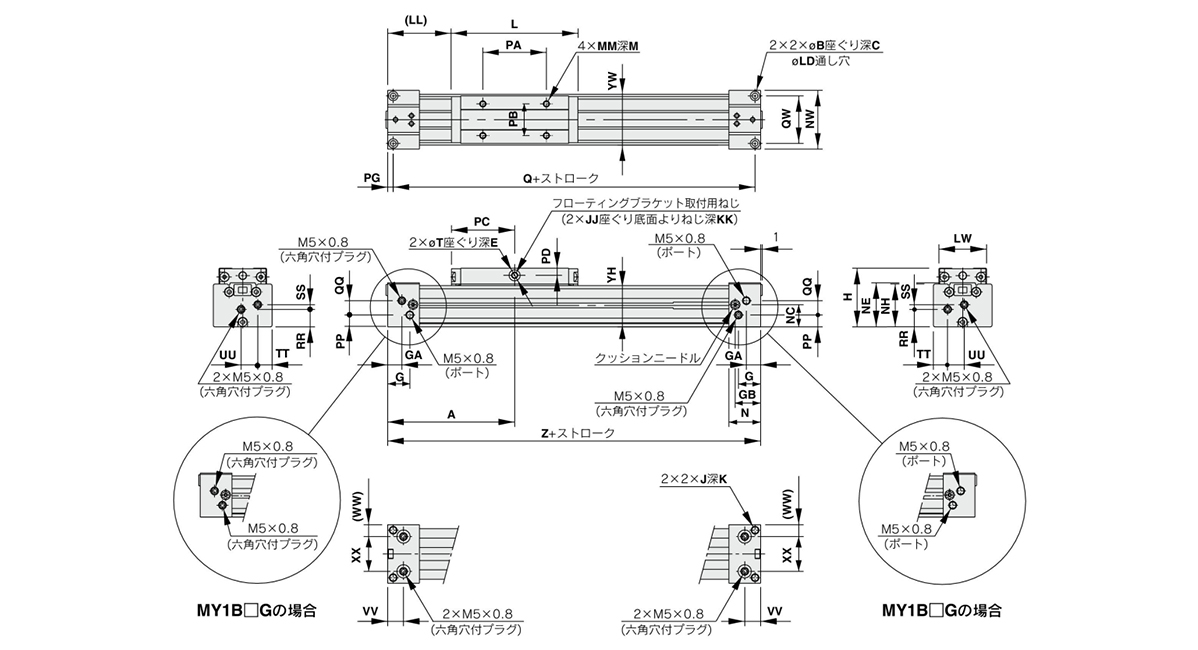

Dimensional drawing of MY1B50□/MY1B63□-Stroke
(Units: mm)

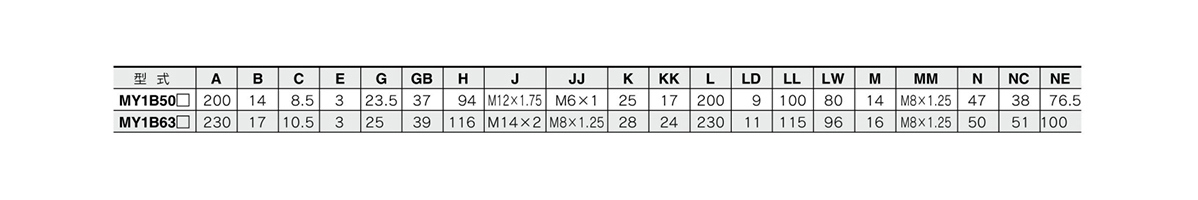

Dimension table image 1 of MY1B50□/MY1B63□
(Units: mm)
Dimension table image 2 of MY1B50□/MY1B63□
Dimensional drawing of piping hole for centralized bottom piping MY1B50□/MY1B63 (right: Bottom side piping (Applicable O-ring)
(Units: mm)

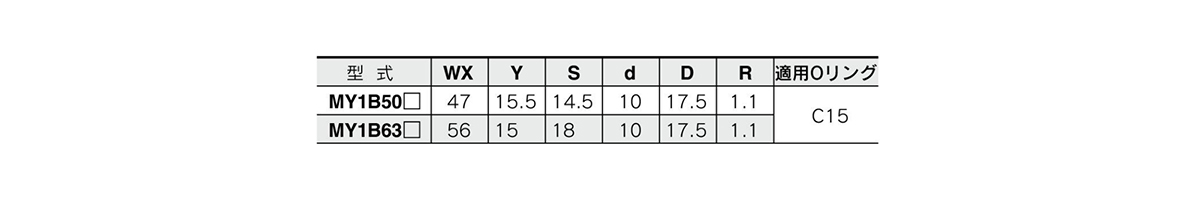

Image of piping hole dimension table for centralized bottom piping of MY1B50□/MY1B63□
* Please process the mounting surface with these dimensions.
Standard type / centralized piping type ø80 (Cylinder inner diameter: 80 mm), ø100 (Cylinder inner diameter: 100 mm)
(Units: mm)

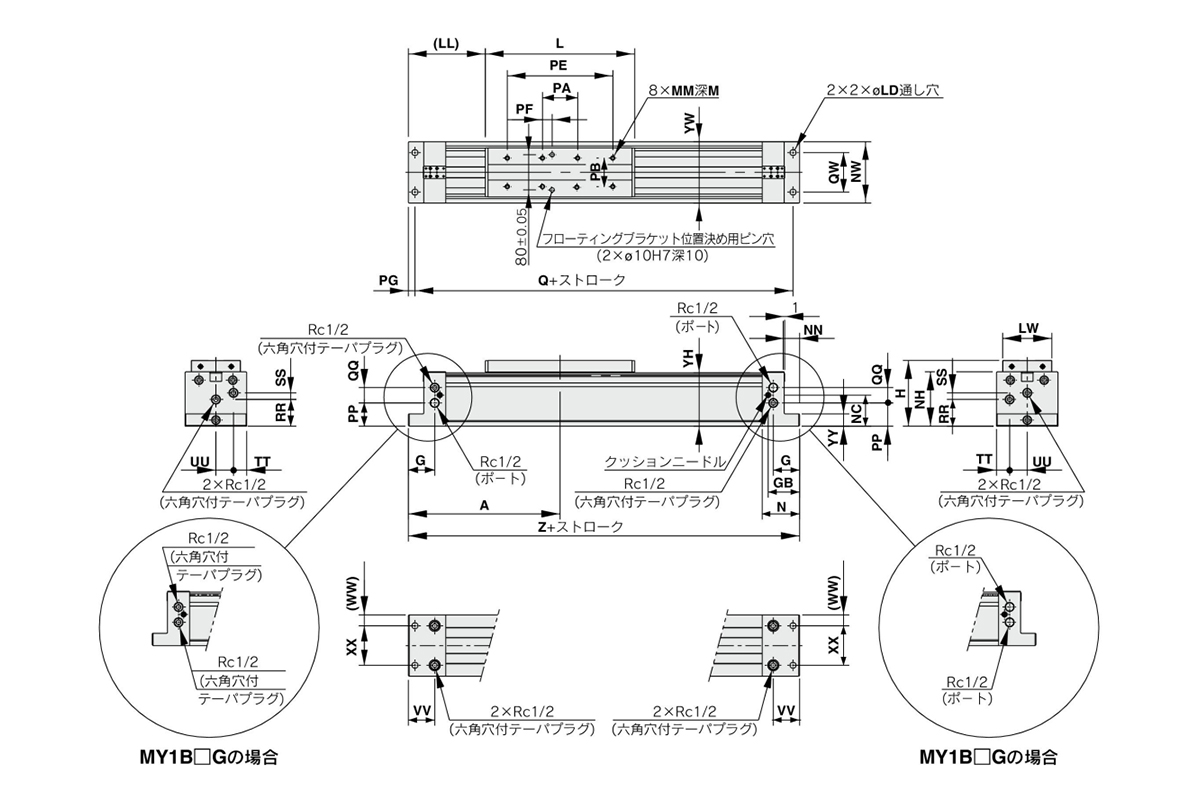

Dimensional drawing of MY1B80□/MY1B100□-Stroke
(Units: mm)

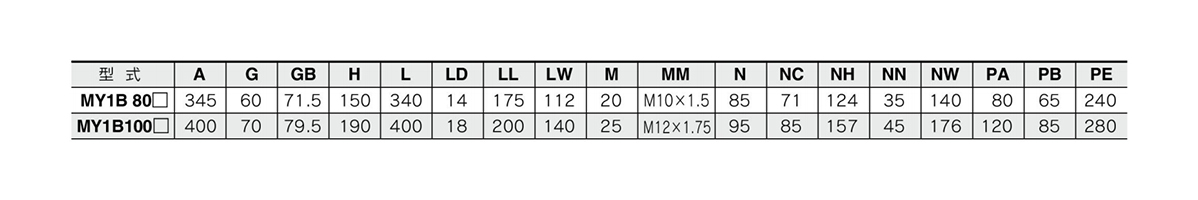

Dimension table image 1 of MY1B80□/MY1B100□
(Units: mm)
Dimension table image 2 of MY1B80□/MY1B100□

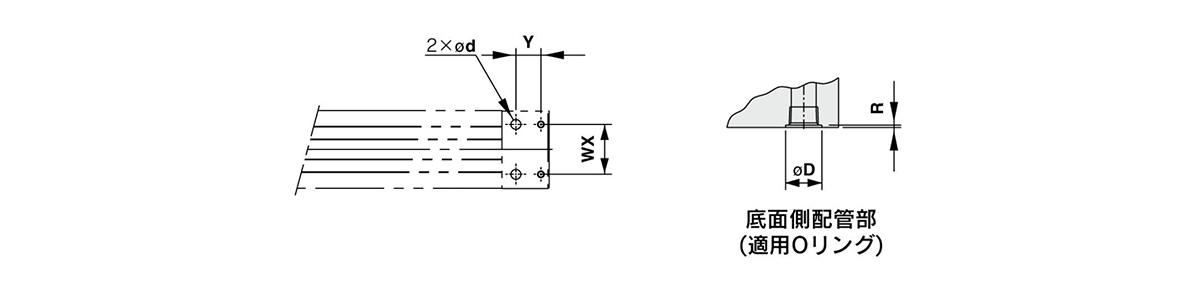

Dimensional drawing of MY1B80□/MY1B100□piping hole for centralized bottom piping (right: Bottom side piping (Applicable O-ring)
(Units: mm)

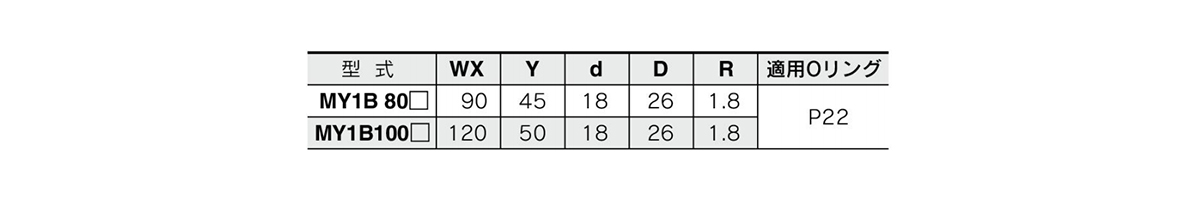

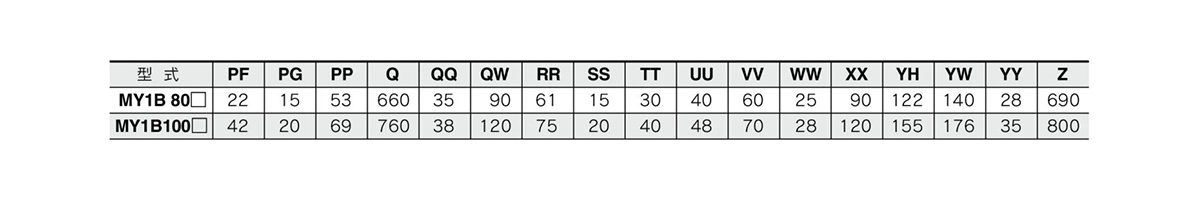

Image of piping hole dimension table for centralized bottom piping MY1B80□/MY1B100□
* Please process the mounting surface with these dimensions.
Please refer to the table below for details about lead wire / connector specifications.
