Dual-Rod Cylinder, Basic Type CXS Series

Brand :

SMC

Caution

See catalog for specification details.
Product pictures are representations. CAD data is not supported for some model numbers.

Product Description

Dual-Rod Cylinder, Basic Type CXS Series with guide function that is suitable for pick and place applications, etc.
[Features]
· Ball bushing bearings and slide bearings are standard for all series.
· Can be mounted from 3 directions.
· Workpieces can be mounted on 3 surfaces.
· Air cushion only minimally adds to full length dimension.

Dual-Rod Cylinder, Basic Type CXS Series Specifications

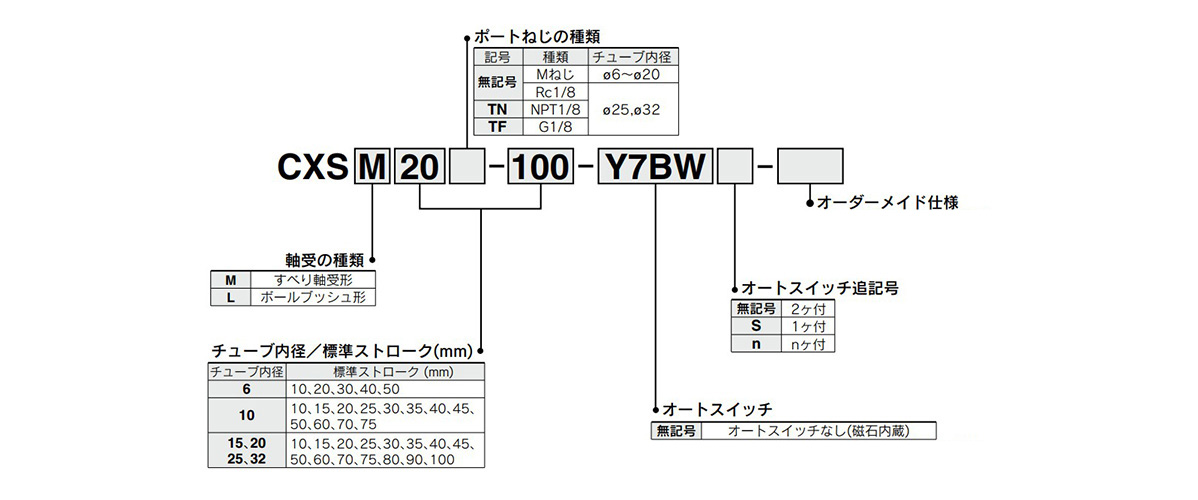

Model Number Notation

Specifications

Tube Internal Diameter (mm)	6	10	15	20	25	32
Applicable fluids	Air (non-lube)
Proof pressure	1.05 MPa
Maximum operating pressure	0.7 MPa
Minimum operating pressure	0.15 MPa	0.1 MPa		0.05 MPa
Ambient temperature and working fluid temperature	-10°C to 60°C (no freezing)
Operating piston speed	30 to 300 mm/s	30 to 800 mm/s	30 to 700 mm/s		30 to 600 mm/s
Cushioning	Rubber cushion
Stroke adjustable range	0 to -5 mm compared to the standard stroke
Port size	M5 × 0.8				Rc 1/8
Bearing type	Slide bearing, ball bushing bearing (same dimensions for both)
Allowable Kinetic Energy	0.0023 J	0.064 J	0.095 J	0.17 J	0.27 J	0.32 J

Standard Strokes

(Unit: mm)

Model	Standard stroke	Long stroke
CXS□6	10, 20, 30, 40, 50	60, 70, 75, 80, 90, 100
CXS□10	10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 75	80, 90, 100, 110, 120, 125, 150
CXS□15	10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 75, 80, 90, 100	110, 120, 125, 150
CXS□20		110, 120, 125, 150, 175, 200
CXS□25
CXS□32

Structural drawing examples

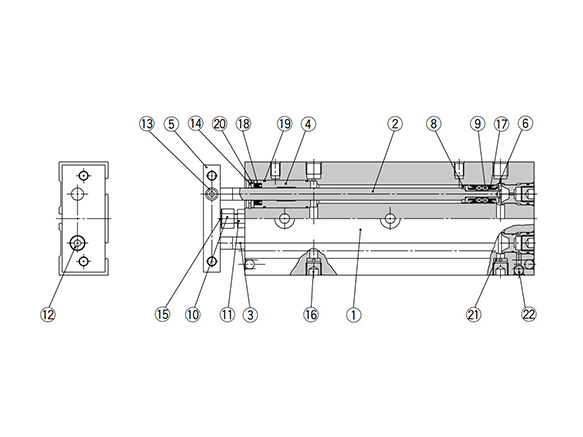

CXSM6 slide bearing

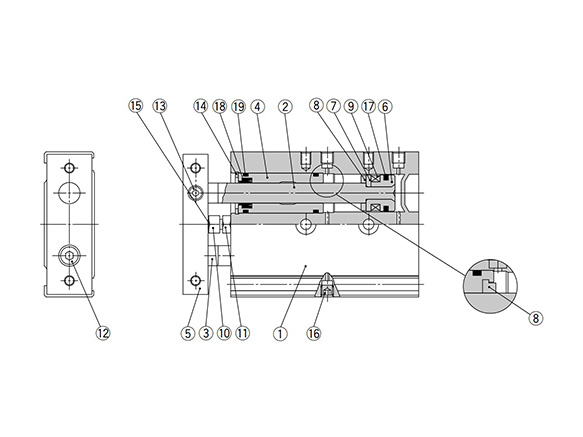

CXSM10 to 30 slide bearing

Component Parts

Number	Description	Material	Note
1	Housing	Aluminum Alloy	Hard Anodize
2	Piston rod A	^Note)Carbon steel	Hard chrome plated
3	Piston rod B	^Note)Carbon steel	Hard chrome plated
4	Rod Cover	Aluminum bearing alloy	-
5	Plate	Aluminum Alloy	Anodized
6	Piston A	Aluminum Alloy	Chromate treatment
7	Piston B	Aluminum Alloy	Chromate treatment
8	Dampers	Urethane	-
9	Magnet	-	-
10	Bumper bolt	Carbon steel	Nickel plating
11	Hex nut	Carbon steel	Zinc chromate
12	Hexagon socket head bolt	Chromium steel	Zinc chromate
13	Hex Socket Set Screw	Chromium steel	Zinc chromate
14	Retaining Ring	Special steel	Phosphate coated
15	Dampers	Urethane	-
16	Plug	Chromium steel	Nickel plating
17	Piston Gasket	NBR	-
18	Rod Gasket	NBR	-
19	O-ring	NBR	-
20	Seal retainer	Aluminum Alloy	-
21	Port spacer	Aluminum Alloy	-
22	Steel ball	Special steel	Hard chrome plated

Note) Stainless steel for CXSM6.

Dual-Rod Cylinder, Basic Type CXS Series Example Dimensions

(Unit: mm)

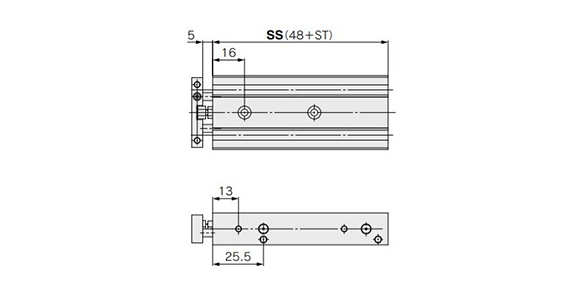

CXS□6 dimensional drawing

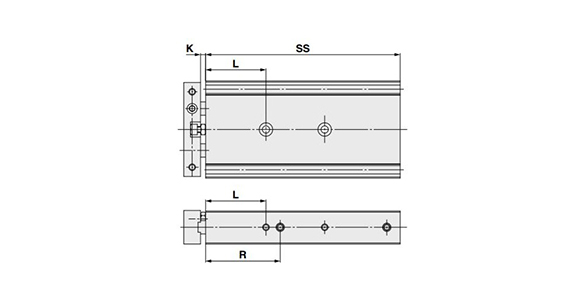

CXS□10 to 32 dimensional drawing

(Unit: mm)

Model	K	L	R
CXS□10	4	25	35
CXS□15	3	36	44.5
CXS□20	6	36	50.5
CXS□25	6	36	52
CXS□32	4	40	66

(Unit: mm)

Model	Symbol
	Stroke
	SS
	10	15	20	25	30	35	40	45	50	60	70	75	80	90	100
CXS□10	70	75	80	85	90	95	100	105	110	120	130	135	-	-	-
CXS□15	76	81	86	91	96	101	106	111	116	126	136	141	146	156	166
CXS□20	86	91	96	101	106	111	116	121	126	136	146	151	156	166	176
CXS□25	88	93	98	103	108	113	118	123	128	138	148	153	158	168	178
CXS□32	102	107	112	117	122	127	132	137	142	152	162	167	172	182	192
