Pressure Gauge For Clean Regulator / With Limit Indicator G46-SRA/B Series
Brand :
SMC
Caution
- See catalog for specification details.
- CAD data is not supported for some model numbers
- Product pictures are representations.
Product Description
Pressure Gauge For Clean Regulator / With Limit Indicator G46-SRA/B Series that uses air or water as the operating fluid.
[Features]
Indication precision ±3% F.S. (full span).
· Processing Oil/Water-free.
Pressure Gauge For Clean Regulator / With Limit Indicator G46-SRA/B Series Details

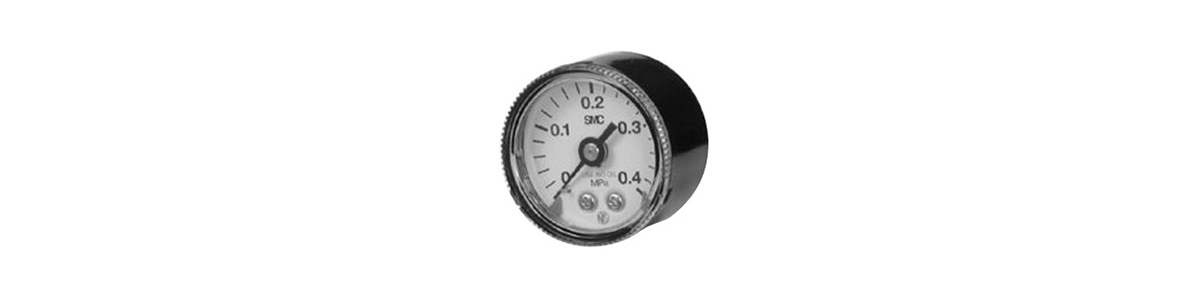

G46-10-02-SRA/G46-10-02-SRB: product images
Pressure Gauge For Clean Regulator / With Limit Indicator G46-SRA/B Series Specifications
| Model | G46-□-SRA | G46-□-SRB | ||
|---|---|---|---|---|
| Shape | Back side thread | |||
| Connection threadNote 1) | R1/8, R1/4 | |||
| FluidNote 4) | Air, water | Air, water | ||
| Indication precisionNote 5) | ±3% F.S. (full span) | |||
| Fluid contact part cleaning (wetted parts) | Precision cleaning | General degreasing | ||
| Assembly/environment | Clean room M5.5 (Class 10,000) | General production line | ||
| Processing | Oil/Water-freeNote 2) | |||
| MaterialNote 3) | Case | Stainless steel (SUS304 [Black melamine painted]) | ||
| Clear cover (Surface treatment) | Polycarbonate (hard coated) part No.: G46-00-00-2 | |||
| Stud | Stainless steel (SUS316) | |||
| Bourdon tube | Stainless steel (SUS316) | |||
| Attachment: cover ring assembly | C | Part number: 1305104-6A | ||
| C1 | Part number: 1305104-7A | |||
| C2 | Part number: 1305104-12A | |||
| Weight (kg) | 0.085 | 0.085 | ||
- *Note 1) When mounting the pressure gauge, take care not to over-tighten. This will cause damage. Use pipe tape for sealing.
- *Note 2) The pressure gauge is manufactured as not to leave any water or oil in the wetted parts.
- *Note 3) Movable parts inside the pressure gauge (gears, etc.) are made of brass.
- *Note 4) Excludes corrosive fluids. Take care not to allow freezing. This may result in a malfunction. Also, if using water as the fluid, make sure that water hammer is not being applied.
- *Note 5) The guaranteed temperature range is 23°C ±5°C.
Model (Standard)
| Model | Pressure rangeNote 1) | Indication unit | Connection thread |
|---|---|---|---|
| MPa | |||
| G46-2-01 to 02-SRA | 0 to 0.2 | MPa | R1/8 R1/4 |
| G46-2-01 to 02-SRB | |||
| G46-4-01 to 02-SRA | 0 to 0.4 | ||
| G46-4-01 to 02-SRB | |||
| G46-7-02-SRA | 0 to 0.7 | R 1/4 | |
| G46-7-02-SRB | |||
| G46-10-02-SRA | 0 to +1.0 | ||
| G46-10-02-SRB |
- *Note 1) Do not apply pressure more than the maximum display pressure. This may result in a malfunction.
Model Number Notation

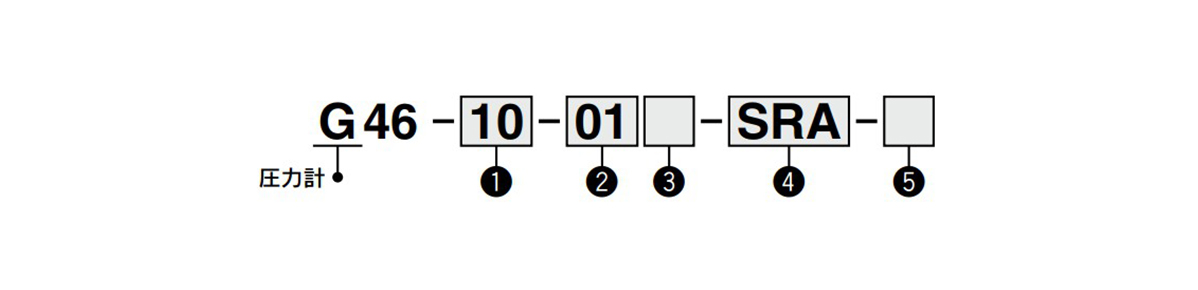

Model number example
| - | Symbol | Content | G46 | |
|---|---|---|---|---|
| (1) | Max. display pressure | 2 | 0.2 MPa | ● |
| 4 | 0.4 MPa | ● | ||
| 7 | 0.7 MPa | ● | ||
| 10 | 1.0 MPa | ● | ||
| (2) | Connection thread | 01 | R 1/8 | ● |
| 02 | R 1/4 | ● | ||
| (3) | Option | No Mark | - | ● |
| MNote 1) | With M5 (female thread) | ● | ||
| (4) | Grade | SRA | Parts: precision cleaning Assembly: clean room M5.5 (class 10,000) | ● |
| SRB | Parts: general degreasing Assembly: general production line | ● | ||
| (5) | AttachmentNote 2) | No Mark | Without cover ring assembly | ● |
| C | Clear cover has no protrusion (clear cover cannot be removed) | ● | ||
| C1 | Clear cover has a protrusion (clear cover can be removed) | ● | ||
| C2 | Clear cover has a protrusion (clear cover can be removed) The wrench flats protrude | ● | ||
- *Note 1) To use the pressure gauge with M5 (female thread), attach the joint when piping the tube.
- *Note 2) For pressure gauges with cover ring assembly, it is recommended to select option M so as to perform the piping.
Pressure Gauge For Clean Regulator / With Limit Indicator G46-SRA/B Series Example Dimensions
(Unit: mm)

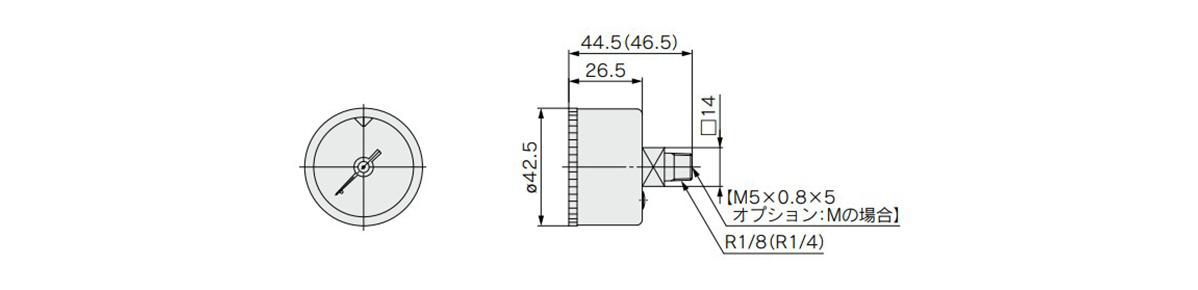

G46-□□-01 to 02 (M)-SRA / G46-□□-01 to 02 (M)SRB dimensional drawing
