S Coupler Socket KK130S Series

S Coupler Socket KK130S Series
You can add up to 6 items per a category to the compare list.

  • Sale
Filter By :
Part Number :
  • From :
    ฿ 228.65/Unit
  • Qty :
  • Days to Ship :
    ---
  • Total Price :
    ---

Select part number to Order Now/ Add to Cart

(i)Caution

  • The minimum order quantity varies depending on the selected model. Please check the quotation / order screen for details.
  • Refer to the catalog for product specs.
  • The product shown in the image may be a representative image. Refer to the catalog for product shapes and types.

Product Description

An energy-saving type S coupler one-touch joint achieved through reduced losses in pressure.
[Features]
· Air consumption amount can be reduced and costs kept down by reducing the compressor's power consumption.
· 12‑g lighter than the conventional product.
· The plug insertion force has been reduced by 20 N in comparison to the conventional product (at 0.5 MPa.)
· The C factor has been increased by 34% in comparison to the conventional product (R1/4 thread type.)

S Coupler KK130 Socket specifications

Common specifications

Operating fluidAir Note:
Operating pressure range0 to 1.5 MPa
One-touch fitting type: 0 to 1.0 MPa
Guaranteed proof pressure2.0 MPa
Ambient temperature and working fluid temperature-20 to 80°C (no freezing)
One-touch fitting type: -5 to 60°C (no freezing)
PlatingSleeve: electroless nickel plating
Other external metal parts: zinc chromate
SealIncludes male thread sealant

Note: Cannot be used for water.

Common performance

Plug/socket connection methodSleeve-slide detachable type
Check valveSocket: built-in check valve
Flow directionBoth directions
Sleeve lock mechanismManual lock system (with detents), semi-standard

Male thread type

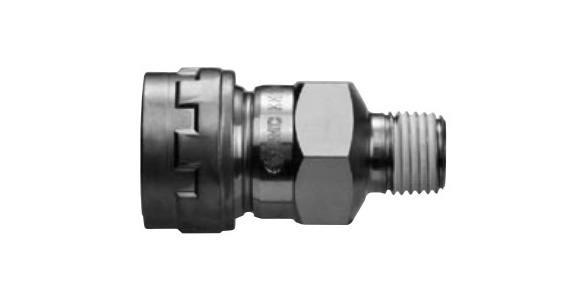

Male Thread Type external appearance

Male Thread Type external appearance

Male Thread Type dimensional drawing (Units: mm)

Male Thread Type dimensional drawing (Units: mm)

ModelT
Connection male thread
H
Width across flats
L1A *1Minimum hole diameterWeight
g
KK130S(L)-01MSR1/82244.040.06.073
KK130S(L)-02MSR1/42246.840.88.574
KK130S(L)-03MSR3/82246.239.78.582
KK130S(L)-04MSR1/22247.839.814.083
KK130S(L)-N01MSNPT1/82244.339.36.073
KK130S(L)-N02MSNPT1/42247.439.98.574
KK130S(L)-N03MSNPT3/82246.639.18.582
KK130S(L)-N04MSNPT1/22248.238.214.083

Unit: mm

  1. *1: Reference dimensions after screwing in

Female thread type

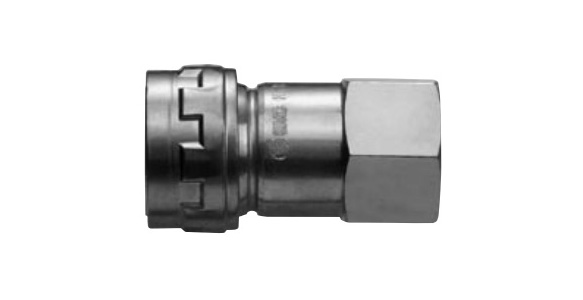

Female Thread Type external appearance

Female Thread Type external appearance

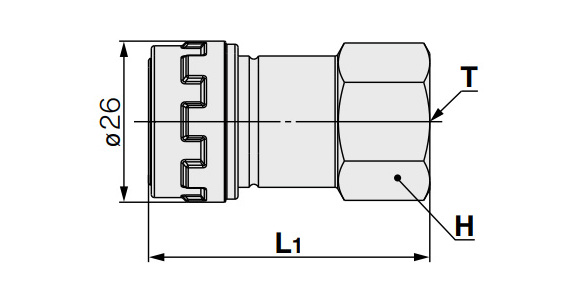

Female Thread Type dimensional drawing (Units: mm)

Female Thread Type dimensional drawing (Units: mm)

ModelT
Connection male thread
H
Width across flats
L1Minimum hole diameterWeight
g
KK130S(L)-01FRc1/82241.98.090
KK130S(L)-02FRc1/42245.411.092
KK130S(L)-03FRc3/82248.411.091
KK130S(L)-04FRc1/22752.914.0117
KK130S(L)-N01FNPT1/82241.98.090
KK130S(L)-N02FNPT1/42245.411.092
KK130S(L)-N03FNPT3/82248.411.091
KK130S(L)-N04FNPT1/22752.914.0117

Unit: mm

Barb fitting type (for rubber hoses)

Barb Fitting Type (For Rubber Hoses) external appearance

Barb Fitting Type (For Rubber Hoses) external appearance

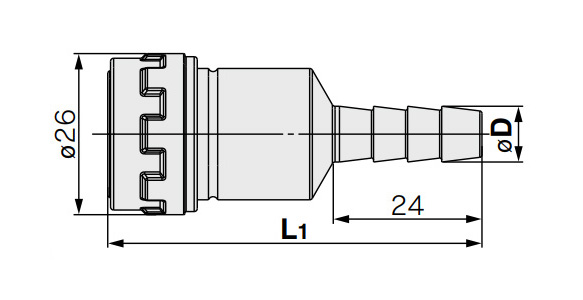

Barb Fitting Type (For Rubber Hoses) dimensional drawing (Units: mm)

Barb Fitting Type (For Rubber Hoses) dimensional drawing (Units: mm)

ModelNominal of hoseøD1L1Minimum hole diameterWeight g
KK130S(L)-07B6 (1/4 ")7.260.94.570
KK130S(L)-09B8 (1/4 ")9.060.45.072
KK130S(L)-11B9 (3/8 ")11.359.97.773
KK130S(L)-13B12 (1/2 ")15.058.99.081

Unit: mm
*The values within () represent the internal diameter of applicable hoses

Nut Fitting Type (For Fiber Reinforced Urethane Hose)

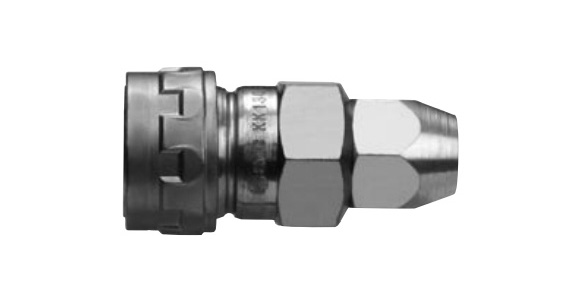

Nut Fitting Type (For Fiber Reinforced Urethane Hose) external appearance

Nut Fitting Type (For Fiber Reinforced Urethane Hose) external appearance

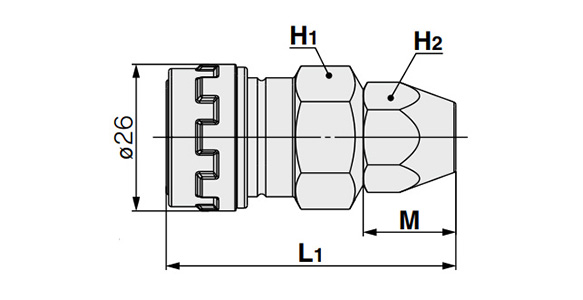

Nut Fitting Type (For Fiber Reinforced Urethane Hose) dimensional drawing (Units: mm)

Nut Fitting Type (For Fiber Reinforced Urethane Hose) dimensional drawing (Units: mm)

ModelApplicable hose
Internal diameter / outer diameter
H1H2L1MMinimum hole diameterWeight g
KK130S(L)-50N5/8221449.613.74.585
KK130S(L)-60N6/9221751.616.45.595
KK130S(L)-65N6.5/10221751.616.56.092
KK130S(L)-80N8/12221952.617.48.097
KK130S(L)-85N8.5/12.5221952.617.48.0101
KK130S(L)-110N11/16242452.620.110.0119

Unit: mm

One-touch fitting type

One-Touch Fitting Type external appearance

One-Touch Fitting Type external appearance

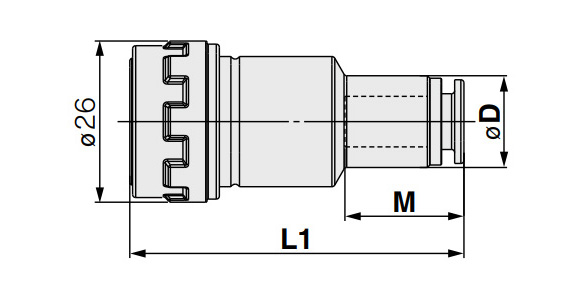

One-Touch Fitting Type dimensional drawing (Units: mm)

One-Touch Fitting Type dimensional drawing (Units: mm)

ModelApplicable tube outer diameter mmDL1MMinimum hole diameterWeight g
KK130S(L)-06H613.052.316.74.572
KK130S(L)-08H814.853.318.66.074
KK130S(L)-10H1017.855.320.79.077
KK130S(L)-12H1220.055.321.79.080
KK130S(L)-07H1/4 "13.052.316.74.572
KK130S(L)-09H5/16 "14.853.318.66.074
KK130S(L)-11H3/8 "17.655.320.77.079
KK130S(L)-13H1/2 "20.055.321.79.078

Unit: mm

*Refer to the manufacturer's catalog for specifications other than those above.

Part Number
KK130S-01F
KK130S-01MS
KK130S-02F
KK130S-02MS
KK130S-03F
KK130S-03MS
KK130S-04F
KK130S-04MSSALE
KK130S-06H
KK130S-07B
KK130S-07H
KK130S-08H
KK130S-09B
KK130S-09H
KK130S-10H
KK130S-11B
KK130S-11H
KK130S-12H
KK130S-13BSALE
KK130S-13H
KK130S-50N
KK130S-60N
KK130S-65N
KK130S-80N
KK130S-85N
KK130S-110N
KK130S-N01F
KK130S-N01MS
KK130S-N02F
KK130S-N02MS
KK130S-N03F
KK130S-N03MS
KK130S-N04F
KK130S-N04MS
Part NumberPriceNameMinimum Order Qty.Volume DiscountDays to ShipJoint Type Operating Temperature Range
(°C)
Pipe Connection Bore Dia. Nominal Designation of Hose
(mm / (Inch))
Applicable Hose Inner Diameter / Outer Diameter
(mm)
Applicable Tube O.D.
(mm)
Applicable Tube O.D.
(Inch)

฿ 228.65

COUPLER/ONE-TOUCH JOINT 1 Piece(s) 3 Day(s) Female Threaded Tapped-20~80Rc 1/8----

฿ 228.65

COUPLER/ONE-TOUCH JOINT 1 Piece(s) Same day Threaded Type-20~80R 1/8----

฿ 228.65

COUPLER/ONE-TOUCH JOINT 5 Piece(s) 3 Day(s) Female Threaded Tapped-20~80Rc 1/4----

฿ 228.65

COUPLER/ONE-TOUCH JOINT 1 Piece(s) Same day Threaded Type-20~80R 1/4----

฿ 228.65

COUPLER/ONE-TOUCH JOINT 5 Piece(s) 3 Day(s) Female Threaded Tapped-20~80Rc 3/8----

฿ 228.65

COUPLER/ONE-TOUCH JOINT 1 Piece(s) Same day Threaded Type-20~80R 3/8----

฿ 300.90

COUPLER/ONE-TOUCH JOINT 5 Piece(s) 3 Day(s) Female Threaded Tapped-20~80Rc 1/2----

฿ 300.90

฿ 265.51

COUPLER/ONE-TOUCH JOINT 1 Piece(s) Same day Threaded Type-20~80R 1/2----

฿ 328.95

COUPLER/ONE-TOUCH JOINT 5 Piece(s) 3 Day(s) With One-Touch Couplings----6-

฿ 228.65

COUPLER/ONE-TOUCH JOINT 1 Piece(s) 3 Day(s) [For hose mounting] 00042-20~80-6 (1/4")---

฿ 374.85

COUPLER/ONE-TOUCH JOINT 1 Piece(s) 3 Day(s) With One-Touch Couplings-----1/4

฿ 328.95

COUPLER/ONE-TOUCH JOINT 1 Piece(s) Same day With One-Touch Couplings----8-

฿ 228.65

COUPLER/ONE-TOUCH JOINT 5 Piece(s) 3 Day(s) [For hose mounting] 00042-20~80-8 (1/4")---

฿ 374.85

COUPLER/ONE-TOUCH JOINT 5 Piece(s) 55 Day(s) With One-Touch Couplings-----5/16

฿ 343.40

COUPLER/ONE-TOUCH JOINT 1 Piece(s) Same day With One-Touch Couplings----10-

฿ 228.65

COUPLER/ONE-TOUCH JOINT 5 Piece(s) 3 Day(s) [For hose mounting] 00042-20~80-9 (3/8")---

฿ 343.40

COUPLER/ONE-TOUCH JOINT 5 Piece(s) 55 Day(s) With One-Touch Couplings-----3/8

฿ 372.30

COUPLER/ONE-TOUCH JOINT 1 Piece(s) Same day With One-Touch Couplings----12-

฿ 300.90

฿ 265.51

COUPLER/ONE-TOUCH JOINT 1 Piece(s) Same day [For hose mounting] 00042-20~80-12 (1/2")---

฿ 372.30

COUPLER/ONE-TOUCH JOINT 5 Piece(s) 3 Day(s) With One-Touch Couplings-----1/2

฿ 243.10

COUPLER/ONE-TOUCH JOINT 1 Piece(s) Same day Nut Tightening Type-20~80--5/8--

฿ 243.10

COUPLER/ONE-TOUCH JOINT 5 Piece(s) 3 Day(s) Nut Tightening Type-20~80--6/9--

฿ 300.90

COUPLER/ONE-TOUCH JOINT 1 Piece(s) Same day Nut Tightening Type-20~80--6.5/10--

฿ 300.90

COUPLER/ONE-TOUCH JOINT 1 Piece(s) Same day Nut Tightening Type-20~80--8/12--

฿ 351.05

COUPLER/ONE-TOUCH JOINT 5 Piece(s) 3 Day(s) Nut Tightening Type-20~80--8.5/12.5--

฿ 351.05

COUPLER/ONE-TOUCH JOINT 5 Piece(s) 55 Day(s) Nut Tightening Type-20~80--11/16--

฿ 228.65

COUPLER/ONE-TOUCH JOINT 5 Piece(s) 55 Day(s) Female Threaded Tapped-20~80NPT 1/8----

฿ 228.65

COUPLER/ONE-TOUCH JOINT 5 Piece(s) 55 Day(s) Threaded Type-20~80NPT 1/8----

฿ 228.65

COUPLER/ONE-TOUCH JOINT 5 Piece(s) 55 Day(s) Female Threaded Tapped-20~80NPT 1/4----

฿ 228.65

COUPLER/ONE-TOUCH JOINT 5 Piece(s) 55 Day(s) Threaded Type-20~80NPT 1/4----

฿ 228.65

COUPLER/ONE-TOUCH JOINT 1 Piece(s) 3 Day(s) Female Threaded Tapped-20~80NPT 3/8----

฿ 228.65

COUPLER/ONE-TOUCH JOINT 1 Piece(s) 3 Day(s) Threaded Type-20~80NPT 3/8----

฿ 300.90

COUPLER/ONE-TOUCH JOINT 5 Piece(s) 55 Day(s) Female Threaded Tapped-20~80NPT 1/2----

฿ 300.90

COUPLER/ONE-TOUCH JOINT 1 Piece(s) 3 Day(s) Threaded Type-20~80NPT 1/2----

Loading...

  1. 1

Basic Information

Type Standard Male/Female Socket Body Material Steel for construction
Applicable Fluid Air Valve Structure Single Passage Opening Closing Type Operating Environment, Applications Standard
With or Without Check Valve Yes
