S Coupler Plug KK130P Series
Caution
- The minimum order quantity varies depending on the selected model. Please check the quotation / order screen for details.
- Refer to the catalog for product specs.
- The product shown in the image may be a representative image. Refer to the catalog for product shapes and types.
Product Description
An energy-saving type S coupler one-touch joint achieved through reduced losses in pressure.
[Features]
· Plug: Heat treated for reduced denting, deformation and wear.
· C factor: increased by 34% (R1/4 thread type, comparison with conventional product*.)
· Plug insertion force: reduced by 22% (20 N) (at 0.5 MPa, comparison with the conventional product*.)
· Lightweight: reduced by 14% (12 g) (comparison with the conventional product*.)
· * Conventional product: KK13 Series.
· One-touch fitting type has been standardized.
· Includes a locking mechanism (semi-standard) for preventing detachment due to unexpected impact, etc.
· The detents on the sleeve help maintain the lock position and release position.
S Coupler KK130 Series Plug specifications
Specifications
| Operating fluid | Air Note: |
|---|---|
| Operating pressure range | 0 to 1.5 MPa One-touch fitting type: 0 to 1.0 MPa |
| Guaranteed proof pressure | 2.0 MPa |
| Ambient temperature and working fluid temperature | -20 to 80°C (no freezing) One-touch fitting type: -5 to 60°C (no freezing) |
| Plating | Sleeve: electroless nickel plating Other external metal parts: zinc chromate |
| Seal | Includes male thread sealant |
Note: Cannot be used for water.
Performance
| Plug/socket connection method | Sleeve-slide detachable type |
|---|---|
| Check valve | Socket: built-in check valve |
| Flow direction | Both directions |
| Sleeve lock mechanism | Manual lock system (with detents), semi-standard |

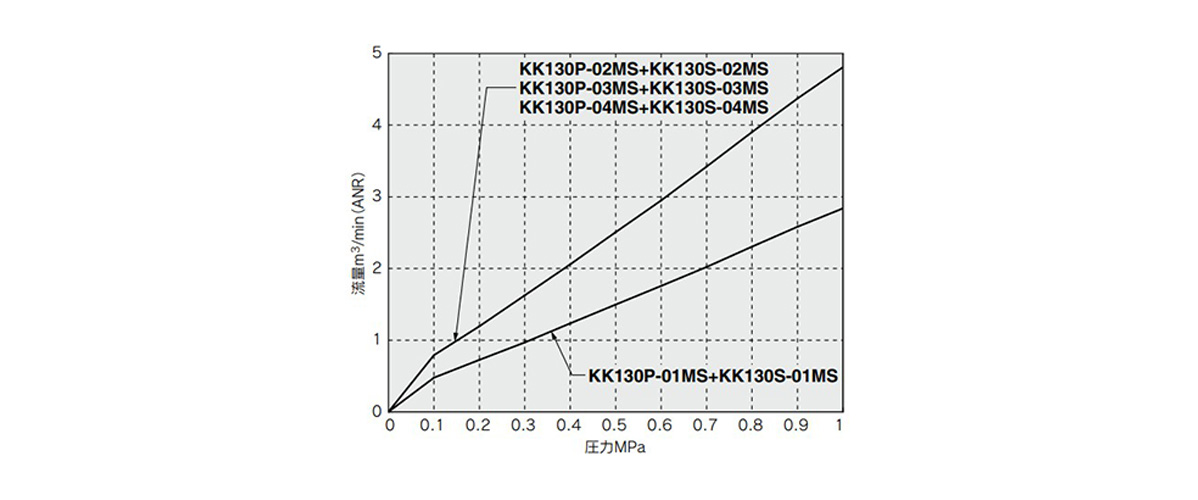

Flow rate characteristics (representative value)
Flow rate characteristics
- *Note: This flow rate characteristics testing method conforms to JIS B 8390 standards (Pneumatic fluid power – Components using compressible fluids – Determination of flow-rate characteristics.)
- *Note: The figures are representative values when the same type of plug and socket are connected.
| Connection type | Sonic conductance C [dm3/(s-bar)] | Critical pressure ratio b | Flow coefficient Cv | Effective area S [mm2] | ||
|---|---|---|---|---|---|---|
| Type | Symbol | Connection | ||||
| Male thread | -01MS | R1/8 | 4.2 | 0.4 | 1.2 | 21 |
| -02MS | R1/4 | 7.0 | 0.4 | 1.9 | 35 | |
| -03MS | R3/8 | 7.0 | 0.5 | 2.1 | 35 | |
| -04MS | R1/2 | 7.0 | 0.5 | 2.1 | 35 | |
| Female thread | -01F | Rc1/8 | 6.0 | 0.5 | 1.8 | 30 |
| -02F | Rc1/4 | 7.0 | 0.5 | 2.1 | 35 | |
| -03F | Rc3/8 | 7.0 | 0.5 | 2.1 | 35 | |
| -04F | Rc1/2 | 7.0 | 0.5 | 2.1 | 35 | |
| With barb fitting | -07B | 6 (1/4 ") | 2.0 | 0.4 | 0.5 | 10 |
| -09B | 8 (1/4 ") | 3.0 | 0.4 | 0.8 | 15 | |
| -11B | 10 (3/8 ") | 6.0 | 0.5 | 1.8 | 30 | |
| -13B | 12 (1/2 ") | 7.0 | 0.5 | 2.1 | 35 | |
| With nut fitting | -50N | 5/8 | 2.0 | 0.4 | 0.5 | 10 |
| -60N | 6/9 | 3.5 | 0.4 | 1.0 | 18 | |
| -65N | 6.5/10 | 4.2 | 0.4 | 1.2 | 21 | |
| -80N | 8/12 | 7.0 | 0.4 | 1.9 | 35 | |
| -85N | 8.5/12.5 | 7.0 | 0.4 | 1.9 | 35 | |
| -110N | 11/16 | 7.0 | 0.5 | 2.1 | 35 | |
| With one-touch fitting | -06H | ø6 | 2.0 | 0.4 | 0.5 | 10 |
| -08H | ø8 | 4.4 | 0.5 | 1.3 | 22 | |
| -10H | ø10 | 7.0 | 0.5 | 1.8 | 35 | |
| -12H | ø12 | 7.0 | 0.5 | 2.1 | 35 | |
Male Thread Type outline dimensional drawing
Plug - Male Thread Type external appearance
Plug - Male Thread Type dimensional drawing
Plug - Male Thread Type dimensional drawing (with socket connection)
| Model | T Connection male thread | H Width across flats | L1 | L2 | A *1 | Minimum hole diameter | Weight g | When connected |
|---|---|---|---|---|---|---|---|---|
| Overall length L3 | ||||||||
| KK130P-01MS | R1/8 | 14 | 34.0 | 11.1 | 30.0 | 6.0 | 18 | 51.1 |
| KK130P-02MS | R1/4 | 14 | 38.0 | 13.1 | 32.0 | 8.0 | 22 | 53.9 |
| KK130P-03MS | R3/8 | 19 | 39.0 | 13.6 | 32.5 | 8.0 | 37 | 53.3 |
| KK130P-04MS | R1/2 | 22 | 43.0 | 16.1 | 35.0 | 8.0 | 52 | 55.9 |
| KK130P-N01MS | NPT1/8 | 14 | 34.0 | 10.1 | 29.0 | 6.0 | 18 | 49.4 |
| KK130P-N02MS | NPT1/4 | 14 | 38.0 | 11.6 | 30.5 | 8.0 | 22 | 51.5 |
| KK130P-N03MS | NPT3/8 | 19 | 39.0 | 12.6 | 31.5 | 8.0 | 37 | 51.7 |
| KK130P-N04MS | NPT1/2 | 22 | 43.0 | 14.1 | 33.0 | 8.0 | 52 | 52.3 |
Units: mm
*1: Reference dimensions after screwing in.
Female Thread Type outline dimensional drawing
Plug - Female Thread Type external appearance
Plug - Female Thread Type dimensional drawing
Plug - Female Thread Type dimensional drawing (with socket connection)
| Model | T Connection male thread | H Width across flats | L1 | L2 | Minimum hole diameter | Weight g | When connected |
|---|---|---|---|---|---|---|---|
| Overall length L3 | |||||||
| KK130P-01F | Rc1/8 | 14 | 30.0 | 11.1 | 8.0 | 18 | 53.0 |
| KK130P-02F | Rc1/4 | 17 | 36.0 | 17.1 | 8.0 | 28 | 62.5 |
| KK130P-03F | Rc3/8 | 21 | 37.0 | 18.1 | 8.0 | 38 | 66.5 |
| KK130P-04F | Rc1/2 | 27 | 42.0 | 23.1 | 8.0 | 73 | 76.0 |
| KK130P-N01F | NPT1/8 | 14 | 30.0 | 11.1 | 8.0 | 18 | 53.0 |
| KK130P-N02F | NPT1/4 | 17 | 36.0 | 17.1 | 8.0 | 28 | 62.5 |
| KK130P-N03F | NPT3/8 | 21 | 37.0 | 18.1 | 8.0 | 38 | 66.5 |
| KK130P-N04F | NPT1/2 | 27 | 42.0 | 23.1 | 8.0 | 73 | 76.0 |
Unit: mm
Barb Fitting Type (For Rubber Hoses) outline dimensional drawing
Plug - Barb Fitting Type (For Rubber Hoses) external appearance
Barb Fitting Type (For Rubber Hoses) dimensional drawing
Barb Fitting Type (For Rubber Hoses) dimensional drawing (with socket connection)
| Model | Nominal of hose | φD1 | φD2 | L1 | L2 | Minimum hole diameter | Weight g | When connected |
|---|---|---|---|---|---|---|---|---|
| Overall length L3 | ||||||||
| KK130P-07B | 6 (1/4 ") | 7.2 | 14.0 | 46.0 | 27.1 | 4.5 | 16 | 88.0 |
| KK130P-09B | 8 (1/4 ") | 9.0 | 15.0 | 46.0 | 27.1 | 5.0 | 19 | 87.5 |
| KK130P-11B | 9 (3/8 ") | 11.3 | 16.0 | 46.0 | 27.1 | 8.0 | 19 | 87.0 |
| KK130P-13B | 12 (1/2 ") | 15.0 | 18.0 | 46.0 | 27.1 | 8.0 | 33 | 86.0 |
Unit: mm
- *The values within () represent the internal diameter of applicable hoses.
- *Note: Refer to the manufacturer's catalog for specifications other than those above.
