Union Elbow KRL-W2 FR One-Touch Fitting
Brand :
SMC
Caution
- *See the catalog for detailed specs and materials.
- Product images may be representative images. Refer to the catalog for details.
Product Description
A one-touch coupling from SMC Corporation.
[Features]
· Can be used with FR soft nylon.
· High holding force.
· Can be used for everything from low vacuums to 1 MPa.
· Little force required for removal.
· Effective for piping in tight spaces.
[Applications]
· Use to connect tubes in the same orientation.
Union Elbow KRL-W2 Specifications

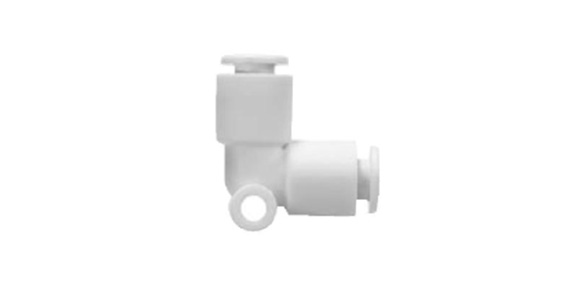

Union Elbow KRL-W2 external appearance

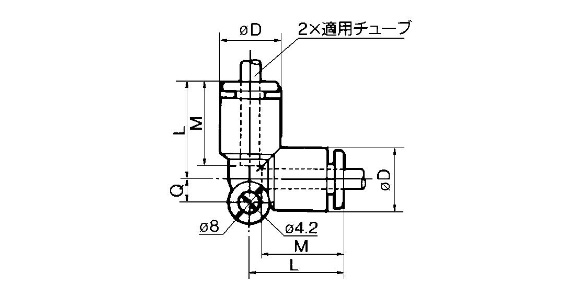

Union Elbow KRL-W2 dimensional outline drawing
| Applicable tube outer diameter (mm) | Model | øD Note 1: | L | Q | M | Effective cross-sectional area (mm2) | Weight g | |
|---|---|---|---|---|---|---|---|---|
| FR 2 layer | FR soft nylon | |||||||
| 6 | KRL06-00W2 | 12.8 | 20 | 5.3 | 17 | 9.0 | 4.2 | 6 |
| 8 | KRL08-00W2 | 15.2 | 23 | 6 | 18.5 | 21.6 | 14.9 | 10 |
| 10 | KRL10-00W2 | 18.5 | 26.5 | 6.8 | 21 | 35.2 | 25.0 | 17 |
| 12 | KRL12-00W2 | 20.9 | 28.5 | 7.5 | 22 | 50.2 | 39.7 | 21 |
Note 1: øD indicates the maximum diameter.
