Different Diameter Module KBR Piping Module KB Series
Brand :
SMC
Caution
- The minimum order quantity varies depending on the selected model. Please check the quotation / order screen for details.
- *See the catalog for detailed specs and materials.
- Product images may be representative images. Refer to the catalog for details.
Product Description
A one-touch fitting from SMC.
[Features]
· Allows for centralized and distributed air supply from main pipe lines.
· Allows for centralized or distributed piping for use in different applications.
· Tool-free single-action connection
· Free 360° distribution of air

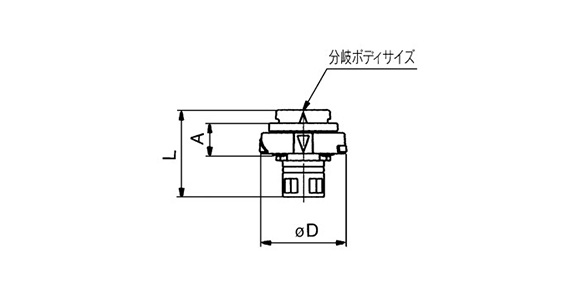

Different Diameter Module KBR Outline Drawing And Dimensions
Different Diameter Module KBR dimensional drawing
| Model | D | L | A | Weight g |
|---|---|---|---|---|
| KBR2-1 | 21.0 | 21.5 | 8.0 | 2.8 |
| KBR3-2 | 28.6 | 25.0 | 10.0 | 4.3 |
| KBR4-3 | 30.4 | 30.5 | 14.0 | 8.8 |
Product Overview
| Tube materials | Nylon, soft nylon, polyurethane, FEP, PFA |
|---|---|
| Tube outer diameter | ø4, ø6, ø8, ø10, ø12, ø16 |
Applicable tube.
| Usable fluids | Air | |
|---|---|---|
| Operating pressure range Note: | -100 kPa to 1 MPa | |
| Guaranteed pressure resistance | 3 MPa | |
| Ambient temperature and working fluid temperature | -5 to 60℃ (no freezing) | |
| Thread | Mounting section | JIS B0203 (tapered thread for pipes/tubes) |
| JIS B 0205 (metric coarse thread) | ||
| Nut section | JIS B0205 (metric fine thread) | |
| Screw section seal (standard) | Includes sealing agent | |
| Copper-free specification (standard) | All brass parts have electroless nickel plating | |
Specifications.
| Male thread | R 1/8, R 1/4, R 3/8, R 1/2 |
|---|---|
| Female thread | M5 × 0.8, M6 × 1, Rc 1/8, Rc 1/4, Rc 3/8, Rc 1/2 |
Applicable thread size.

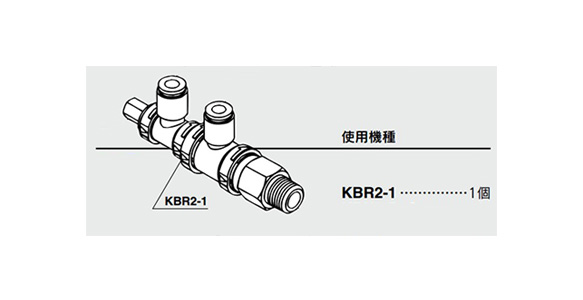

Application example.
Product Usage Precautions
Do not use with a leak tester or for other forms of vacuum retention as they are not guaranteed for zero leakage.
