Plug KQ2P One-Touch Fitting KQ2 Series
Brand :
SMC
Caution
- The minimum order quantity varies depending on the selected model. Please check the quotation / order screen for details.
- See the catalog for details on materials and specifications.
- Product images may be representative images. Refer to the catalog for details.
Product Description
Compact and lightweight one-touch fitting.
[Features]
· Improved tube insertion/removal.
· Compact and light weight.
[Applications]
· Use to plug unused one-touch fittings.
One-touch Fitting Plug
Plug KQ2P external appearance

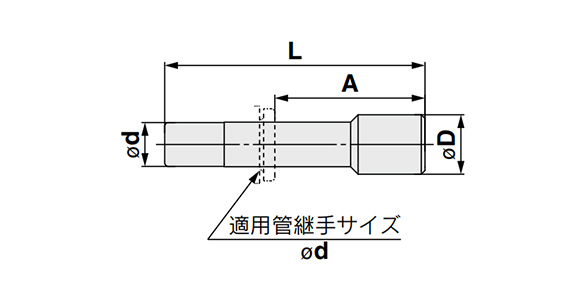

Plug KQ2P dimensional outline drawing
(Units: mm)
| Applicable tube fitting size ød | Model | øD | L | A | Weight g |
|---|---|---|---|---|---|
| ø2 | KJP-02 | 3 | 17 | 5.1 | 0.1 |
| ø3.2 | KQ2P-23 | 5 | 31.5 | 18.2 | 1 |
| ø4 | KQ2P-04 | 6 | 32 | 18.7 | 1 |
| ø6 | KQ2P-06 | 8 | 35 | 21.7 | 1 |
| ø8 | KQ2P-08 | 10 | 39 | 24.8 | 2 |
| ø10 | KQ2P-10 | 12 | 43 | 27.4 | 3.5 |
| ø12 | KQ2P-12 | 14 | 45.5 | 28.5 | 5 |
| ø16 | KQ2P-16 | 20.9 | 47 | 26.4 | 8 |
(Units: mm)
| Applicable tube fitting size ød (inches) | Model | øD | L | A | Weight g |
|---|---|---|---|---|---|
| ø1/8 | KQ2P-01 | 5 | 31.5 | 18.2 | 1 |
| ø5/32 | KQ2P-03 | 6 | 32 | 18.7 | 1 |
| ø3/16 | KQ2P-05 | 6.8 | 34 | 20.7 | 1 |
| ø1/4 | KQ2P-07 | 8.5 | 35 | 21.7 | 1 |
| ø5/16 | KQ2P-09 | 10 | 39 | 24.8 | 2 |
| ø3/8 | KQ2P-11 | 11.5 | 43 | 27.4 | 3.5 |
