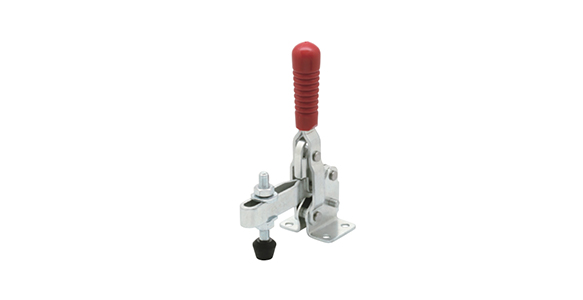

Vertical Type Toggle Clamp ST-VTC210
Brand :
IMAO CORPORATION
Caution
Product Description
Tool-free clamp does not require tools.
[Features]
· Economy type·
[Applications]
· Used as a clamp for assembly, inspection, and welding jigs.
Tool-Free Clamp (ST-VTC210) Features
Outline drawing (ST-VTC210)
| Part Number | Clamping Pressure (kN) | Weight (g) |
|---|---|---|
| ST-VTC210U | 2.75 | 590 |

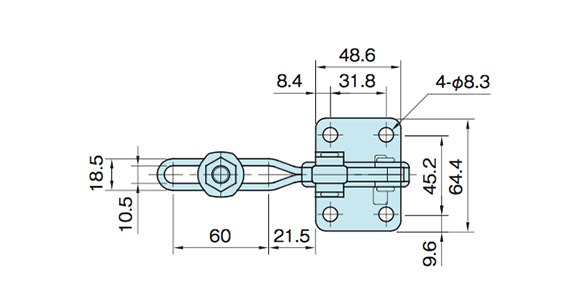

Dimensional drawing 1
Dimensional drawing 2
| Main Body | Arm | Grip | Bolt, Nut | Pad |
|---|---|---|---|---|
| SPCC zinc plating | SPHD | Polyvinyl chloride | SUM41 | Chloroprene rubber (CR) |
