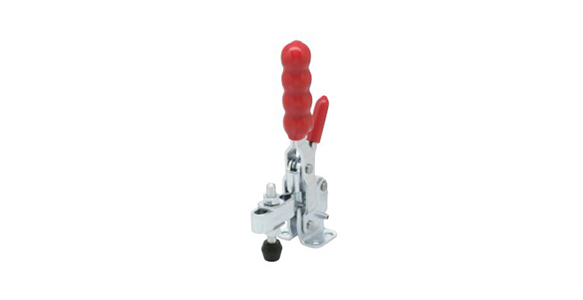

Vertical Type Toggle Clamp (with Lock Mechanism) ST-VTC207
Brand :
IMAO CORPORATION
Caution
Product Description
Tool-free clamp does not require tools (ST-VTC207).
[Features]
· With a lock mechanism for safety and security.
· Economy type.
[Applications]
· Used as a clamp for assembly, inspection, and welding jigs.
Tool-Free Clamp (ST-VTC207U-L) Features

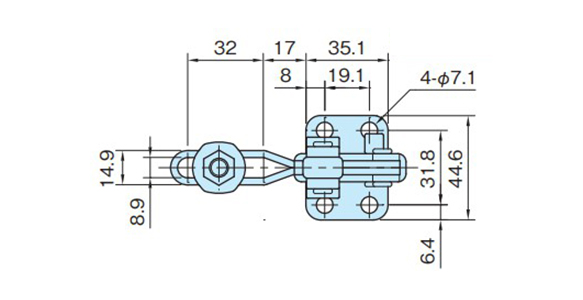

Outline drawing (ST-VTC207U-L)
Dimensional drawing 1
Dimensional drawing (with lock mechanism)
| Part Number | L | L1 | Clamping Pressure (kN) | Weight (g) |
|---|---|---|---|---|
| ST-VTC207U-L | 100 | 57.5 | 1.75 | 300 |
