Horizontal Type Toggle Clamp with Lock Mechanism (ST-H305)
Brand :
IMAO CORPORATION
Caution
Product Description
Cost effective horizontal-type toggle clamp (with lock mechanism).
[Features]
· More affordable than other products.
· Available with lock mechanism
[Applications]
· As a clamp for assembly, inspection and welding jigs.
Push Type Toggle Clamp With Lock Mechanism
Main body: SPCC, Grip: polyvinyl chloride, Bolts/nuts: SUM41, Pad: chloroprene rubber (CR)

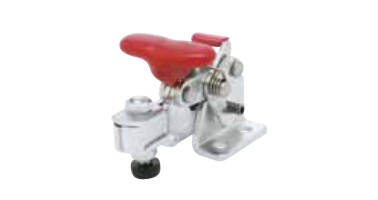

ST-H305U-L external appearance

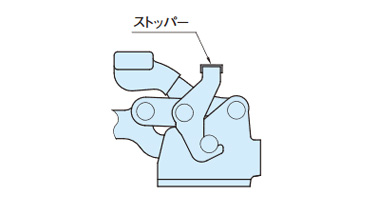

Dimensional drawing of ST-H305U-L (with lock mechanism)

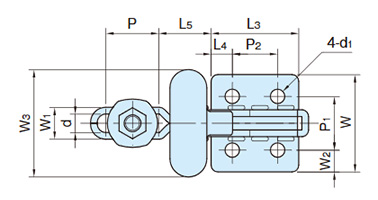

Dimensional drawing of horizontal type toggle clamp
| Part Number | M | H2 | H3 | d | P | L | H | W | L2 | L3 | T | d1 | P1 | P2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST-H305U-L | M5 | 33 | 13.5 | 5.5 | 8 | 59 | 38 | 25.4 | 30 | 26.1 | 2 | 4.5 | 16 | 13.5 |
| Part Number | W2 | L4 | L5 | L1 | H1 | H4 | W1 | W3 | Clamping Pressure (kN) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| ST-H305U-L | 4.7 | 6.3 | 17.5 | 28 | 57 | 8 | 9.5 | 32 | 0.5 | 70 |
