Horizontal Type Toggle Clamp (with Lock Function) ST-H225
Brand :
IMAO CORPORATION
Caution
Product Description
Tool-free clamp does not require tools (ST-H225).
[Features]
· With a lock mechanism for safety and security.
· Economy type.
[Applications]
· Used as a clamp for assembly, inspection, and welding jigs.
Tool-Free Clamp (ST-H225) Features

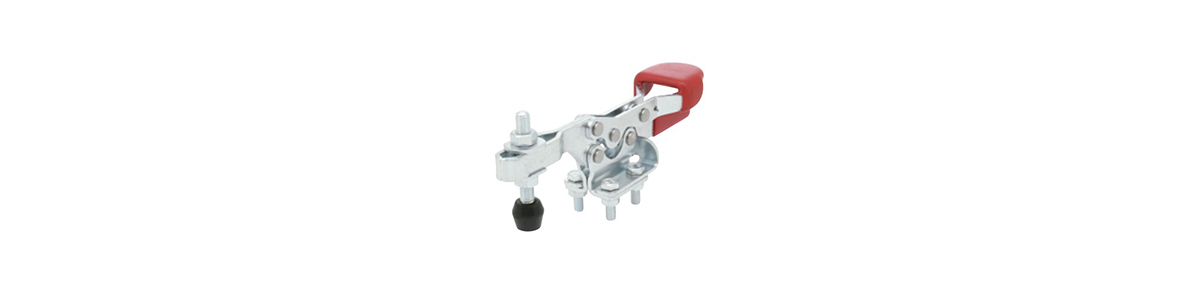

Outline drawing (ST-H225)

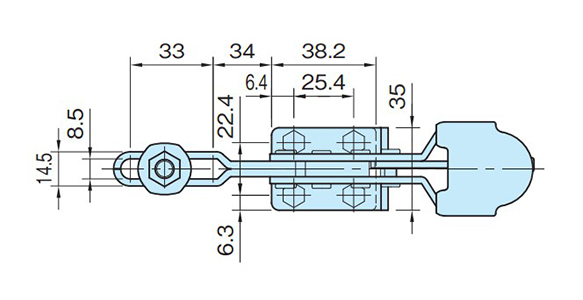

Dimensional drawing 1

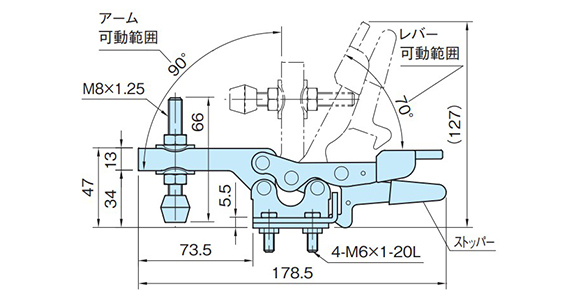

Dimensional drawing 2
| Main Body | Grip | Bolt, Nut | Pad |
|---|---|---|---|
| SPCC Zinc plating | Polyvinyl chloride | SUM41 | Chloroprene rubber (CR) |
| Part Number | Clamping Pressure (kN) | Weight (g) |
|---|---|---|
| ST-H225U-L | 2.25 | 315 |
