TP Tapping Screw (Class 2 Type B-1 with Groove)
Brand :
SUNCO
Caution

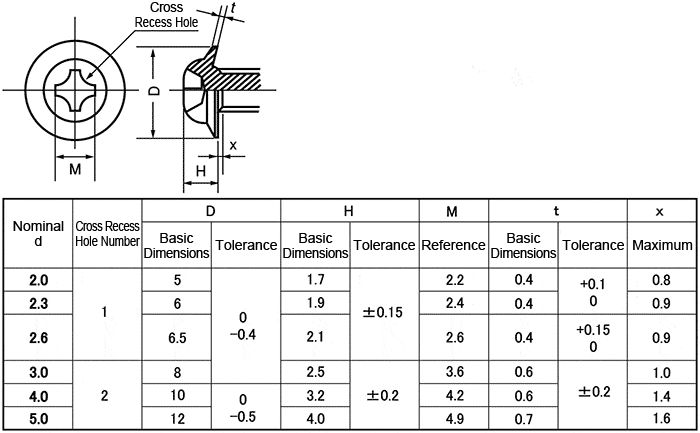

- This product image is a representative image. For details, please see the product standard.
Product Description
[Thread ridge type] Self-tapping Screws
[Detailed shape] Pan
[Mounting hole dimensions] Phillips
[Basic shape] Standard (Round)
[Materials] Steel
[Tip shape] Other Specials
[Shape]
[Additional shapes] With a flange
[Sales unit] Box/package
[Application] Standard
[Nominal Thread (M)] 2 2.3 2.6 3 4 5
[Length L (mm)] 5 6 8 10 12 14 16 18 20 25
[Surface treatment] None, Trivalent chromate, Trivalent black, Trivalent white, Bright chromate plating, Chromate plating, Black chromate, Nickel plating
