Solenoid Lock LE-30-10
Caution
Product Description
A solenoid-type electric lock (locks when energized) that gets locked when the power supply is turned on.
[Features]
· An emergency unlocking mechanism can be installed.
· Latch mechanism (automatic locking type).
· For both front and back surface mounting (Remove cover before front-surface mounting).
· Includes protective cover (removable).
· Includes a dedicated emergency unlocking device and a locking/unlocking check switch.
[Applications]
· For pass boxes and various cases.
Emergency Unlocking Mechanism Can Be Installed
Product mass: 740 g
Rated voltage: 24 V DC ±5%
Power consumption: 9.5 W
Current consumption: 396 mA
Conduction ratio: 100% (continuous rating)
Solenoid type electric lock that unlocks when powered ON (energized unlocking type)
Latch retraction force (when horizontal): 2.94 N
Latch extension force (when horizontal): 3.72 N
Lock for emergency unlocking: T750
Check switch rating (resistive load) 125 V AC, 1A / 30 V DC, 0.5 A
Ambient operating temperature: -5 to +40°C (no freezing)
Ambient operating humidity: 85% RH or below (non condensing)

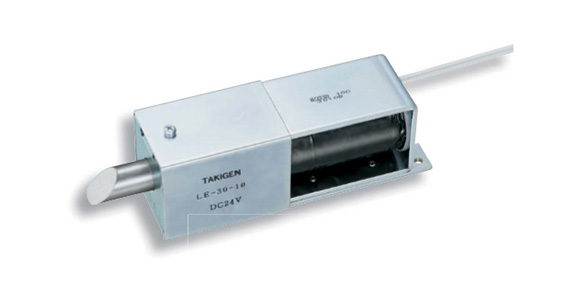

LE-30-10 external appearance
LE-30-10-ES external appearance
Key No. T750 external appearance
LE-30-10-E/ES application example
Solenoid Lock dimensional drawing
| Product No. | Remarks |
|---|---|
| LE-30-10 | Main body only |
| LE-30-10-E | With emergency unlocking device |
| LE-30-10-S | With locking/unlocking check switch |
| LE-30-10-ES | With emergency unlocking device, with locking/unlocking check switch |
