Lock, Stainless Steel Dial Padlock C-1556
Caution
Product Description
A dial-type padlock made of stainless steel.
[Features]
· To unlock, move the combination dial so that it matches the 4 digit PIN.
· Any PIN can be set.
· There are 10,000 possible PIN setting combinations.
· The PIN can only be changed with the dedicated change key (C-1556-K) so the PIN cannot be accidentally changed during normal operation.
· Includes dedicated rubber cap.
· This prevents foreign objects from entering the dial.
[Applications]
· Fences, gates and inspection doors.
10,000 Different Code Numbers Can Be Configured

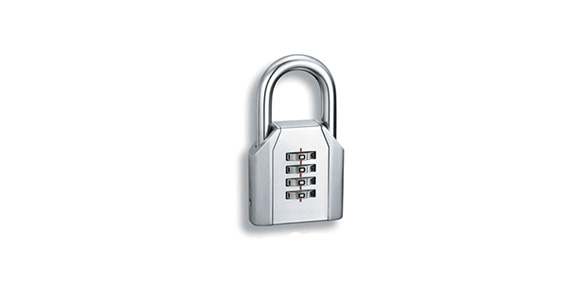

C-1556-60 external appearance

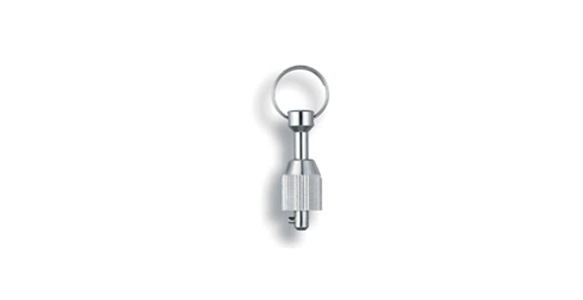

C-1556-K external appearance
Key application example
C1555 application example
| Product No. | Product Mass (g) | L |
|---|---|---|
| C-1556-60 | 491 | 42 |
| C-1556-60-L | 525 | 70 |
| C-1556-60-RC | 12 |   |
| C-1556-K | 13 |   |

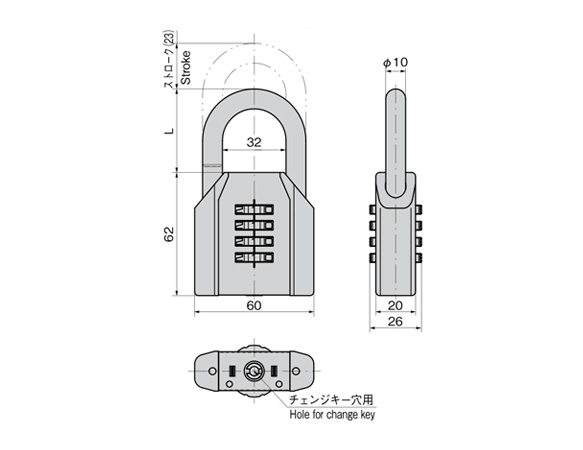

C-1556-60/C-1556-60-L padlock main body
Materials: Main body; stainless-steel casting (SUS304)
Hanger; stainless-steel rod (SUS304)
Internal shaft; stainless-steel rod (SUS303)
Surface finish: Main body; hairline finish
Hanger; barrel polishing
C-1556-K change key
Materials: free cutting brass bar (C3604BD)
Surface finish: nickel plating (MBNi)

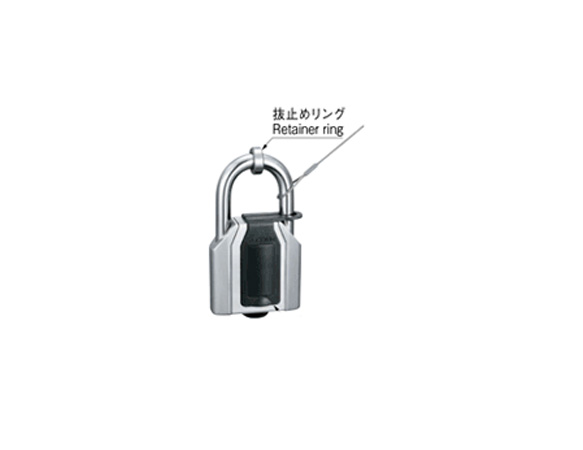

C-1556-RC rubber cap
Materials: ethylene-propylene rubber (EPDM)
