Sealing Bolt (C-1207 /Stainless Steel)
Brand :
TAKIGEN
Caution
Product Description
Butterfly screw tightening bolt and metal fittings.
[Features]
· Wing nut tightens the door of a case so that full airtightness can be achieved.
· Materials: Cold rolled stainless steel plate (SUS304).
· Surface finish: Bead shot treatment.
[Applications]
· Outdoor control panels and power distribution boards, equipment for ships.
Bolt For Firmly Tightening Doors

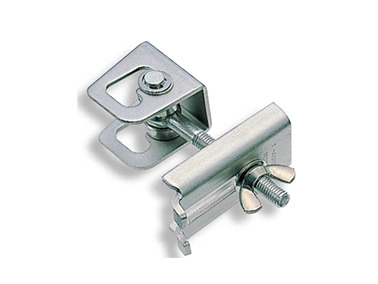

C-1207-1 external appearance

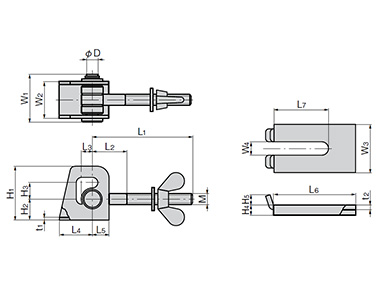

C-1207-1 dimensional drawing

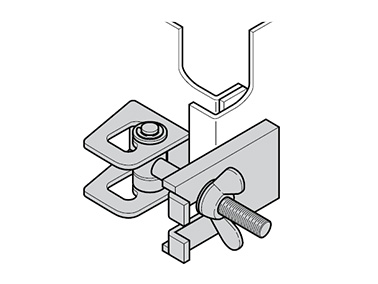

C-1207-1 example of application (Installation on the case and door should be welded. Airtightness between the case and door can be adjusted with the wing nut.)
| Product No. SUS304 | L1 | L2 | L3 | L4 | L5 | L6 | L7 | W1 | W2 | W3 | W4 | H1 | H2 | H3 | H4 | H5 | SUS304 | SPCC | øD | M | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| t1 | t2 | t1 | t2 | |||||||||||||||||||
| C-1207-1 | 90 | 30 | 10 | 30 | 15 | 75 | 50 | 45 | 35 | 45 | 12 | 50 | 20 | 17 | 14 | 10 | 3 | 4 | 3 | 4 | 10 | M10 |
| C-1207-2 | 80 | 25 | 8 | 25 | 13 | 60 | 40 | 37.5 | 30 | 40 | 10 | 40 | 15 | 14 | 12 | 8 | 2 | 3 | 2.3 | 4 | 8 | M8 |
| C-1207-3 | 75 | 20 | 6 | 20 | 10 | 50 | 30 | 31.5 | 25 | 35 | 8 | 32 | 12 | 11 | 10 | 8 | 2 | 3 | 2.3 | 3.2 | 6 | M6 |
Open Door Method

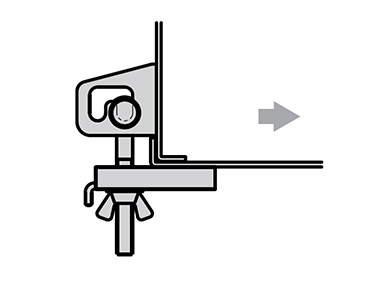

Close door status

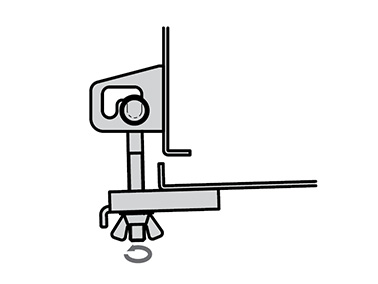

Close wing nut

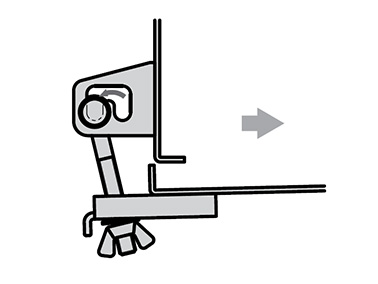

Slide bolt root to the outside

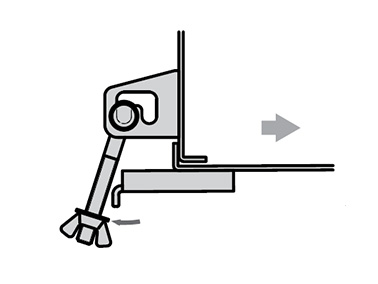

Remove bolt

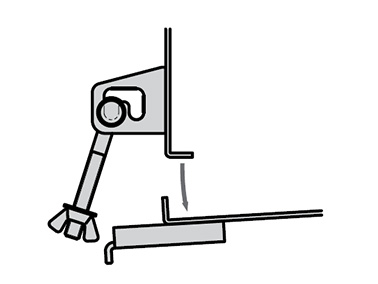

Open door
