Single-Action Stay for Stainless Steel Canopy, B-1460
Caution
Product Description
A stay that fixes the door in place by stopper action when it is opened.
[Features]
· Opening the cover actuates the stopper and the cover is secured.
· Slightly lifting the cover releases the stopper, closing the cover.
· Equipped with a safety device to prevent the cover from accidentally closing.
· Stainless steel construction with excellent corrosion-resistance.
· B-1460-2 to 4 can be used for either left-handed or right-handed use.
· When installing, the top and bottom side will be reversed (the model B-1460-1 has separate left and right versions).
[Applications]
· Large inspection doors, ships, vehicles, kitchen equipment, outdoor equipment.
Stopper Made From Stainless Steel For Excellent Corrosion Resistance

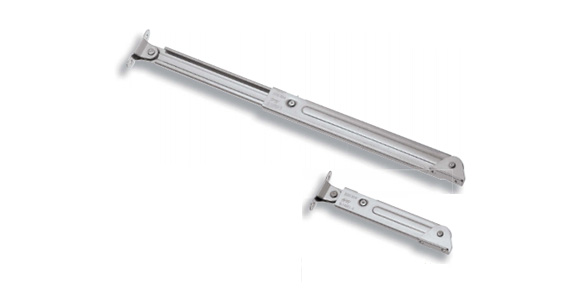

B-1460-1-L, B-1460-4 external appearance

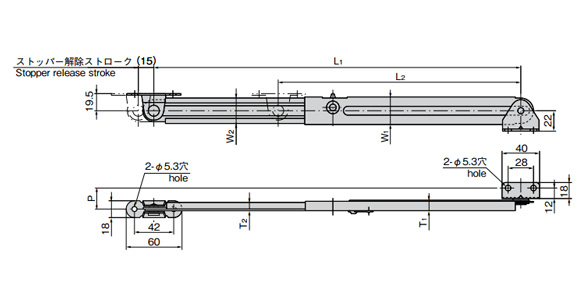

B-1460 dimensional drawing
Reference Operation Example, Reference Application Example

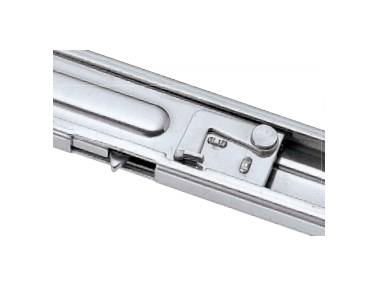

Safety equipment external appearance

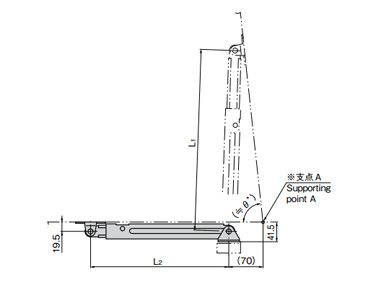

B-1460 reference operation example*Pivot point A cover opening pivot point; the angle differs depending on this pivot point.

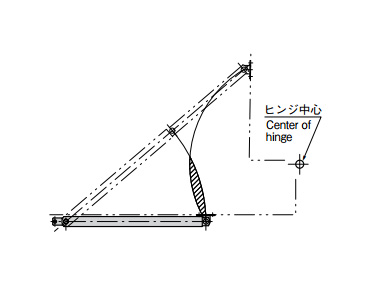

B-1460 reference application example(Hatched area is subtracted from the minimum value. Depending on the hinge center position, the stay trajectory may be less than the stay minimum value. Verification of design is required.)
| Product No. | Remarks Remarks | L1 | L2 | W1 | W2 | T1 | T2 | P | (≒ θ°) | Product Mass (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| B-1460-1-L | Left type | 400 | 265 | 30 | 27 | 12 | 9 | 24 | 360 | |
| B-1460-1-R | Right type | |||||||||
| B-1460-2 | Left and right type (both type) | 350 | 265 | 30 | 27 | 12 | 9 | 24 | 84 | 330 |
| B-1460-3 | Left and right type (both type) | 300 | 215 | 30 | 27 | 12 | 9 | 24 | 83 | 290 |
| B-1460-4 | Left and right type (both type) | 200 | 165 | 29 | 26 | 11 | 8 | 22 | 190 |
