Super Magnetic Catch (Horizontal Type) C-100-B
Brand :
TAKIGEN
Caution
Product Description
Standard-type magnetic catch.
[Features]
· Built-in spring for cushioning.
· Materials: Magnet / Ba-ferrite (anisotropic); Case / aluminum alloy plate (A1050P); Strike plate / cold rolled steel plate (SPCC).
· Surface finish: Case / anodized treatment (gold); Strike plate / nickel plating (MFNi).
· Holding force: C-100-B-1: 68 N, C-100-B-2: 39 N.
[Applications]
· For power distribution boards, machine tools.
Built-In Spring For Cushioning

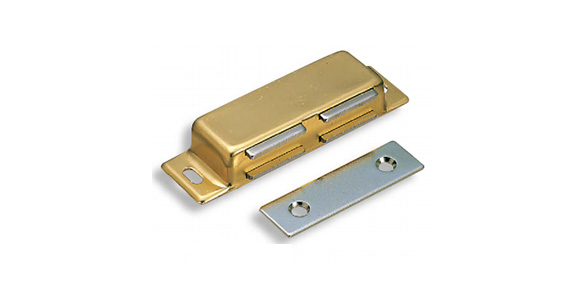

C-100-B-1 external appearance

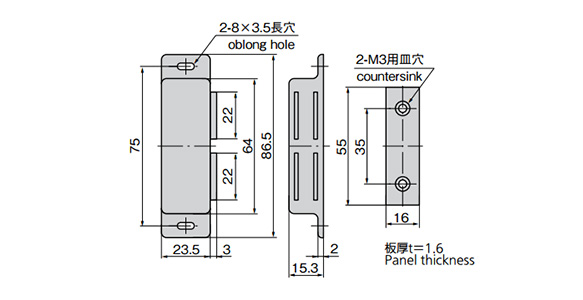

C-100-B-1 dimensional drawing

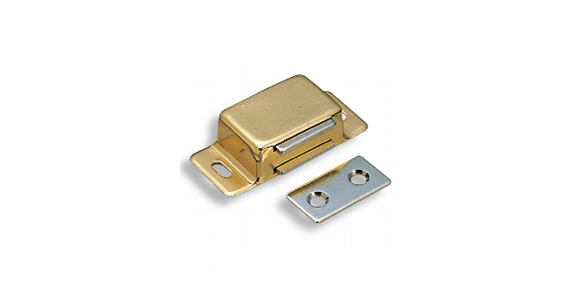

C-100-B-2 external appearance

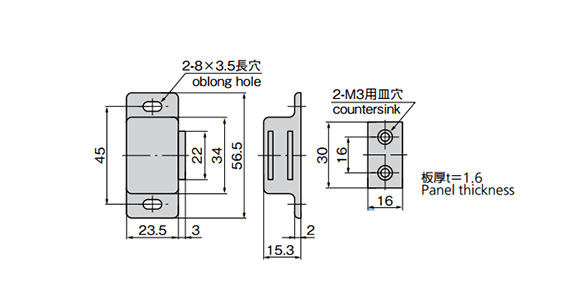

C-100-B-2 dimensional drawing
