Rigid PVC Handle (AP-566 / Plastic)
Caution
Product Description
A general-purpose resin handle.
[Features]
· AP-566-1: Compatible with SESC (6.9) and maximum load of 9.8 N.
· AP-566-2: Compatible with SESC (6.9) and maximum load of 9.8 N.
· Made from PVC (lead-free) for its chemical resistance.
· Can be PVC welded or screw fastened.
· Flat external appearance due to lesser protrusions.
· Excellent usability due to large opening.
[Applications]
· Suitable for semiconductor and FPD manufacturing installations.
Compatible With Both PVC Welding And Screw Fastening

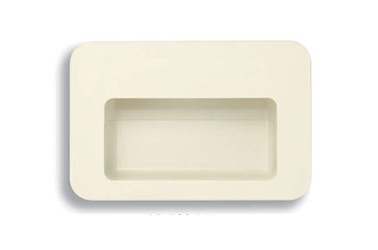

AP-566-1-Ivory external appearance

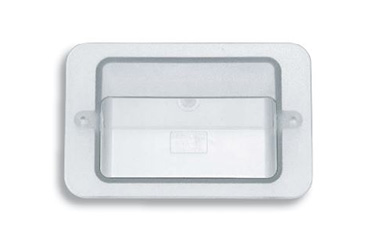

AP-566-1-Clear external appearance
Reference cross-sectional drawing (length of finger hook)

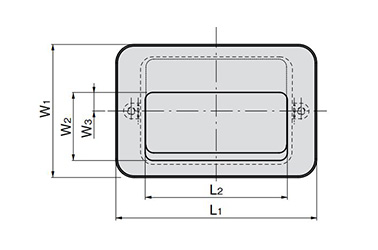

AP-566-1, AP-566-2 dimensional drawing A
AP-566-1, AP-566-2 dimensional drawing B
AP-566-1, AP-566-2 dimensional drawing C

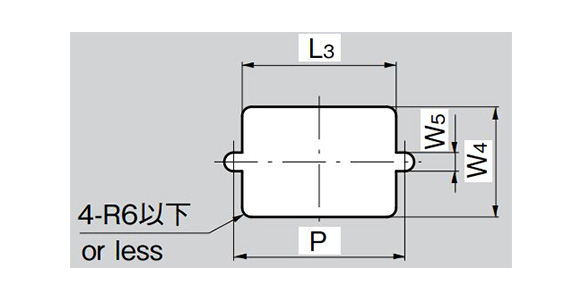

Panel hole drilling when mounting from the panel surface (screw fastening)

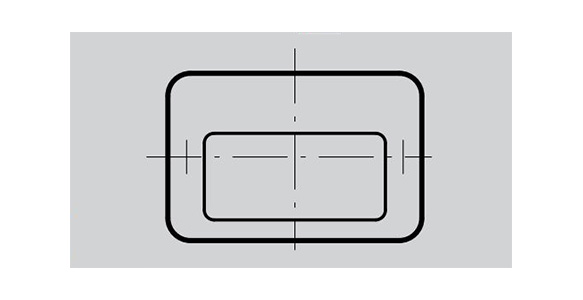

Front panel surface mounting method

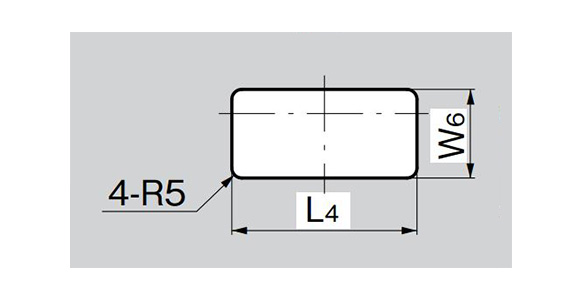

Panel hole drilling when mounting from the panel underside (or for adhesive welding)

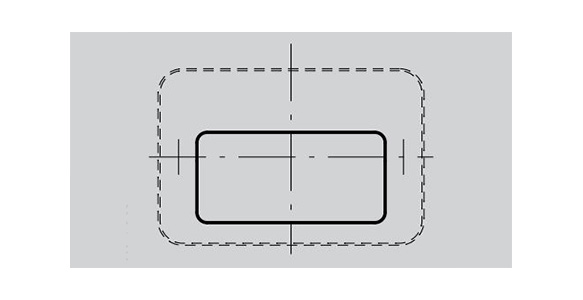

Panel underside mounting method
| Product No. | L1 | L2 | L3 | L4 | L5 | (L6) | W1 | W2 | W3 | W4 | W5 | W6 | H | P | (d) | M | Product Mass (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AP-566-1-Clear | 130 | 92 | 99 | 92 | 10 | 21 | 86 | 44 | 12 | 71 | 12 | 44 | 28 | 110 | 25 | M5 | 98 |
| AP-566-1-ivory | 130 | 92 | 99 | 92 | 10 | 86 | 44 | 12 | 71 | 12 | 44 | 28 | 110 | M5 | 98 | ||
| AP-566-2-Clear | 118 | 91 | 95 | 91 | 12 | 19 | 58 | 26 | 3.5 | 48 | 11 | 26 | 21.5 | 104 | 19 | M4 | 44 |
| AP-566-2-ivory | 118 | 91 | 95 | 91 | 12 | 58 | 26 | 3.5 | 48 | 11 | 26 | 21.5 | 104 | M4 | 44 |
Materials: vinyl chloride resin (PVC)
Standard color: clear, ivory
Accessories: fixed washer / mounting screws (stainless-steel)
Applicable plate thickness: 1.0 to 8.0 mm (when mounting from the panel side)
