Sash Hinges for Heavy-Duty Use (B-1002 / Stainless Steel)
Brand :
TAKIGEN
Caution
Product Description
A hinge for frames.
[Features]
· Stainless steel construction with excellent corrosion-resistance.
· Flat and parallel types, with and without holes, are available.
· Product weight: 125 g.
· Materials: Stainless steel plate (SUS304).
· Surface finish: Brushed finish.
[Applications]
· Frames, control panels, various equipment doors.
Stainless-Steel Construction With Excellent Corrosion Resistance

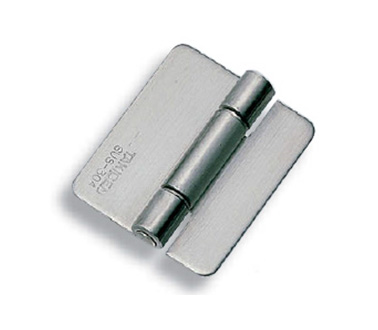

B-1002-A-1 external appearance

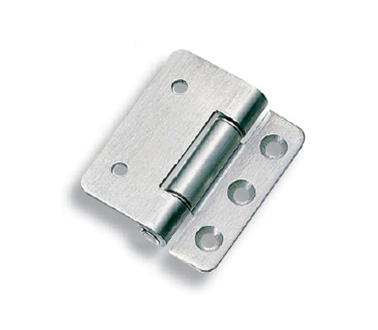

B-1002-B-11 external appearance
B-1002 series dimensional drawing
| Product No. | Remarks | Reference Values | |
|---|---|---|---|
| Door Height × Door Width | Door Mass (kg) | ||
| B-1002-A-11 | With hole butt-type | 500 × 250 | 54 |
| B-1002-A-1 | Without hole butt-type | 500 × 250 | 54 |
| B-1002-B-11 | With hole parallel-type | 500 × 250 | 54 |
| B-1002-B-1 | Without hole parallel-type | 500 × 250 | 54 |
