E2E Small-Diameter Proximity Sensor
Brand :
OMRON
Caution
Product Description
Even though it is an ultra-compact proximity sensor, the installation is surprisingly "easy."
[Features]
· High-speed response frequency of Max. 5 kHz for stable detection of moving workpieces.
· Number of indicator lights is 4, allowing their easy positioning.
· Standard cord 5 m and robot (flex-resistant) cord type are also available.
Dimensional Drawing of OMRON Proximity Sensors
Pull-Out Cord Type OMRON Proximity Sensors (Shielded Type)

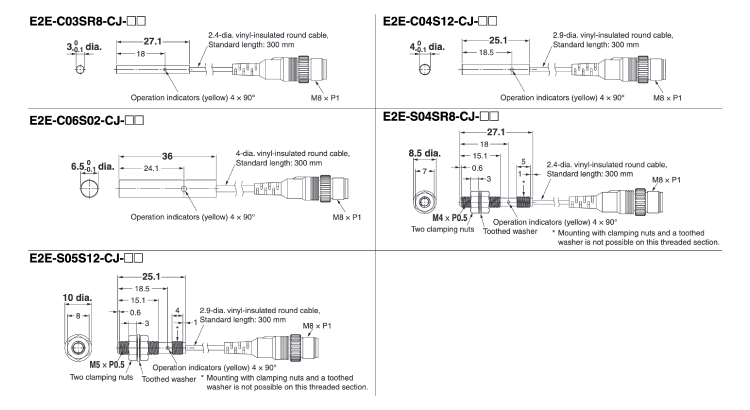

M8 Connector Relay Type OMRON Proximity Sensors (0.3m) (Shielded Type)
M8 Connector Type OMRON Proximity Sensors (Shielded Type)
Pre-Wired Type OMRON Proximity Sensors (Non-Shielded Type)
Specification Table of OMRON Proximity Sensors
OMRON Proximity Sensors Ratings/Performance
| Proximity Sensors item | Proximity Sensors format | |||||
|---|---|---|---|---|---|---|
| Model E2E-C03SR8□ | Model E2E-C03N02□ | Model E2E-C04S12□ | Model E2E-C04N03□ | Model E2E-C05S01□ | ||
| size | φ3 | φ4 | φ5.4 | |||
| shield | shield | Unshielded | shield | Unshielded | shield | |
| Detection distance (at 23°C) | 0.8mm±10% | 2mm±10% | 1.2mm±10% | 3mm±10% | 1mm±10% | |
| Set distance *1 (detection distance x 0.7) | 0 to 0.56 mm | 0 to 1.4 mm | 0 to 0.84 mm | 0 to 2.1 mm | 0 to 0.7 mm | |
| Hysteresis | 15% or less of detection distance | |||||
| Detectable Objects | Magnetic metals (The detection distance decreases for non-magnetic metals. See page 7 of the digital catalog for "Characteristics Data") | |||||
| Standard detection object | Iron 3×3×1mm | Iron 6×6×1mm | Iron 4×4×1mm | Iron 9×9×1mm | Iron 5.4 x 5.4 x 1 mm | |
| Response frequency *2 | 5kHz | 3.5kHz | 4kHz | 2kHz | 4kHz | |
| Power supply voltage (operating voltage range) *3 | DC10 to 30V (including ripple (pp) 10%) | |||||
| Current consumption | 10mA or less | |||||
| Control output *4 | Opening and closing capacity | Open collector 50mA or less | Open collector 100mA or less | |||
| Residual voltage | 2V or less *5 | |||||
| Indicator Light | Operation indicator: Yellow (compliant with European standard EN60947-5-2) lights up when outputting. | |||||
| Operational Mode | C1/C2: NPN type (negative common), B1/B2: PNP type (positive common) C1/B1 type: NO (ON when approaching), C2/B2 type: NC (ON when away) | |||||
| Protection Circuit | Power supply reverse connection protection, surge absorption, load short circuit protection, output reverse connection protection | |||||
| Ambient Temperature Range | During operation and storage: -25 to +70°C (but do not freeze or condense) | |||||
| Ambient Humidity Range | During operation and storage: 35 to 95% RH (but no condensation) | |||||
| Temperature effects | Within ±15% of detection distance at +23°C within the temperature range of -25 to +70°C | |||||
| Voltage effect | Within ±15% of the rated power supply voltage, within ±2.5% of the detection distance at the rated power supply voltage | |||||
| Insulation resistance | 50MΩ or more (DC500V megger) between live parts and case | |||||
| Withstand voltage | AC500V 50/60Hz 1min Between live parts and case | |||||
| Vibration (durability) | 10-55Hz double amplitude 1.5mm X, Y, Z 2 hours each direction | |||||
| Impact (durability) | 500m/s210 times each in X, Y, and Z directions | |||||
| Protective structure | IEC standard IP67, Omron in-house standard oil resistance *6 | |||||
| Connection method | Cord pull-out type Proximity Sensors | can be | can be | can be | ||
| M8 connector relay type Proximity Sensors | can be | can be | none | |||
| M8 connector type | none | can be | none | |||
| Weight (packaged ) | Cord pull-out type | Approx. 25g | Approx. 30g | Approx. 35g | Approx. 35g | Approx. 35g |
| M8 connector relay type | Approx. 20g | Approx. 20g | Approx. 15g | Approx. 20g | - | |
| M8 connector type | - | - | Approx. 10g | Approx. 10g | - | |
| Material | case | SUS303 (EN1.4305) *7 | Brass, nickel plated | |||
| Detection surface | Heat-resistant ABS | |||||
| Fastening nut *8 | none | |||||
| Toothed washer *8 | none | |||||
| code | Polyvinyl chloride (PVC) | |||||
| accessories | operating instructions | can be | ||||
| Model Label | can be | |||||
| Mounting bracket | Sold separately | |||||
| Proximity Sensors item | Proximity Sensors format | ||||||
|---|---|---|---|---|---|---|---|
| Model E2E-C06S02□ | Model E2E-C06N04□ | Model E2E-S04SR8□ | Model E2E-S04N02□ | Model E2E-S05S12□ | Model E2E-S05N03□ | ||
| size | φ6.5 | M4 | M5 | ||||
| shield | shield | Unshielded | shield | Unshielded | shield | Unshielded | |
| Detection distance (at 23°C) | 2mm±10% | 4mm±10% | 0.8mm±10% | 2mm±10% | 1.2mm±10% | 3mm±10% | |
| Set distance *1 (detection distance x 0.7) | 0 to 1.4 mm | 0 to 2.8 mm | 0 to 0.56 mm | 0 to 1.4 mm | 0 to 0.84 mm | 0 to 2.1 mm | |
| Hysteresis | 15% or less of detection distance | ||||||
| Detectable Objects | Magnetic metals (The detection distance decreases for non-magnetic metals. See page 7 of the digital catalog for "Characteristics Data") | ||||||
| Standard detection object | Iron 6.5 x 6.5 x 1 mm | Iron 12 x 12 x 1 mm | Iron 3×3×1mm | Iron 6×6×1mm | Iron 4×4×1mm | Iron 9×9×1mm | |
| Response frequency *2 | 3kHz | 3kHz | 5kHz | 3.5kHz | 4kHz | 2kHz | |
| Power supply voltage (operating voltage range) *3 | DC10 to 30V (including ripple (pp) 10%) | ||||||
| Current consumption | 10mA or less | ||||||
| Control output *4 | Opening and closing capacity | Open collector 200mA or less (60 to 70℃: 100mA) | Open collector 50mA or less | Open collector 100mA or less | |||
| Residual voltage | 2V or less *5 | ||||||
| Indicator Light | Operation indicator: Yellow (compliant with European standard EN60947-5-2) lights up when outputting. | ||||||
| Operational Mode | C1/C2: NPN type (negative common), B1/B2: PNP type (positive common) C1/B1 type: NO (ON when approaching), C2/B2 type: NC (ON when away) | ||||||
| Protection Circuit Proximity Sensors | Power supply reverse connection protection, surge absorption, load short circuit protection, output reverse connection protection | ||||||
| Ambient Temperature Range | During operation and storage: -25 to +70°C (but do not freeze or condense) | ||||||
| Ambient Humidity Range | During operation and storage: 35 to 95% RH (but no condensation) | ||||||
| Temperature effects | Within ±15% of detection distance at +23°C within the temperature range of -25 to +70°C | ||||||
| Voltage effect | Within ±15% of the rated power supply voltage, within ±2.5% of the detection distance at the rated power supply voltage | ||||||
| Insulation resistance | 50MΩ or more (DC500V megger) between live parts and case | ||||||
| Withstand voltage | AC500V 50/60Hz 1min Between live parts and case | ||||||
| Vibration (durability) | 10-55Hz double amplitude 1.5mm X, Y, Z 2 hours each direction | ||||||
| Impact (durability) | 500m/s210 times each in X, Y, and Z directions | ||||||
| Protective structure | IEC standard IP67, Omron in-house standard oil resistance *6 | ||||||
| Connection method | Cord pull-out type | can be | can be | can be | |||
| M8 connector relay type | can be | can be | can be | ||||
| M8 connector type | can be | none | can be | ||||
| Weight (packaged ) | Cord pull-out type | Approx. 55g | Approx. 55g | Approx. 30g | Approx. 30g | Approx. 35g | Approx. 40g |
| M8 connector relay type | Approx. 20g | Approx. 25g | Approx. 20g | Approx. 20g | Approx. 20g | Approx. 20g | |
| M8 connector type | Approx. 10g | Approx. 15g | - | - | Approx. 15g | Approx. 15g | |
| Proximity Sensors Material | case | SUS303 (EN1.4305) *7 | |||||
| Detection surface | Heat-resistant ABS | ||||||
| Fastening nut *8 | none | SUS430 (EN1.4016) *7 | |||||
| Toothed washer *8 | none | SUS430 (EN1.4016) *7 | |||||
| code | Polyvinyl chloride (PVC) | ||||||
| accessories | operating instructions | can be | |||||
| Model Label | can be | ||||||
| Mounting bracket | Sold separately | ||||||
*1.Using Proximity Sensors within the set distance will provide high-speed response and more stable repeatability.
*2.The response frequency is the average value.
*3.Using a 12V power supply will provide more stable repeatability because it is less susceptible to internal self-heating.
*4.A control output of 20mA or less will provide more stable repeatability because it is less susceptible to internal self-heating.
*5.φ3, M4: Load current 50mA, when the cord length is
2mφ4, φ5.4, M5: Load current 100mA, when the cord length is 2mφ6.5
: Load current 200mA when the cord length is 2m
*6.Omron's in-house oil resistance standard: Performance against non-soluble oil. (Test conditions are shown in the figure below)
*7.Material name of the Proximity Sensors EN standard.
*8.Two tightening nuts, one toothed washer.
Oil resistance test condition of Proximity Sensors
After the test time has elapsed, we have confirmed that there are no problems with the following characteristics:
(1) Appearance (no damage that affects product characteristics)
(2) Proximity Sensors Operation check (ON/OFF)
(3) Proximity Sensors Insulation resistance (50MΩ or more, 500VDC megger)
(4) Withstand voltage (AC500V for 1 minute)
(5) Water resistance (IP67)
(1) Appearance (no damage that affects product characteristics)
(2) Proximity Sensors Operation check (ON/OFF)
(3) Proximity Sensors Insulation resistance (50MΩ or more, 500VDC megger)
(4) Withstand voltage (AC500V for 1 minute)
(5) Water resistance (IP67)
OMRON Proximity Sensors
E2E (Small-diameter) Data Sheet for Proximity Sensors
