Partially Threaded Small Hex Bolt
Brand :
SUNCO
Caution

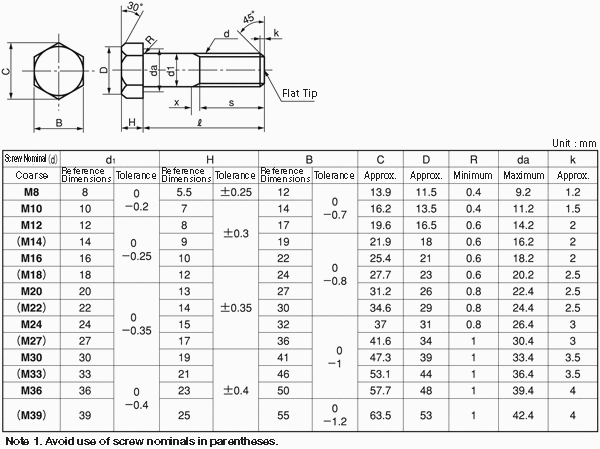

- This product image is a representative image. For details, see the product standard.
Product Description
[Detailed shape] Small Dia.
[Mounting hole dimensions] None
[Materials] Equivalent to SWCH
[Thread ridge type] Metric coarse
[Additional shapes] Standard
[Application] Standard
[Nominal Thread (M)] 8 10 12
[Length L (mm)] 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 150
[Surface treatment] Trivalent chromate, trivalent black, trivalent white, bright chromate plating, chromate plating, nickel plating
[Sales unit] Boxes/packs available individually from quantities of 1, Threading
[Length (mm)] 22 25 26 30
