Phillips Flat Head Screw
Brand :
SUNCO
Caution

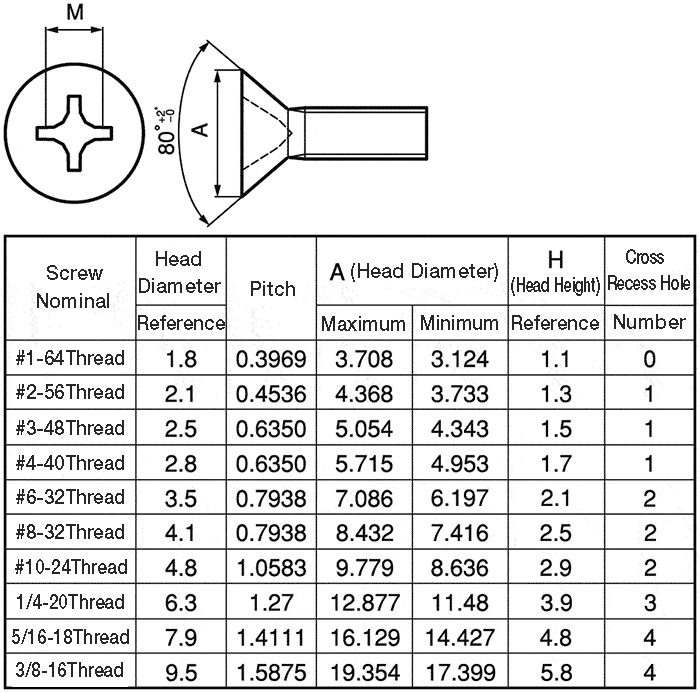

- This is a representative image. Please see the product standards for details.
Product Description
[Detailed shape] Disc
[Thread ridge type] Unified coarse threads UNC
[Mounting hole dimensions] Phillips
[Materials] Equivalent to SUS304
[Surface treatment] None
[Tip shape] Flat End
[Application] Standard
[Nominal Thread (inch)] NO. 2 NO. 3 NO. 4 NO. 5 NO. 6 NO. 8 NO. 10 NO. 12 1/4 5/16 3/8 Length L (inches) 1/8 3/16 1/4 5/16 3/8 7/16 1/2 5/8 3/4 7/8 1 1 1/8 1 1/4 1 1/2 1 3/4 2 2 1/4 2 1/2 2 3/4 3 3 1/2 4
[Sales unit] Minimum Quantity (Available for Purchase from 1 pc) Box and Pkg.
