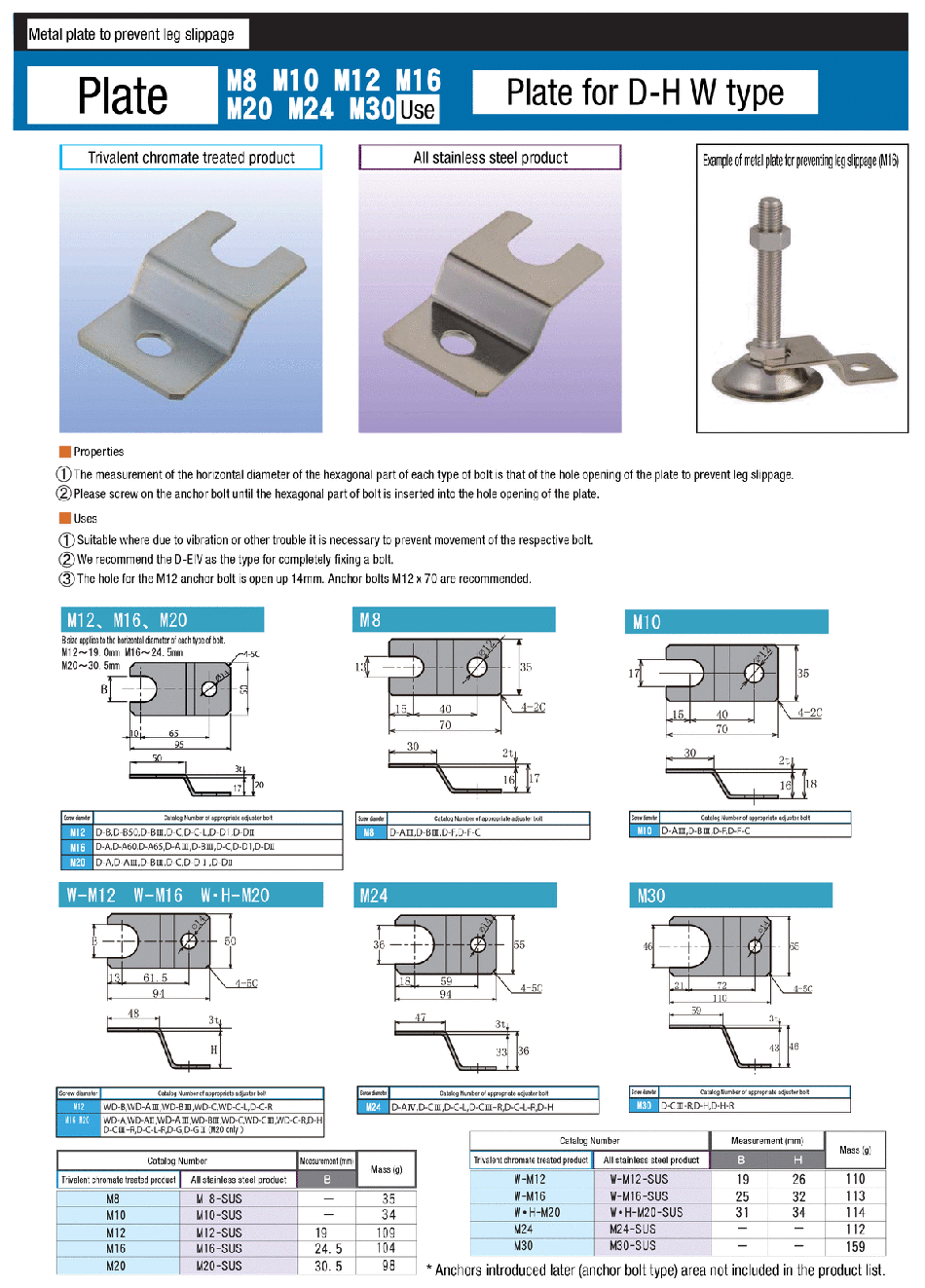

Plate for Adjuster Leg Stopper Bracket D-H/W Types

Standard General Type Anchor Plate for Lateral Shift Prevention
[Features]
· The leg anchor-fitting opening is available in different sizes matching the flat diameter of the hexagon of the various bolts.
· Push in until the bracket opening part makes contact with the hexagonal part of the bolt and tighten with an anchor bolt.
[Applications]
· Suitable for preventing adjustment bolts from moving due to vibration or other trouble.
· D-EIV is the preferred type for fully securing bolts.
· A 14 millimeter hole is provided for anchor bolt M12.
· Anchor bolt M12 × 70 is recommended.
